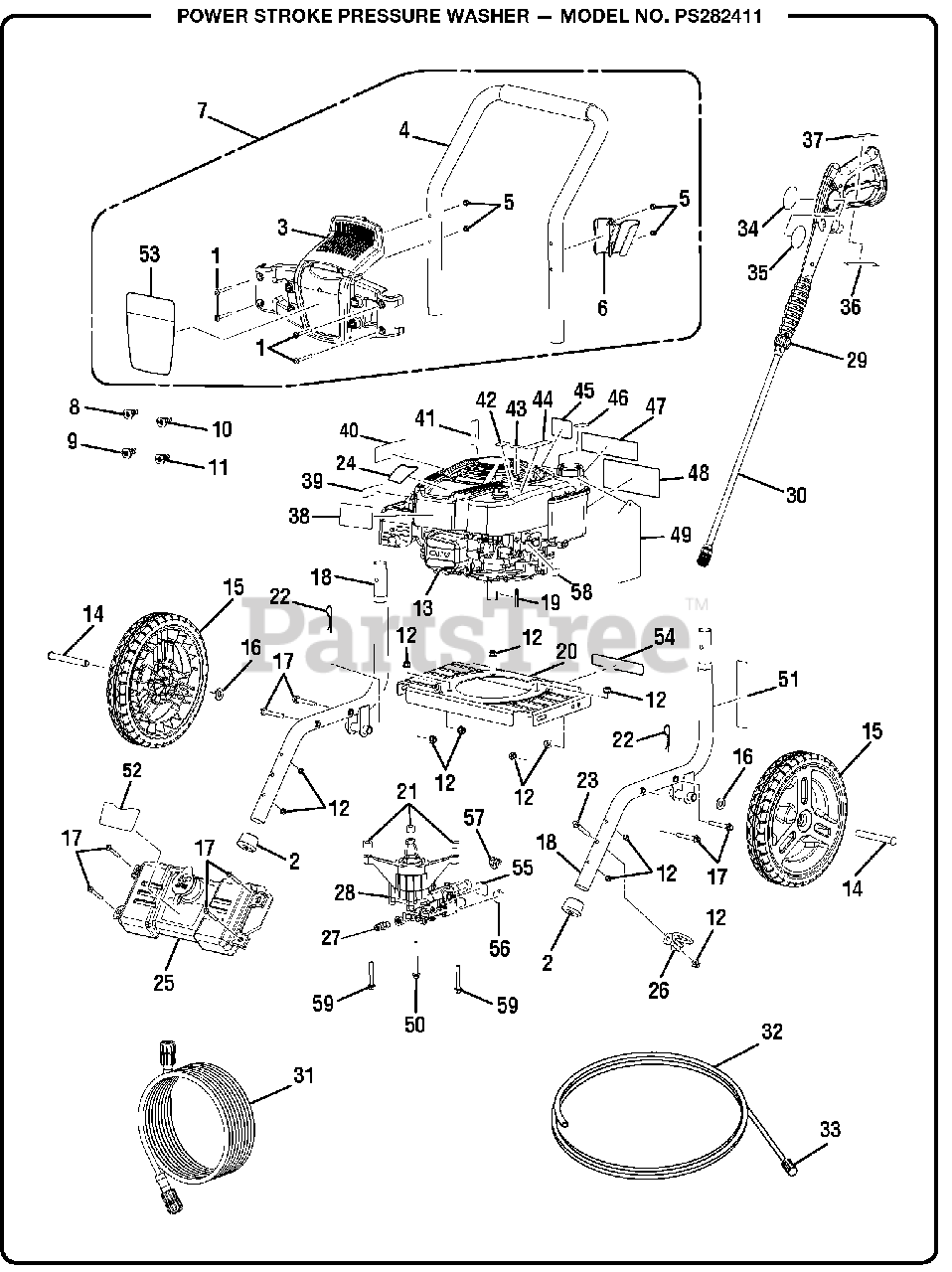

PS 282411 - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

2

Homelite 561307004

Rubber Foot

$

$

Not available

3

Homelite 310673006

Hose and Nozzle Holder Assembly

$

$

Not available

4

Homelite 308638022

Handle w/Foam

$18.99

$

Usually ships in 3-7 days

0

5

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310656008

Handle Assembly

Note: (Incl. Key Nos. 1, 3-6, and 53)

$

$

Currently unavailable

8

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 308706006

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

11

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Engine

$

$

Not available

14

Homelite 620599007

Axle

Note: NOTE A: One World Technologies, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer’s warranty. Consult the accompanying engine manual or contact our service department for assistance.

$2.49

$

In Stock, only 2 left!

0

15

Homelite 308451019

Wheel

$

$

Not available

16

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 6690962001

Bolt (M8 x 55 mm, Flange Hd.)

$

$

Currently unavailable

18

Homelite 308471032

Main Frame Assembly

$

$

Not available

19

Homelite 678041003

Output Shaft Key (3/16 in. x 40 mm)
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638662017

Engine Plate

$

$

Not available

21

Homelite 638806001

Spacers

$

$

Not available

22

Homelite 678899001

Axle Retainer Ring

$

$

Not available

23

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940608008

Briggs and Stratton Label

$

$

Currently unavailable

25

Homelite 310658005

Soap Tank with Cap

$

$

Not available

26

Homelite 678243007

Wand Holder Loop
(Superseded to 678243005)

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653009

Pump
(Superseded to 308653058)

$185.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 308907005

Hose (25 ft., 3000 psi)
(Superseded to 308835006)

$33.99

$

Usually ships in 3-7 days

0

32

Homelite 561399003

Chemical Siphon Tube

$1.99

$

In Stock, only 1 left!

0

33

Homelite 518391001

Chemical Siphon Filter

$1.49

$

In Stock, only 3 left!

0

34

Homelite 940786008

Label (Wand Logo)

$

$

Not available

35

Homelite 940654084

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940654089

Fr/Sp Label (Wand Warning)

$1.49

$

In Stock, only 1 left!

0

37

Homelite 940786006

Label (Wand Rating)

$

$

Not available

38

Homelite 941083001

875 Series Label

$

$

Currently unavailable

39

Homelite 940778004

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 940894001

Danger Label

$

$

Not available

41

Homelite 940871002

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940617077

Engine Quick Start Label

$

$

Not available

43

Homelite 941506001

9 Label

$

$

Not available

44

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940517007

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 940872001

No E85 Label

$

$

Not available

47

Homelite 940654088

Combustion Label

$1.49

$

In Stock, only 3 left!

0

48

Homelite 940921001

Costco Label

$

$

Not available

49

Homelite 940971055

Danger Hang tag

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 661506615

Bolt (M8 x 95 mm)

$

$

Currently unavailable

51

Homelite 940496002

Pump Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940705094

Soap Tank Label

$

$

Not available

53

Homelite 940779044

Performance Label

$

$

Not available

54

Homelite 940676003

Data Label

$

$

Currently unavailable

55

Homelite 940716004

Garden Hose Hang Tag

$

$

Not available

56

Homelite 640716005

High Pressure Hose Hang Tag

$

$

Currently unavailable

57

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

58

Homelite 940698011

8 Label

$

$

Not available

59

Homelite 661506616

Bolt (M8 x 70 mm)

$1.49

$

Usually ships in 3-7 days

0

Homelite 988000139

Operator's Manual

Note: Not Shown

$

$

Not available
