PS 344 - Shindaiwa Power Broom (SN: T74314001001 - T74314999999) THROTTLE CONTROL Parts Diagram

Power Broom

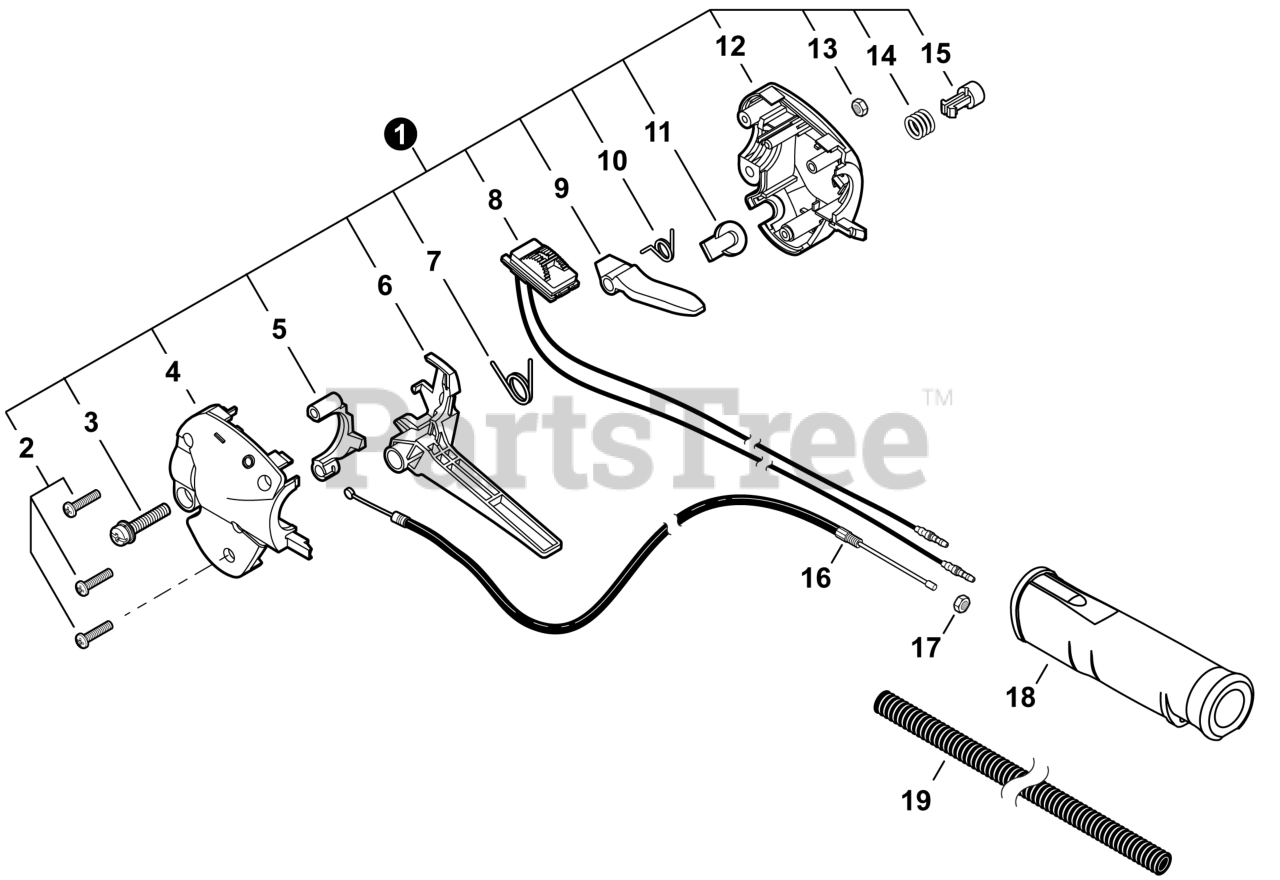

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C044001140

THROTTLE CONTROL ASSY

Note: Includes ITEMS 2-15

$95.99

$

Usually ships in 2-4 days

0

2

Echo V252000380

SCREW, TAPPING M4×20

$1.99

$

Usually ships in 2-4 days

0

3

Echo 9157505020

SCREW M5×20

$1.49

$

In Stock, only 1 left!

0

4

Echo P022025700

CONTROL HANDLE - LEFT

$24.99

$

Usually ships in 2-4 days

0

5

Echo C461000020

LOCKOUT, THROTTLE

$3.99

$

In Stock, only 2 left!

0

6

Echo C450000480

TRIGGER, THROTTLE

$9.99

$

In Stock, only 2 left!

0

7

Echo V452000700

SPRING, THROTTLE RETURN

$1.99

$

In Stock, Qty 7

0

8

Echo P022025710

SWITCH, ON-OFF

$41.99

$

Usually ships in 2-4 days

0

9

Echo C460000190

LEVER, THROTTLE LOCKOUT

$4.99

$

In Stock, Qty 13

0

10

Echo V452000500

SPRING, THROTTLE LOCKOUT

$1.99

$

In Stock, Qty 5

0

11

Echo V162000350

PLUG

$1.99

$

In Stock, only 1 left!

0

12

Echo P022025690

CONTROL HANDLE - RIGHT

$24.99

$

Usually ships in 2-4 days

0

13

Echo 9201705000

NUT M5

$1.49

$

In Stock, Qty 11

0

14

Echo V450001010

SPRING, COMPRESSION

$1.49

$

In Stock, only 4 left!

0

15

Echo C461000080

BUTTON, THROTTLE LOCK

$2.49

$

Usually ships in 2-4 days

0

16

Echo V430003410

CABLE, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

17

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 20+

0

18

Echo C403000612

GRIP, HANDLE

$21.99

$

In Stock, only 2 left!

0

19

Echo V475004470

TUBE, PLASTIC PROTECTIVE

$4.49

$

In Stock, only 2 left!

0
