PS 5001 (88820) - Snapper 17" Power Slicer, 5hp Slicer Assembly Parts Diagram

17" Power Slicer, 5hp

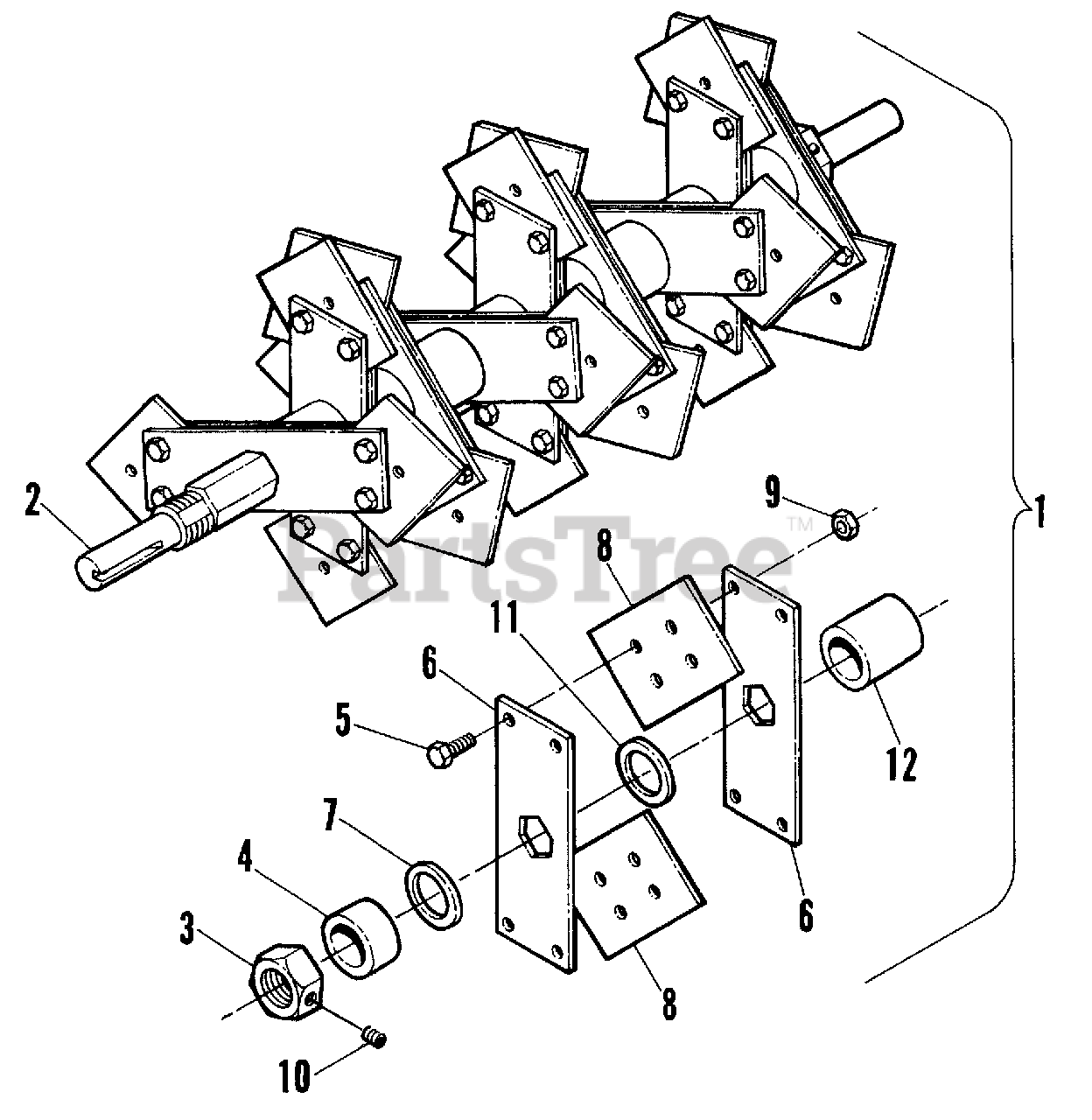

Slicer Assembly Parts Diagram

  • Title

Snapper 7060815

SLICER QUICK CHANGE KIT
(Superseded to 7060815YP)

$634.99

$

Usually ships in 2-12 days

0

1

Snapper 7060814

SLICER ASSEMBLY, Complete

$

$

Not available

2

Snapper 7076322

BARE "SLICER" REEL SHAFT

$

$

Not available

3

Snapper 7076323

NUT, 1" SAE Jam w/Set Screw

$

$

Currently unavailable

4

Snapper 7076324

SPACER, Sleeve

$

$

Currently unavailable

5

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 12

0

6

Snapper 7076325

HOLDER PLATE

$

$

Not available

7

Snapper 7076329

WASHER, Flat

$2.99

$

In Stock, only 2 left!

0

8

Snapper 7077186

SLICER BLADE
(Superseded to 7077186YP)

Note: (See "D" Below for Slicer Blade Replacement Kit)

$42.99

$

Usually ships in 2-12 days

0

9

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7076956

SCREW, 5/16-18 x 3/8" Socket Head Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7076327

BLADE SPACER-WASHER
(Superseded to 7076327YP)

$4.49

$

In Stock, Qty 6

0

12

Snapper 7076328

SLEEVE SPACER
(Superseded to 7076328YP)

$12.99

$

Usually ships in 2-12 days

0

?D

Snapper 7077186

SLICER BLADE REPLACEMENT KIT
(Superseded to 7077186YP)

Note: Was 77183 (OPTIONAL KIT; (Contains 20 Blades; 7-7186))

$42.99

$

Usually ships in 2-12 days

0
