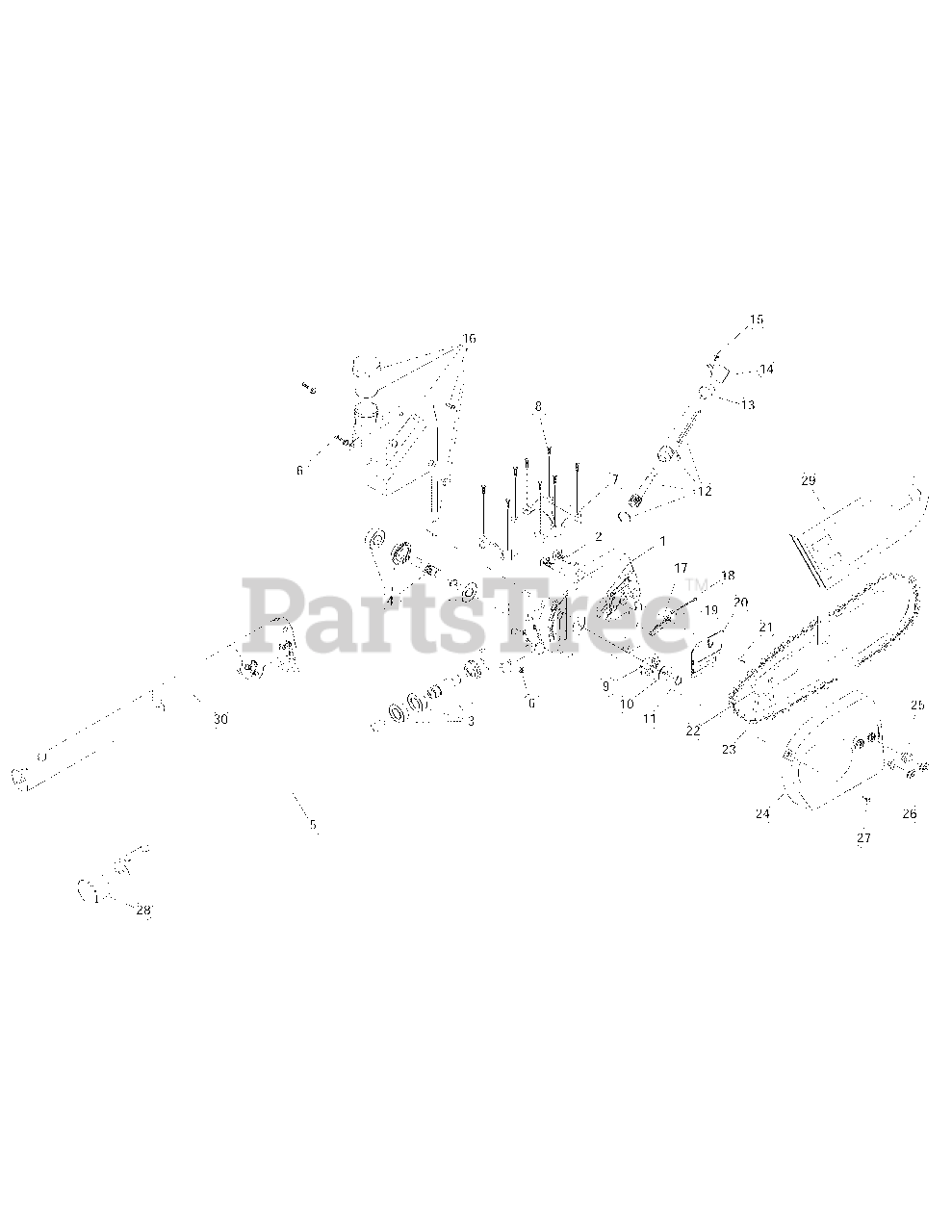

PS 720 R (41AJPS-C902) - TrimmerPlus Pole Saw Attachment General Assembly (2008 & Before) Parts Diagram

Pole Saw Attachment

General Assembly (2008 & Before) Parts Diagram

  • Title
1

MTD 753-04621

Gearbox

$

$

Not available

2

$

$

Not available

3

MTD 753-04623

Shaft Assembly

$

$

Not available

4

MTD 753-04624

Spindle Assembly

$

$

Not available

5

MTD 753-04625

Connection Stick Assembly

$

$

Not available

6

$

$

Not available

7

MTD 753-04627

Case Cover

$

$

Not available

8

$

$

Not available

9

MTD 753-04629

Sprocket

$

$

Not available

10

MTD 753-04630

Washer

$

$

Not available

11

MTD 753-04631

C Ring
(Superseded to MC-22237-00)

$

$

Not available

12

MTD 753-04632

Oil Pump Assembly

$

$

Not available

13

MTD 753-04633

Rubber Cork

$

$

Not available

14

MTD 753-04634

Fixed Plate

$

$

Not available

15

$

$

Not available

16

MTD 753-04636

Oiler Assembly

$

$

Not available

17

MTD 753-04637

Anti-Spillage Pad
(Superseded to MC-9014-A10702)

$

$

Not available

18

MTD 753-04638

Regulation Screw
(Superseded to MC-6214-210801)

$

$

Not available

19

MTD 753-04639

Regulation Cap

$

$

Not available

20

MTD 753-04640

Adjustable Plate

$

$

Not available

21

$

$

Not available

22

MTD 753-04642

Bar 8"

$

$

Not available

23

MTD 753-04643

Saw Chain

$

$

Not available

24

$

$

Not available

25

MTD 753-04645

Fixed Ring

$

$

Not available

26

MTD 753-04646

Nut
(Superseded to MC-6NHZ-1/4)

$

$

Not available

27

$

$

Not available

28

MTD 753-04649

Covering
(Superseded to MC-9105-330301)

$

$

Not available

29

$

$

Not available

30

MTD 753-04648

Inner Pipe Assembly

$

$

Not available
