PS 720 R (41CJPS-C954) - Cub Cadet Trimmer Plus Pole Saw Attachment att General Assembly Parts Diagram

Trimmer Plus Pole Saw Attachment

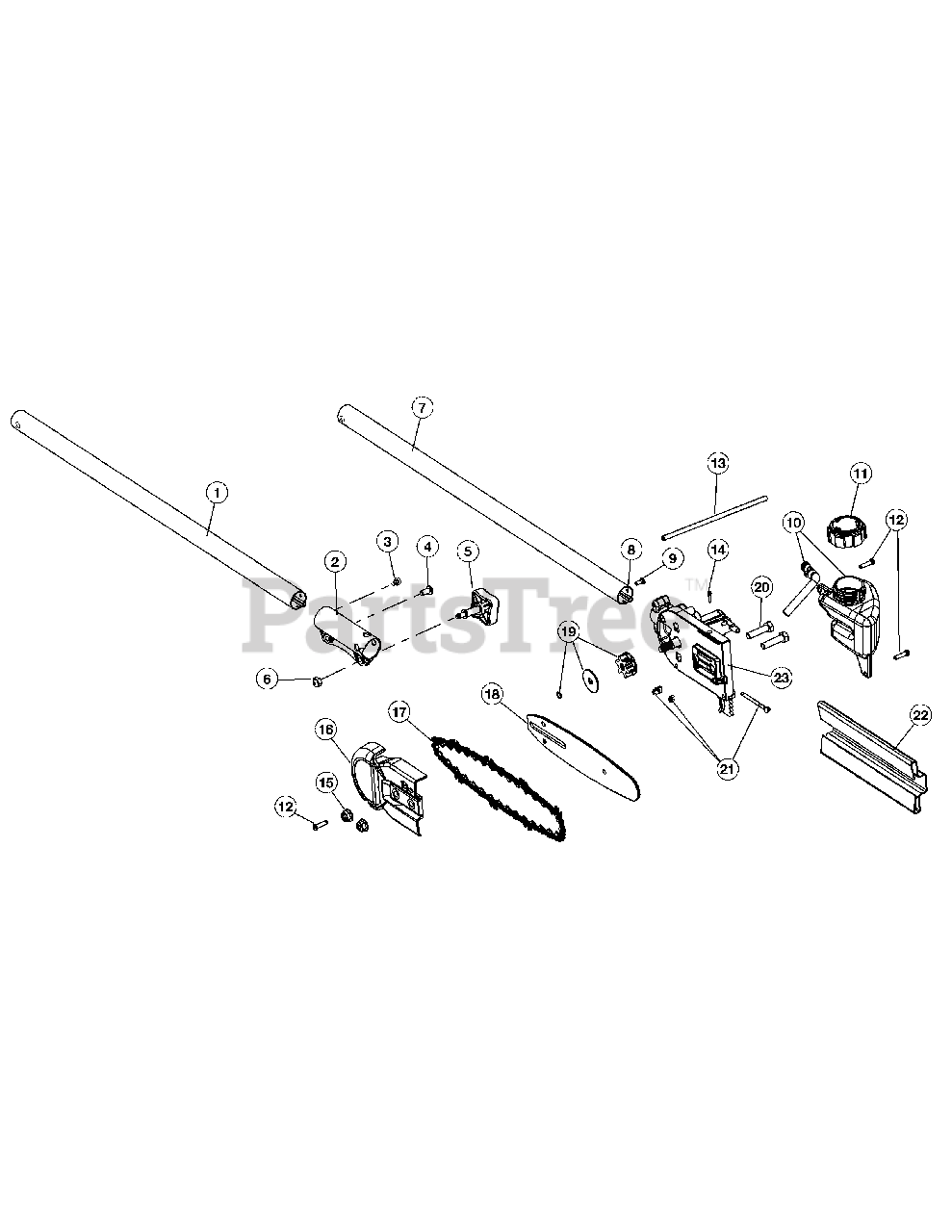

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04352

Extension Boom

$85.99

$

In Stock, Qty 5

0

2

Cub Cadet 753-1190

Split Boom Coupler

Note: (Incl. Ref. No. 3-6)

$24.99

$

In Stock, Qty 11

0

3

Cub Cadet 791-182057

Screw

$4.99

$

In Stock, Qty 19

0

4

Cub Cadet 791-181617

Bolt

$5.99

$

In Stock, Qty 10

0

5

Cub Cadet 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.99

$

In Stock, only 4 left!

0

7

Cub Cadet 753-05724

Drive Shaft Housing

Note: (Incl. Ref. No. 8)

$42.99

$

In Stock, only 2 left!

0

8

Cub Cadet 791-181166

Flexiable Drive Shaft

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-180288

Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 753-05586

Oil Tank Assembly

$32.99

$

In Stock, only 2 left!

0

11

Cub Cadet 753-05587

Fuel Cap Assembly

$9.49

$

In Stock, Qty 6

0

12

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 753-05588

Oil Line

$10.99

$

In Stock, only 2 left!

0

14

Cub Cadet 753-05589

Screw
(Superseded to 710-04696)

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 753-05591

Nut
(Superseded to 712-04063)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-05593

Chain Guard

$14.99

$

In Stock, only 2 left!

0

17

Cub Cadet 753-05592

Chain 8", 34 links

$40.99

$

In Stock, Qty 10

0

18

Cub Cadet 753-05594

Bar

$58.99

$

In Stock, only 4 left!

0

19

Cub Cadet 753-05595

Sprocket Assembly

$12.99

$

In Stock, Qty 15

0

20

Cub Cadet 753-05596

Bolt
(Superseded to 710-0528)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 753-05597

Chian Tension Hardware Assembly

$10.99

$

In Stock, Qty 9

0

22

Cub Cadet 753-05598

Chain Cover
(Superseded to 731-25531)

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-05599

Gearbox Assembly

Note: (Incl. Ref. No. 14 & 19)

$112.99

$

In Stock, Qty 7

0

Cub Cadet 791-612605

Hanger
(Superseded to 731-08926)

Note: (Not Shown)

$2.99

$

In Stock, Qty 20+

0

Cub Cadet 753-04774

Allen Wrench

Note: (Not Shown)

$

$

Currently unavailable
