PS 803188 (090079429) - PowerStroke Pressure Washer, Rev 01 (2019-05) FIGURE A Parts Diagram

Pressure Washer, Rev 01

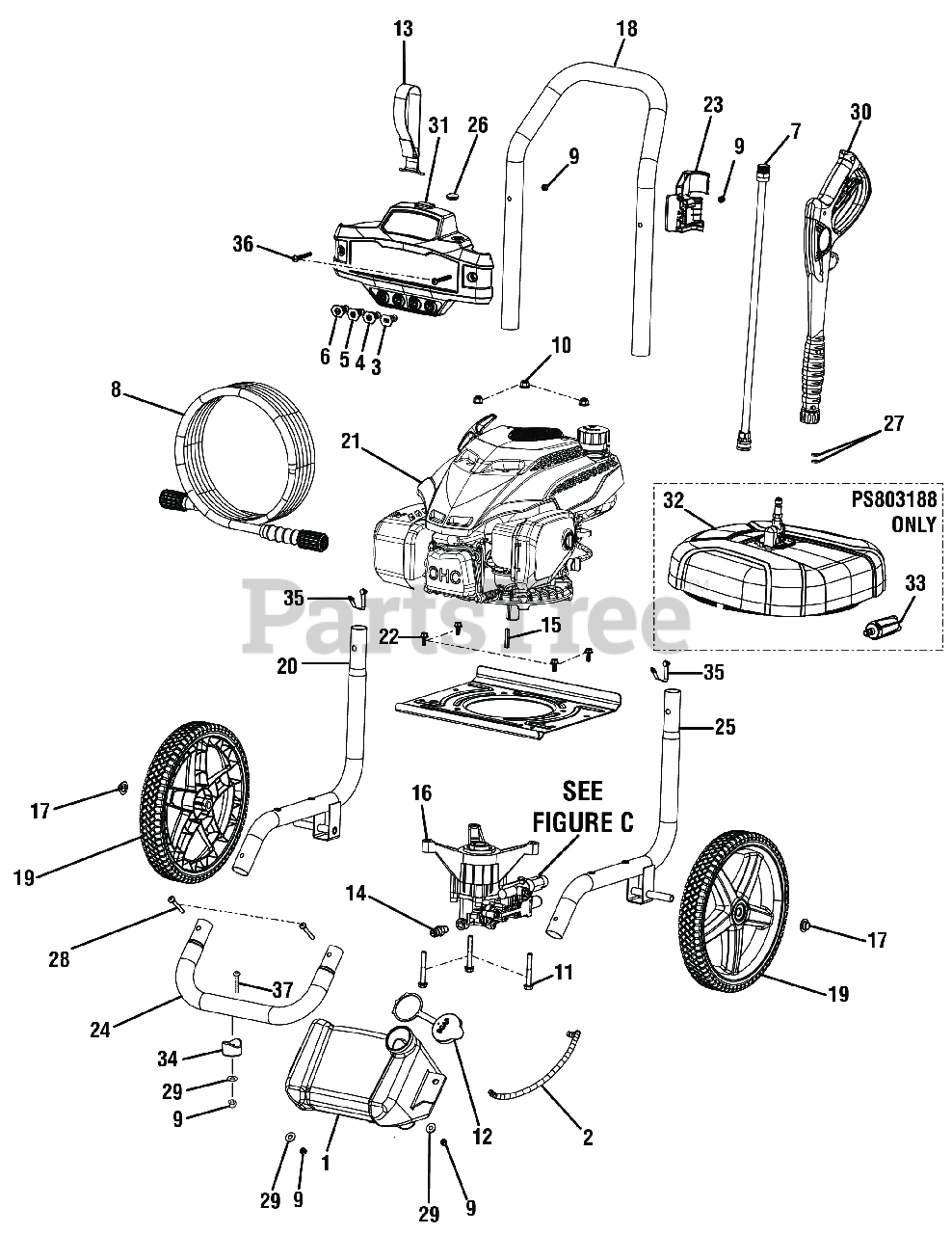

FIGURE A Parts Diagram

  • Title

1

Homelite 580875021

Soap Tank

$

$

Not available

2

Homelite 570728009

Detergent Injection Hose
(Superseded to 561399003)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 308706013

Soap Nozzle (Blue)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 308700012

40deg Deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

5

Homelite 308699012

25deg Deg Nozzle

$4.49

$

In Stock, only 2 left!

0

6

Homelite 308698012

15deg Deg Nozzle

$5.99

$

Usually ships in 3-7 days

0

7

Homelite 308506014

Extension Wand

$

$

Not available

8

Homelite 308835083

Hose (30 ft.)

$84.99

$

Usually ships in 3-7 days

0

9

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

10

Homelite 678774002

Lock Nut (M8 x 1.25 mm, Flange)

$

$

Not available

11

Homelite 660962003

Flange Bolt (M8 x 1.25 x 60 mm, Hex Hd.)..

$1.99

$

In Stock, Qty 12

0

12

Homelite 310650004

Detergent Tank Cap

$1.99

$

In Stock, Qty 5

0

13

Homelite 308350003

Hose Holder Strap

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 678169004

Thermal Release Valve.

$

$

Not available

15

Homelite 678041006

Output Shaft Key ( 35 mm)

$7.99

$

Usually ships in 3-7 days

0

16

Homelite 308653078

Pump (See Figure B)

$170.99

$

In Stock, only 1 left!

0

17

Homelite 679957001

Push Cap Nut (1/2 in.)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 308638080

Handle Assembly

$19.99

$

Usually ships in 3-7 days

0

19

Homelite 308451067

Wheel

$

$

Not available

20

Homelite 310703034

Main Frame Assembly

Note: (Left, Inc. Key No. 35)

$19.99

$

Usually ships in 3-7 days

0

21

Engine

Note: NOTE A: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

22

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$1.49

$

In Stock, Qty 9

0

23

Homelite 519313019

Wand Holder

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 310742034

Front Frame Assembly

Note: (Inc. Key Nos. 9, 28-29 & 34)

$11.99

$

Usually ships in 3-7 days

0

25

Homelite 310704034

Main Frame Assembly

Note: (Right, Inc. Key No.35)

$19.99

$

Usually ships in 3-7 days

0

26

Homelite 561383004

Rubber Nozzle Grommet

$

$

Not available

27

Homelite 570742072

O-Ring (9.5 x 2.65, NBR Shore A 90)

$2.49

$

In Stock, Qty 9

0

28

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$

$

Not available

29

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

30

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

31

Homelite 518790038

Performance Panel

$7.49

$

Usually ships in 3-7 days

0

32

Homelite 308999049

14 in. Surface Cleaner (PS803188)

$96.99

$

Usually ships in 3-7 days

0

33

Homelite 308311030

Turbo Nozzle (PS803188)

$30.99

$

Usually ships in 3-7 days

0

34

Homelite 570554002

Rubber Foot

$1.49

$

In Stock, Qty 5

0

35

Homelite 308421004

Lock Button w/Spring Clip.

$

$

Not available

36

Homelite 661834008

Bolt (M6 x 48 mm, Button Hd.)

$1.49

$

Usually ships in 3-7 days

0

Homelite 995000653

Operator's Manual (PS803188/PS8C3152)

$

$

Not available

Homelite 995000654

Quick Reference Guide

$1.49

$

Usually ships in 3-7 days

0

Homelite 995000688

Surface Cleaner Operator's Manual (PS803188)

$

$

Not available

Homelite 995000769

Turbo Nozzle Operator's Manual (PS803188)

$

$

Currently unavailable
