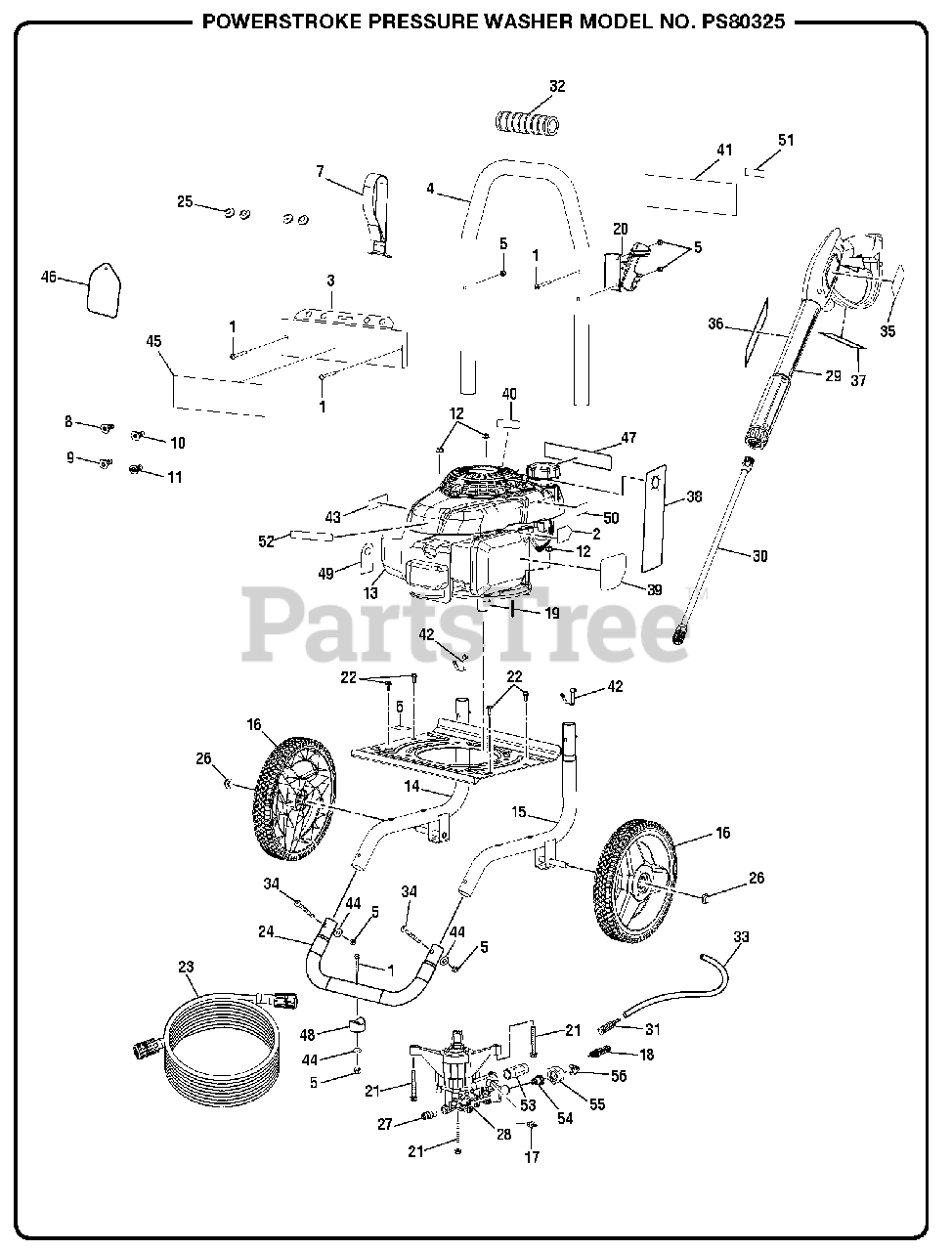

PS 80325 (090079278) - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Pan Hd)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 941550007

Engine On/Off Label

$

$

Not available

3

Homelite 638671013

Hose and Nozzle Holder

$8.99

$

Usually ships in 3-7 days

0

4

Homelite 308790078

Handle

$

$

Not available

5

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

6

Homelite 940872025

Oil Fill Location Label

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 308350003

Hose Holder Strap

$3.99

$

Usually ships in 3-7 days

0

8

Homelite 308700012

40 deg Nozzle

$8.49

$

In Stock, only 2 left!

0

9

Homelite 308706011

Soap Nozzle

$6.49

$

In Stock, only 2 left!

0

10

Homelite 308699012

25 deg Nozzle

$9.49

$

In Stock, only 2 left!

0

11

Homelite 308697012

0 deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Lock Nut (M8 x 1.25)

$2.49

$

In Stock, Qty 6

0

13

Engine (Honda GCV 190, 190cc OHC Vertical)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

14

Homelite 310703024

Main Frame Assembly

Note: (Left, Inc. Key No. 42)

$46.99

$

Usually ships in 3-7 days

0

15

Homelite 310704029

Main Frame Assembly

Note: (Right, Inc. Key No. 42)

$22.99

$

Usually ships in 3-7 days

0

16

Homelite 308451039

Wheel

$

$

Not available

17

Homelite 308452002

Detergent Suction Kit

$6.99

$

In Stock, Qty 5

0

18

Homelite 310924003

Pump Unloader Valve

$35.99

$

In Stock, only 2 left!

0

19

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 519313009

Wand Holder

$

$

Not available

21

Homelite 660962003

Flange Bolt (M8 x 60 mm, Hex Hd)

$

$

Not available

22

Homelite 661505020

Flange Bolt (M6 x 16 mm, Hex Hd)

$

$

Not available

23

Homelite 308835075

Hose (25 ft.)
(Superseded to 308835006)

$67.99

$

In Stock, only 1 left!

0

24

Homelite 310742029

Front Frame

Note: (Inc Key Nos 1, 5, 44 & 48)

$

$

Not available

25

Homelite 561383004

Grommet

$

$

Not available

26

Homelite 679957001

Push Cap Nut

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$16.99

$

Usually ships in 3-7 days

0

28

Homelite 308653078

Pump

Note: (Inc. Keys Nos 17-18 & 53-56)

$341.99

$

In Stock, only 1 left!

0

29

Homelite 308760057

Trigger Handle Assembly

Note: (Inc. Keys Nos 35-37)

$

$

Not available

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 308103015

Chemical Siphon Filter

$2.99

$

In Stock, only 4 left!

0

32

Homelite 570721016

Foam Grip

$

$

Not available

33

Homelite 561399003

Chemical Siphon Tube

$3.49

$

In Stock, Qty 6

0

34

Homelite 661834004

Screw (M6 x 42 mm, T30 Tox Pan Hd)

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 940654297

Trigger Handle Warning Label (Eng)

$

$

Not available

36

Homelite 940654293

Trigger Handle Warning Label (Fr/Sp)

$

$

Not available

37

Homelite 940786020

Trigger Handle Rating Label
(Superseded to 940786006)

$

$

Not available

38

Homelite 940473011

Danger Hangtag

$

$

Not available

39

Homelite 940648004

Engine Control Label

$

$

Not available

40

Homelite 940947013

Combustion Label

$

$

Not available

41

Homelite 940617152

Quick Start Label

$

$

Not available

42

Homelite 308421004

Lock Button w/Spring Clip

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 940680040

Hot Surface Label

$3.49

$

Usually ships in 3-7 days

0

44

Homelite 638128004

Washer (1/4 in)

$2.49

$

In Stock, Qty 5

0

45

Homelite 940779148

Performance Label

$

$

Not available

46

Homelite 961039005

Nozzle Hangtag

$

$

Not available

47

Homelite 940894014

Danger Label

$

$

Not available

48

Homelite 570554002

Wear Pad

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 961454001

Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$2.49

$

In Stock, only 2 left!

0

51

Homelite 941486002

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 941714004

Honda Brand Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 308862003

Outlet Tube

$10.99

$

In Stock, only 1 left!

0

54

Homelite 642058001

Spindle

$4.99

$

In Stock, only 2 left!

0

55

Homelite 310993003

Collar

$6.49

$

In Stock, only 2 left!

0

56

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

Homelite 991000472

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 991000473

Quick Start Guide

Note: Not Shown

$2.49

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

Note: Not Shown

$

$

Not available

Homelite 519314001

Funnel

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0
