PS 80516 B - PowerStroke Pressure Washer Figure A Parts Diagram

Pressure Washer

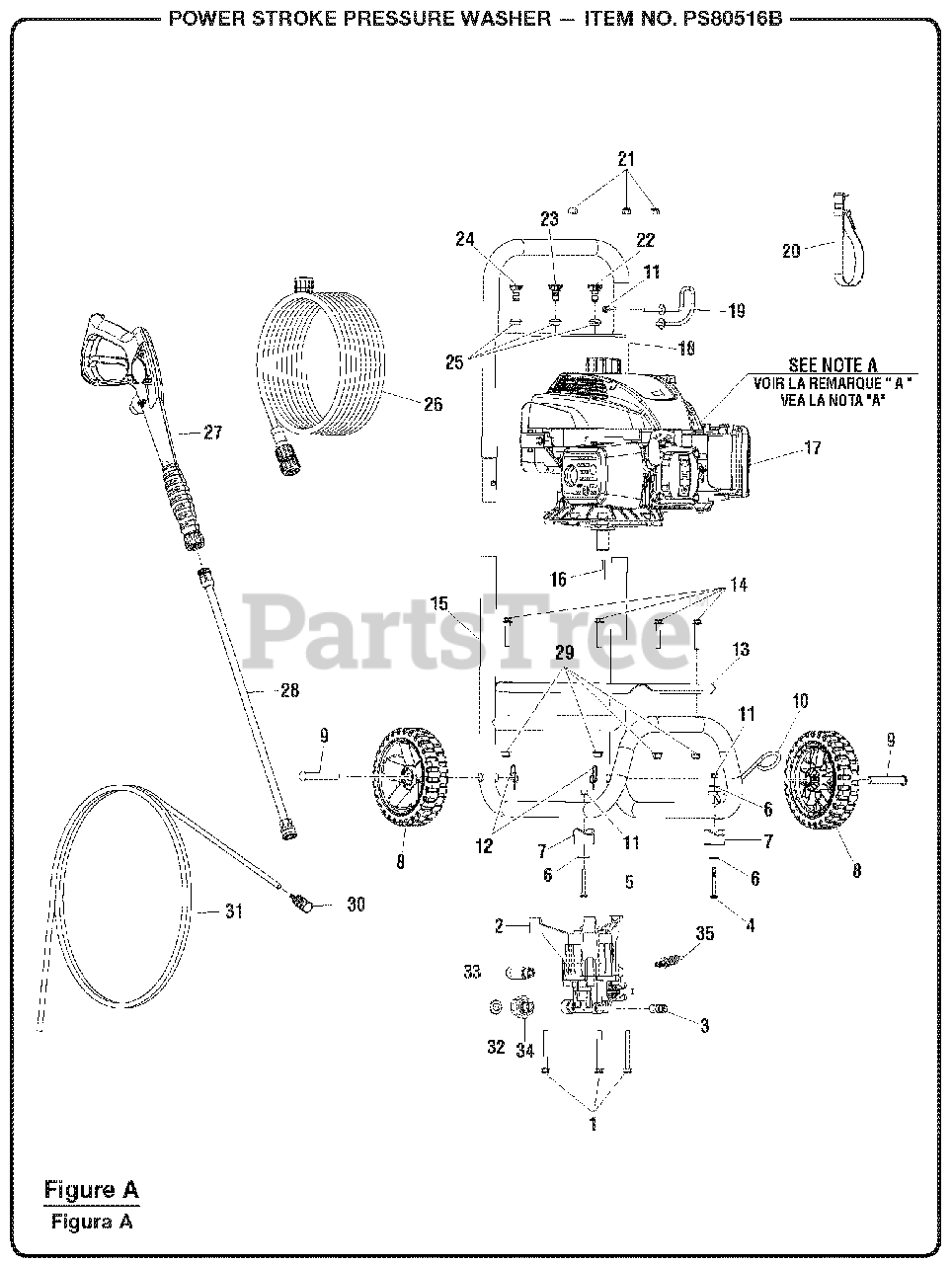

Figure A Parts Diagram

  • Title

1

Homelite 661505006

Bolt (M8 x 70 mm, Flange Hd.)

$

$

Not available

2

Homelite 308653050

Pump

$171.99

$

Usually ships in 3-7 days

0

3

Homelite 678169004

Thermal Release Valve

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 660592006

Screw (1/4-20 x 2.2 in., Truss Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 661501001

Screw (1/4-20 x 2 in., T30 Torx Hd.)

$

$

Not available

6

Homelite 638128003

Washer (1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 570554002

Foot

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308603001

Wheel Assembly

$

$

Not available

9

Homelite 620490001

Axle

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 678243016

Wand Holder

$

$

Not available

11

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$

$

Not available

12

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

13

Homelite 638662028

Engine Plate

$

$

Not available

14

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$2.49

$

In Stock, Qty 5

0

15

Homelite 308412036

Main Frame Assembly

$

$

Not available

16

Homelite 678041002

Output Shaft Key
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 309591105

Engine (RATO, 140 cc)

$

$

Not available

18

Homelite 308790051

Handle Assembly

$

$

Not available

19

Homelite 308316005

Trigger Wand Holder

$3.99

$

Usually ships in 3-7 days

0

20

Homelite 310801001

Hose Storage Strap

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 678189001

Lock Nut (M8)

$

$

Not available

22

Homelite 308700029

40deg Nozzle

$8.49

$

In Stock, only 2 left!

0

23

Homelite 678304001

25deg Nozzle

$9.99

$

In Stock, only 2 left!

0

24

Homelite 308706011

Soap Nozzle

$6.49

$

In Stock, only 2 left!

0

25

Homelite 561383004

Nozzle Grommets

$

$

Not available

26

Homelite 308414001

25 ft. Hose
(Superseded to 308835006)

$67.99

$

In Stock, only 1 left!

0

27

Homelite 308760019

Trigger Handle

$

$

Not available

28

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

29

Homelite 678774001

Lock Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 308103015

Chemical Siphon Filter

$2.99

$

In Stock, only 4 left!

0

31

Homelite 561399003

Chemical Siphon Tube

$3.49

$

In Stock, Qty 7

0

32

Homelite 308103003

Filter Screen

$

$

Currently unavailable

33

Homelite 308862003

Outlet Tube

$10.99

$

Usually ships in 3-7 days

0

34

Homelite 308861003

Inlet Tube

$25.99

$

In Stock, only 2 left!

0

35

Homelite 310924003

Unloader Valve

$35.99

$

In Stock, only 2 left!

0

Homelite 990000524

Operator's Manual

Note: Not Shown

$

$

Not available
