PS 80516 B - PowerStroke Pressure Washer Figure E Parts Diagram

Pressure Washer

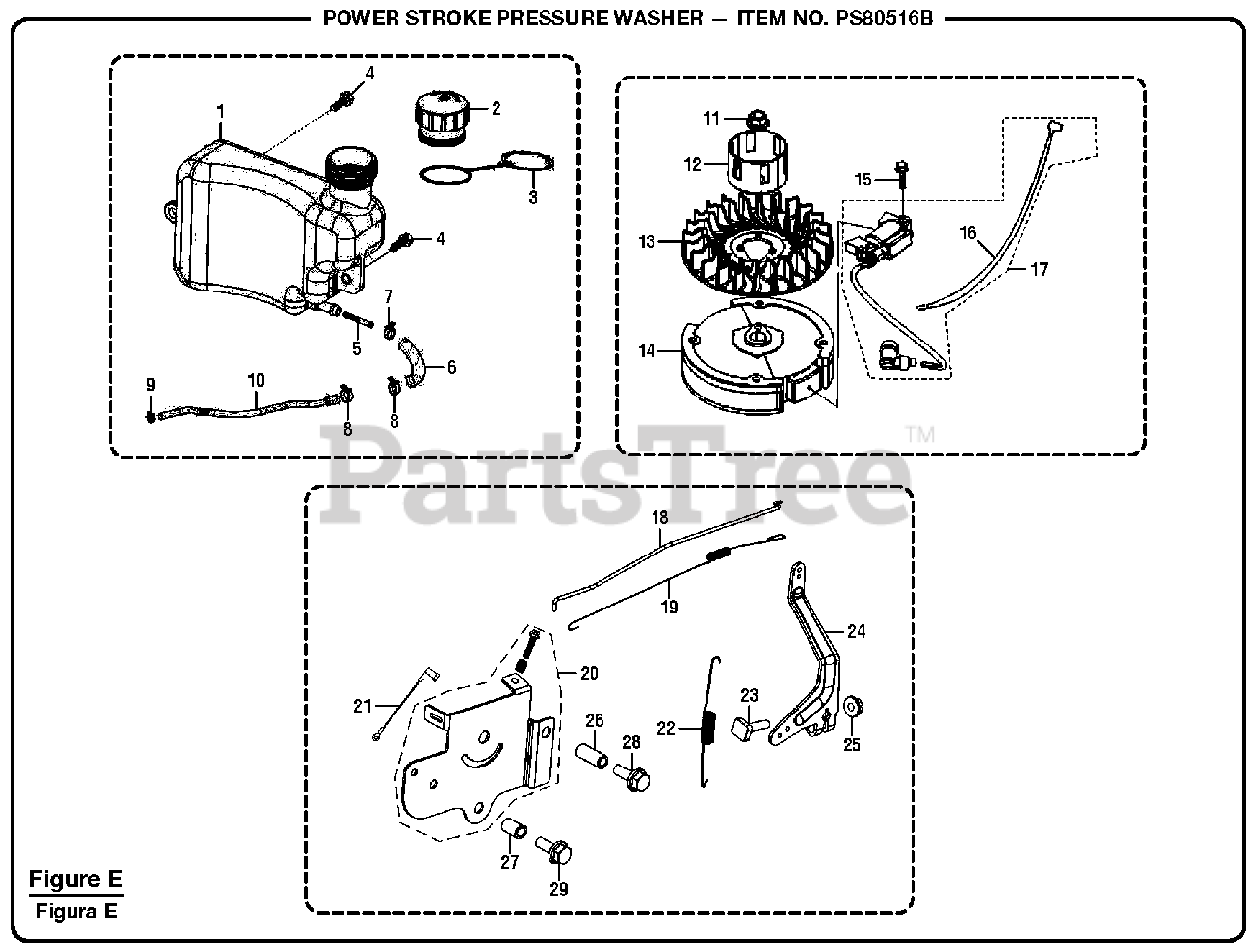

Figure E Parts Diagram

  • Title

FUEL TANK ASSEMBLY

$

$

Not available

1

Homelite 16620-Z030510-0099

Fuel Tank Assembly

$

$

Not available

2

Homelite 16730-Z620210-0000

Fuel Cap

$

$

Not available

3

Homelite 16744-Z620120-0000

Chain

$

$

Not available

4

Homelite 90007-0614-A1

Bolt

$

$

Not available

5

Homelite 16652-Z030110-0000

Fuel Filter

$1.49

$

In Stock, only 1 left!

0

6

Homelite 90686-Z250310-0000

Fuel Tube

$3.49

$

In Stock, only 1 left!

0

7

Homelite 90685-Z030410-0000

Clamp

$1.49

$

In Stock, only 1 left!

0

8

Homelite 90685-Z020110-0000

Clamp

$

$

Not available

9

Homelite 90685-Z030220-0000

Clamp

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 90686-Z250410-0000

Fuel Tube

$4.99

$

In Stock, only 1 left!

0

FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL

$

$

Not available

11

Homelite 13501-Z010110-0000

Flywheel Nut

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 28002-Z030110-0000

Starter Pulley

$

$

Not available

13

Homelite 19352-Z010110-0000

Impeller

$

$

Not available

14

Homelite 13510-Z340110-0000

Flywheel Assembly

$33.99

$

Usually ships in 3-7 days

0

15

Homelite 90007-0625-A1

Bolt

$

$

Not available

16

Homelite 30423-Z020310-0000

Ignition Coil Stop Wire

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 30400-Z250310-0001

Ignition Coil

$

$

Not available

THROTTLE CONTROL ASSEMBLY

$

$

Not available

18

Homelite 16062-Z250110-0000

Governor Rod

$

$

Currently unavailable

19

Homelite 16012-Z030120-0000

Throttle Valve Returning Spring

$

$

Not available

20

Homelite 16520-Z251210-0000

Throttle Control Bottom Plate

$

$

Not available

21

Homelite 35555-Z020110-0000

Stop Engine Switch Ground Wire

$

$

Not available

22

Homelite 16063-Z250510-0000

Governor Spring

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 16072-Z010110-0000

Governor Support Bolt

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 16070-Z250110-0000

Nut

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 90305-0600-31

Governor Support Assembly

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 90683-Z250110-0000

Sleeve

$

$

Not available

27

Homelite 90683-Z250210-0000

Sleeve

$

$

Not available

28

Homelite 90007-0655-A1

Hex Nut (M6)

$

$

Not available

29

Homelite 90007-0635-A1

Hex Nut (M6)

$1.49

$

Usually ships in 3-7 days

0
