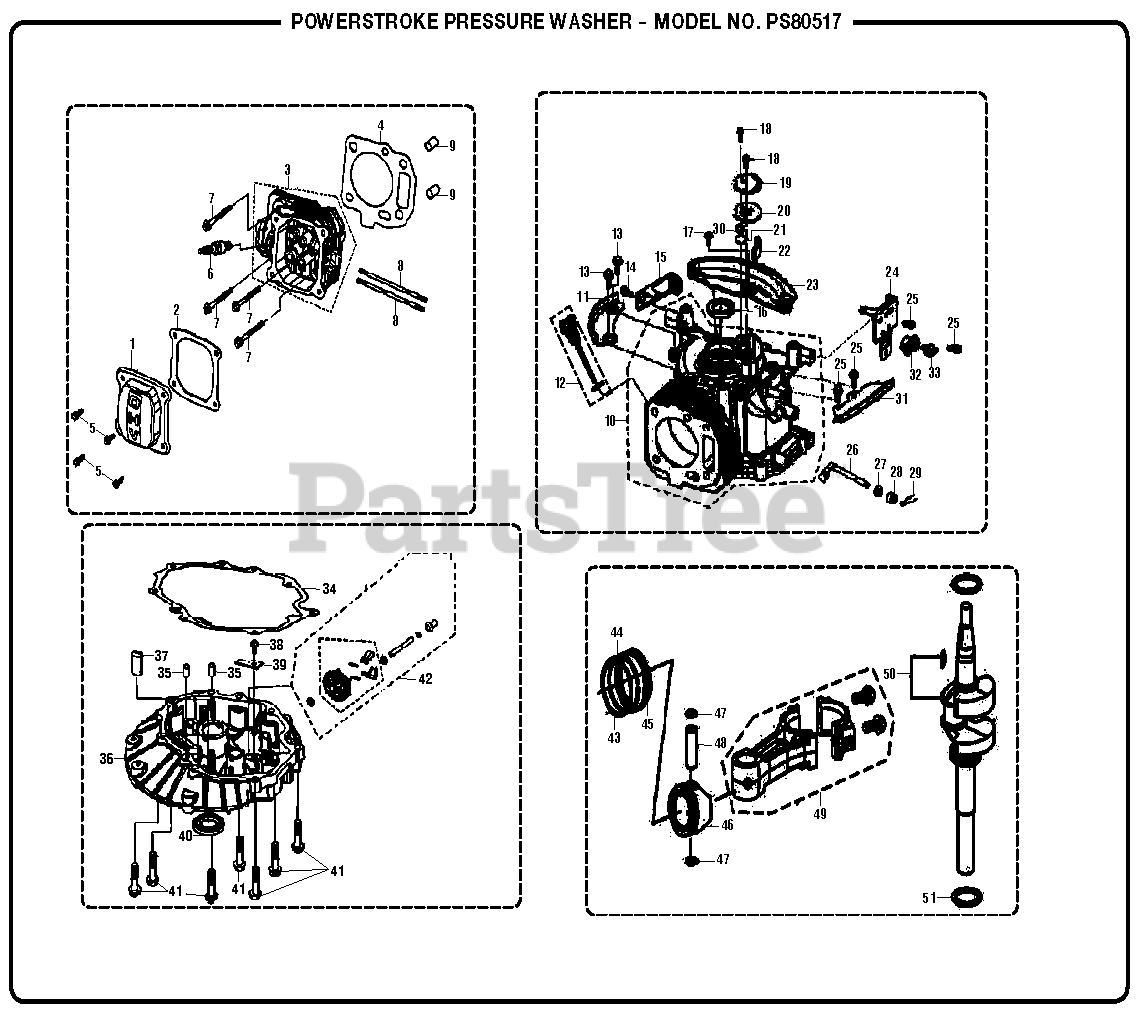

PS 80517 - PowerStroke Pressure Washer General Assembly (Part 2) Parts Diagram

Pressure Washer

General Assembly (Part 2) Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12411-Z030120

Cylinder Head Cover

$

$

Currently unavailable

2

Homelite 12004-Z030110

Cylinder Head Cover Gasket

$

$

Currently unavailable

3

Homelite 12140-Z250210

Cylinder Head Assembly

$

$

Currently unavailable

4

Homelite 12131HZ250130

Cylinder Head Gasket

$

$

Currently unavailable

5

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

6

Homelite 30010-Z010210

Spark Plug
(Superseded to 30010-Z010210-0000)

$4.49

$

In Stock, only 3 left!

0

7

Homelite 12003-Z030110

Cylinder Head Bolt

$

$

Currently unavailable

8

Homelite 90204-Z250310

Stud

$

$

Currently unavailable

9

Homelite 90502-1014-00

Pin

$1.49

$

Usually ships in 3-7 days

0

CRANLCASE ASSEMBLY

$

$

Not available

10

Homelite 11310-Z250170

Crankcase Assembly

$

$

Currently unavailable

11

Homelite 19308HZ250120

Crankcase Side Shield

$

$

Currently unavailable

12

Homelite 15010-Z030120

Dipstick Assembly Oil

$

$

Currently unavailable

13

Homelite 90001-0612-A1

Bolt

$

$

Not available

14

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

15

Homelite 16608HZ030120

Fuel Tank Right Bracket

$

$

Currently unavailable

16

Homelite 90682-Z50110

Oil Seal

$

$

Currently unavailable

17

Homelite 90001-0514-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 9001-0512-A1

Bolt

$

$

Currently unavailable

19

Homelite 11333-Z03110

Breathe Groove Cover Plate

$

$

Currently unavailable

20

Homelite 11332-Z250210

Breathe Groove Cover

$

$

Currently unavailable

21

Homelite 11321-Z030110

Breathe Piece

$

$

Currently unavailable

22

Homelite 11331-Z250110

Breathe Groove Strainer

$

$

Currently unavailable

23

Homelite 19351-Z250110

Crankcase Rear Shield

$

$

Currently unavailable

24

Homelite 16607HZ250710

Fuel Tank Left Bracket

$

$

Currently unavailable

25

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

26

Homelite 16061-Z250120

Governor Arm

$

$

Currently unavailable

27

Homelite 90408-Z010210

Washer
(Superseded to 90408-Z010210-0000)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 90682-Z030210

Oil Seal

$

$

Currently unavailable

29

Homelite 90501-Z010110

Pin
(Superseded to 90501-Z010110-0000)

$1.49

$

In Stock, only 2 left!

0

30

Homelite 11322-Z620110

Breath Peice Return Spring

$

$

Currently unavailable

31

Homelite 19309-Z250110

Crankcase Right Shield

$

$

Currently unavailable

32

Homelite 16757-Z020120

Fuel Valve Holder

$

$

Currently unavailable

33

Homelite 16752-Z020110

Fuel Valve

$

$

Currently unavailable

CRANKCASE / GEAR / GOVERNOR/ COVER ASSEMBLY

$

$

Not available

34

Homelite 11001-Z250230

Crankcase Gasket

$

$

Currently unavailable

35

Homelite 90502-0812-00

Pin

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 11411-Z250120

Crankcase Cover

$

$

Currently unavailable

37

Homelite 11341-Z030110

Returning Oil Block

$

$

Currently unavailable

38

Homelite 90007-0612-A1

Bolt

$

$

Currently unavailable

39

Homelite 16013-Z030120

Governor Spindle Plate

$

$

Currently unavailable

40

Homelite 90682-Z030120

Oil Seal

$

$

Currently unavailable

41

Homelite 90007-0628-A1

Bolt

$

$

Not available

42

Homelite 16400-Z250110

Governor Gear Assembly

$

$

Currently unavailable

CRANKSHAFT CONNECTING ROD

$

$

Not available

43

Homelite 13201-Z250110

First Ring

$

$

Currently unavailable

44

Homelite 13202-Z250110

Second Ring

$

$

Currently unavailable

45

Homelite 13210-Z250110

Oil Ring Set

$

$

Currently unavailable

46

Homelite 13111-Z250210

Piston

$

$

Currently unavailable

47

Homelite 13122-Z250110

Piston Pin Clip

$

$

Currently unavailable

48

Homelite 13121-Z250110

Piston Pin

$

$

Currently unavailable

49

Homelite 13010-Z250110

Connecting Rod

$

$

Currently unavailable

50

Homelite 13300-Z252210

Crankshaft Assembly

$

$

Currently unavailable

51

Homelite 90408-Z030210

Washer

$

$

Currently unavailable
