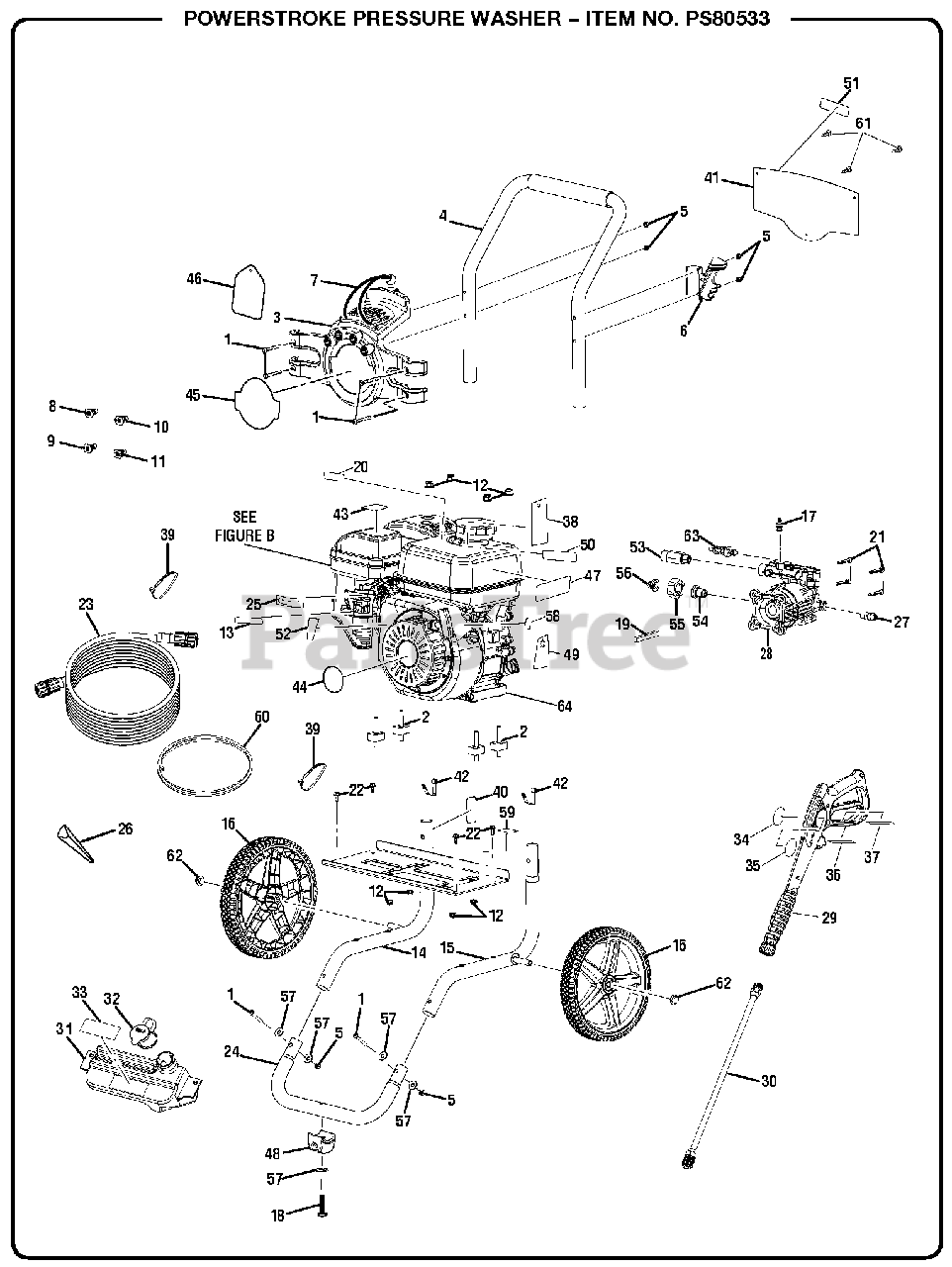

PS 80533 (090079253) - PowerStroke Pressure Washer General Assembly (Part 1) Parts Diagram

Pressure Washer

General Assembly (Part 1) Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$

$

Not available

2

Homelite 570554005

Engine Isolator

$

$

Not available

3

Homelite 310673005

Hose and Nozzle Holder Assembly

Note: (Inc. Key 7)

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$27.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313009

Wand Holder

$

$

Not available

7

Homelite 310664001

Bungee Cord Assembly

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308700030

40deg Nozzle

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

10

Homelite 308699029

25deg Nozzle

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 308697029

0deg Nozzle

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Homelite 941709001

Fuel On-Off Label

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 310703021

Main Frame Assembly (Left)

Note: (Inc. Key No. 42)

$16.99

$

Usually ships in 3-7 days

0

15

Homelite 310704024

Main Frame Assembly (Right)

Note: (Inc. Key No. 42)

$16.99

$

Usually ships in 3-7 days

0

16

Homelite 308451053

Wheel
(Superseded to 308451067)

$

$

Not available

17

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

18

Homelite 660224009

Bolt (M6 x 25 mm, T30 Torx Hd.)

$

$

Not available

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940899003

Do Not Mix Label

$

$

Not available

21

Homelite 660739002

Bolt (5/16-24 x 23 mm, Soc.Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 661505020

Flange Bolt (M6 x 16 mm)

$1.49

$

In Stock, Qty 9

0

23

Homelite 308835006

Hose (25 ft.)

$33.99

$

Usually ships in 3-7 days

0

24

Homelite 310742026

Front Frame

Note: (Incs. Key No. 18, 48 & 57)

$

$

Not available

25

Homelite 940647083

Choke Label

$

$

Not available

26

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653057

Pump

$253.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 580875008

Soap Tank

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

33

Homelite 941608010

Soap Dilution Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 940786025

Label (Wand Logo)

$

$

Not available

35

Homelite 940654084

Warning Label (En)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940654228

Warning Label (Fr/Sp)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 940786020

Label (Wand Rating)
(Superseded to 940786006)

$

$

Not available

38

Homelite 940473011

Danger Hangtag

$

$

Not available

39

Homelite 900333015

Wire Tie

$

$

Not available

40

Homelite 940947006

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 524408026

Quick Start Panel

$

$

Not available

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680065

Hot Surface Label

$

$

Not available

44

Homelite 940633035

Recoil Label

$

$

Not available

45

Homelite 940779126

Performance Label

$

$

Not available

46

Homelite 961039005

Nozzle Hangtag

$

$

Not available

47

Homelite 940894020

Danger Label

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 561307007

Rubber Foot

$

$

Not available

49

Homelite 940889002

Dipstick Hangtag

$1.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.49

$

In Stock, only 2 left!

0

51

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940647084

Fuel Valve Label

$

$

Not available

53

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

54

Homelite 642058001

Spindle

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 310993003

Collar

$3.49

$

Usually ships in 3-7 days

0

56

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

57

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

58

Homelite 940708018

Engine On/Off Label

$

$

Not available

59

Homelite 940871010

Oil Fill Location Label

$

$

Not available

60

Homelite 561399011

Chemical Siphon Tube
(Superseded to 561399003)

$1.99

$

In Stock, only 1 left!

0

61

Homelite 660923016

Screw (#6-20)

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 679957001

Push Cap Nut

$1.49

$

In Stock, only 3 left!

0

63

Homelite 310924003

Unloader Valve Assembly

$17.99

$

Usually ships in 3-7 days

0

64

Engine

Note: OWT Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

Homelite 120968035

HIgh Altitude Kit, R180-S (3000-6000 ft., Not Included)

Note: Not Shown

$

$

Not available

Homelite 120968036

High Altitude Kit, R180-S (6000-8000 ft., Not Included)

$

$

Not available

Homelite 990000928

Operator's Manual

$

$

Not available

Homelite 990000930

Quick Start Guide

$2.99

$

Usually ships in 3-7 days

0
