PS 80544 B (090079377) - PowerStroke Pressure Washer, Rev 02 (2018-01) Figure A Parts Diagram

Pressure Washer, Rev 02

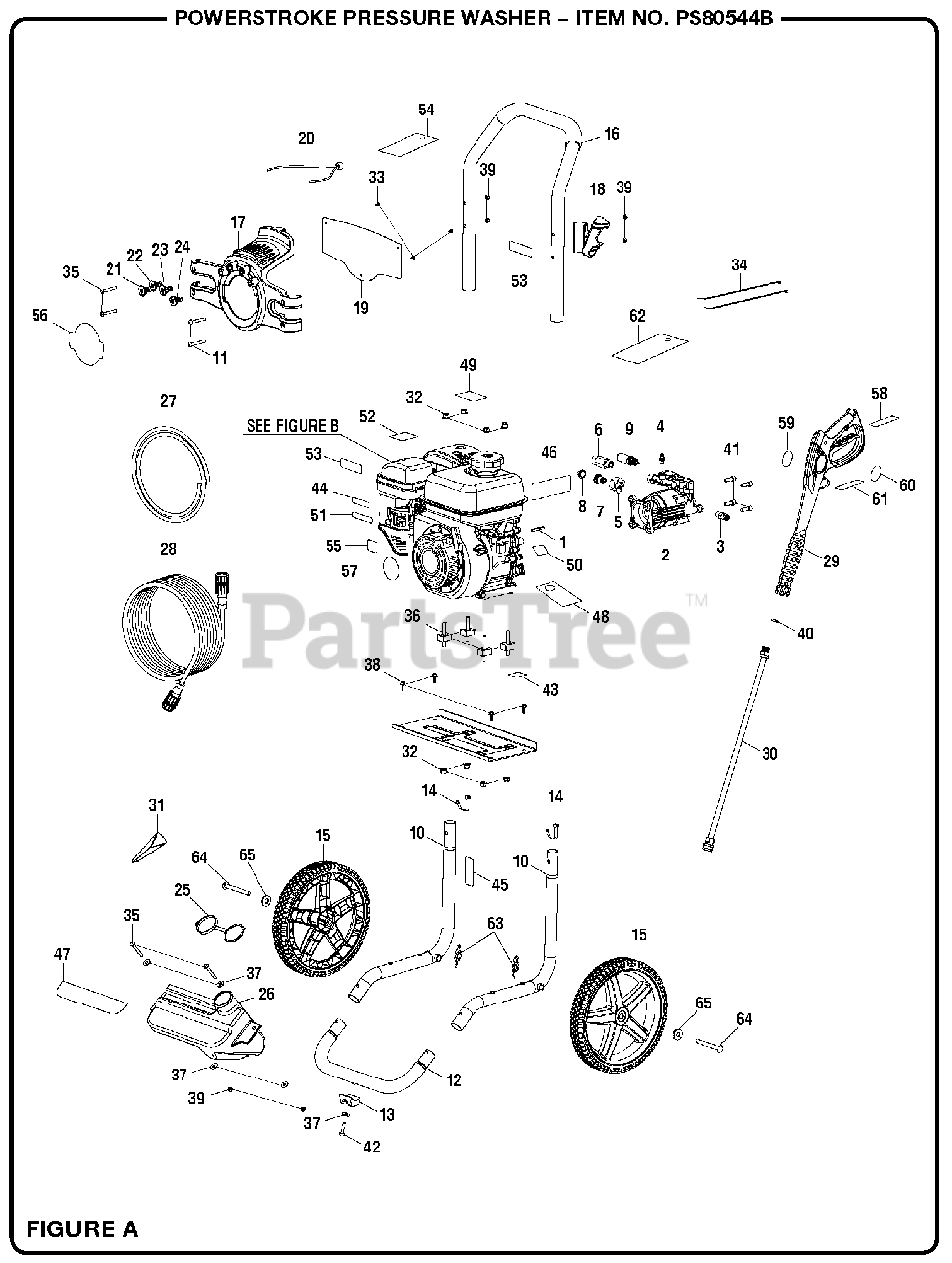

Figure A Parts Diagram

  • Title

1

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308653071

Pump

Note: (Inc. Key Nos. 4-9)

$162.99

$

In Stock, only 1 left!

0

3

Homelite 678169004

Thermal Release Valve

$

$

Not available

4

Homelite 308452002

Soap Injector Kit

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 310993003

Inlet Filter Adapter Insert

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 642058001

Inlet Filter Connector

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308662001

Inlet Filter Screen

$

$

Not available

9

Homelite 310924003

Unloader Valve Assembly

$17.99

$

Usually ships in 3-7 days

0

10

Homelite 310703027

Main Frame Assembly

Note: (Inc. Key No. 14)

$

$

Not available

11

Homelite 661834001

Screw (M6 x 48 mm, Phillips Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 310742026

Front Frame Assembly

Note: (Inc. Key Nos. 13, 37, and 42)

$

$

Not available

13

Homelite 561307007

Rubber Foot

$

$

Not available

14

Homelite 308421004

Handle Spring Clip

$

$

Not available

15

Homelite 308451060

Wheel (12 in.)

$

$

Not available

16

Homelite 308638042

Handle Assembly

$27.99

$

Usually ships in 3-7 days

0

17

Homelite 310673005

Hose and Nozzle Holder Assembly

Note: (Inc. Key No. 20)

$

$

Not available

18

Homelite 519313009

Wand Holder

$

$

Not available

19

Homelite 940617176

Instruction Panel

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 308697012

0deg Deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 308699012

25deg Deg Nozzle

$4.49

$

In Stock, only 2 left!

0

23

Homelite 308700012

40deg Deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

24

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

25

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

26

Homelite 580875008

Soap Tank

$

$

Not available

27

Homelite 561399011

Chemical Siphon Tube
(Superseded to 561399003)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 308835006

Hose (25 ft.)

$33.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

Note: (Inc. Key Nos. 60-61)

$27.99

$

In Stock, only 1 left!

0

30

Homelite 308506014

Wand Assembly

$

$

Not available

31

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 678774002

Flange Lock Nut (M8)

$

$

Not available

33

Homelite 660923016

Screw (#6-20 x 3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 900333015

Wire Tie

$

$

Not available

35

Homelite 661503015

Screw (M6 x 48 mm, T-30 Torx Hd.)

$

$

Not available

36

Homelite 570554005

Engine Isolator

$

$

Not available

37

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

38

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hd.)

$1.49

$

In Stock, Qty 9

0

39

Homelite 678610006

Lock Nut (M6)

$

$

Not available

40

Homelite 570742072

O-Ring

$2.49

$

In Stock, Qty 9

0

41

Homelite 660739002

Bolt (5/16-24 x 23 mm, Hex Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 660224009

Screw (M6 x 25mm, T-30 Torx Pan Hd.)

$

$

Not available

43

Homelite 940871010

Add Oil Label

$

$

Not available

44

Homelite 940647132

Choke Label

$

$

Not available

45

Homelite 940947006

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940894022

Danger Label

$

$

Not available

47

Homelite 940608032

Detergent Tank Label

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 940889002

Oil Dipstick Hang Tag

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

50

Homelite 941550010

Engine Switch Label

$

$

Not available

51

Homelite 941494020

Fuel Label

$

$

Not available

52

Homelite 940680047

Hot Surface and Exhaust Label

$

$

Not available

53

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 961039005

Nozzle Hangtag

$

$

Not available

55

Homelite 940698046

On/Off Label

$

$

Not available

56

Homelite 940779181

Performance Label

$

$

Not available

57

Homelite 940633051

Recoil Label

$

$

Not available

58

Homelite 940654228

Trigger Handle Warning Label (Fr/Sp)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940786044

Powerstroke Trigger Wand Logo Label

$1.49

$

Usually ships in 3-7 days

0

60

Homelite 940654084

Trigger Handle Warning Label (En)

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 940786047

Trigger Handle Specifications Label

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 940473011

Danger Hang Tag

$

$

Not available

63

Homelite 678899001

Ring Clip

$

$

Not available

64

Homelite 620599034

Axle

$2.49

$

In Stock, only 1 left!

0

65

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

Homelite 995000315

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 995000316

Quick Start Guide

$

$

Currently unavailable

Homelite 991000839

O-Ring Kit

$

$

Not available

Homelite 120960007

High Altitude Kit (3000-6000FT) (R210-R-PW)

$

$

Not available

Homelite 120960008

High Altitude Kit (6000-8000FT) (R210-R-PW)

$

$

Not available

Homelite 120968027

High Altitude Kit (3000-6000FT) (R210-H-PW)

$

$

Not available

Homelite 120968028

High Altitude Kit (6000-8000FT) (R210-H-PW)

$

$

Not available

Homelite 120968037

High Altitude Kit (3000-6000FT) (R210-S-PW)

$4.49

$

Usually ships in 3-7 days

0

Homelite 120968038

High Altitude Kit (6000-8000FT) (R210-S-PW)

$4.49

$

Usually ships in 3-7 days

0
