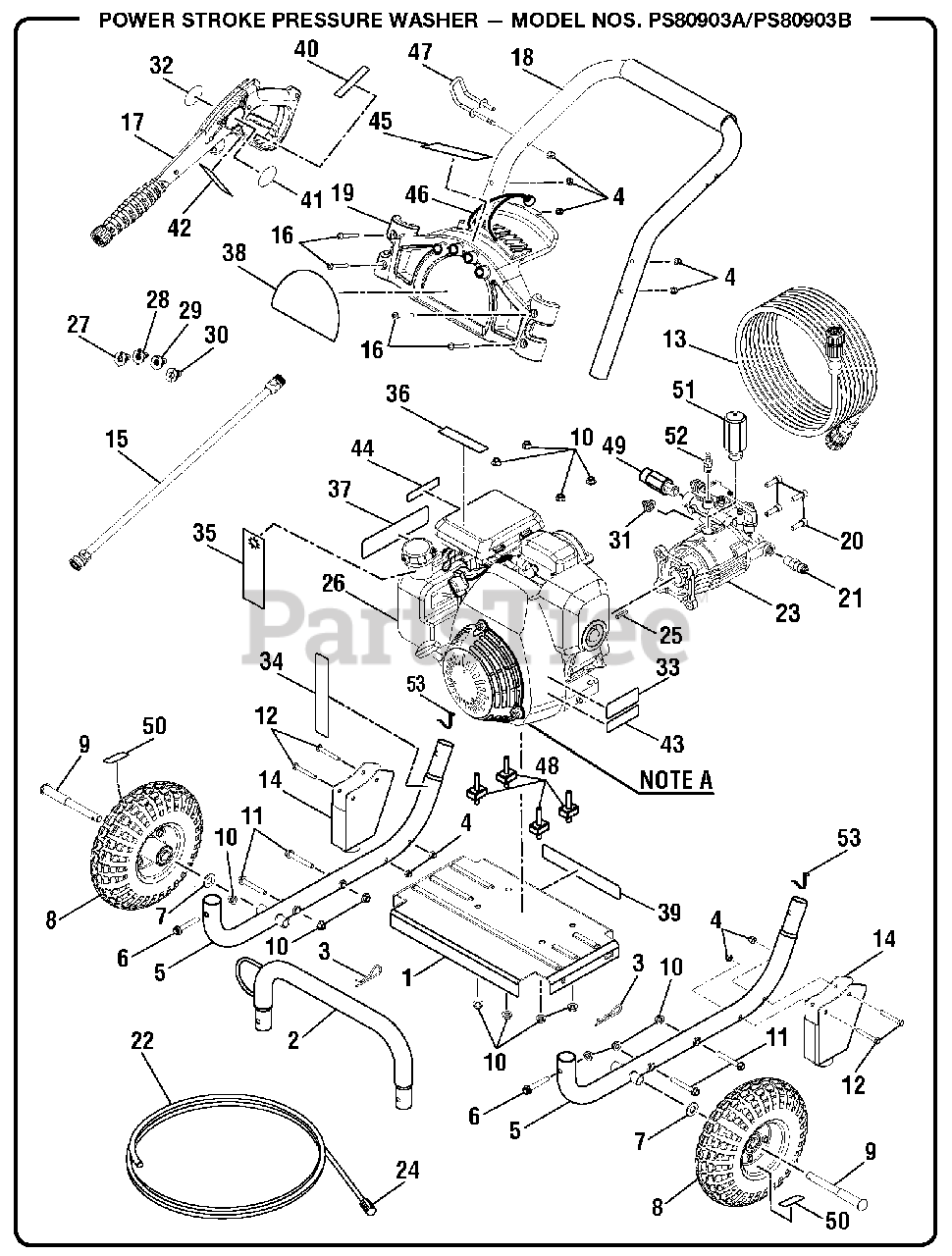

PS 80903 B - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 638662006

Engine Plate

$

$

Not available

2

Homelite 308659011

Front Frame

$

$

Not available

3

Homelite 678146002

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 308471018

Main Frame Assembly

$

$

Not available

6

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308451007

Wheel (10 in. x 3 in.)

$

$

Not available

9

Homelite 620599008

Axle

$

$

Not available

10

Homelite 678774001

Lock Nut (M8 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660962001

Bolt (M8 x 55 mm)
(Superseded to 660969001)

$

$

Not available

12

Homelite 660869005

Bolt (1/4-20 x 52 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 308835006

High Pressure Hose (25 ft.)

$33.99

$

Usually ships in 3-7 days

0

14

Homelite 308909007

Rear Foot Assembly

$

$

Not available

15

Homelite 308506006

Spray Wand
(Superseded to 308506014)

$

$

Not available

16

Homelite 661501001

Screw (1/4-20 x 2 in., Torx)

$

$

Not available

17

Homelite 308413007

Trigger Handle Assembly
(Superseded to 308760019)

$27.99

$

Usually ships in 3-7 days

0

18

Homelite 308638009

Handle Assembly

$

$

Not available

19

Homelite 310673007

Wand Holder

$

$

Not available

20

Homelite 660739002

Bolt (5/16-24 x 23 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 678169004

Thermal Release Valve

$

$

Not available

22

Homelite 561399003

Injection Hose

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 308418003

Himore Pump

Note: (PS80903A) (Incl. Key Nos. 31 and 49)

$

$

Not available

23

Homelite 308418004

AR Pump
(Superseded to 308418007)

Note: (PS80903B) (Incl. Key Nos. 39 and 49)

$

$

Not available

24

Homelite 518391001

Filter

$1.49

$

In Stock, only 3 left!

0

25

Homelite 678041004

Output Shaft Key

Note: (PS80903A) 3-16 x 21

$

$

Currently unavailable

25

Homelite 678041003

Output Shaft Key
(Superseded to 678041007)

Note: (PS80903B) 3-16 x 40

$1.49

$

Usually ships in 3-7 days

0

26

160cc Honda Short Shaft Engine

Note: (PS80903A)

$

$

Not available

26

160cc Honda Engine

Note: (PS80903B)

$

$

Not available

27

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

28

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

29

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

30

Homelite 308706006

Detergent Nozzle

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 308103003

Filter Screen

$

$

Currently unavailable

32

Homelite 940786008

Wand Label

$

$

Not available

33

Homelite 940778007

Hot Surface Label

$

$

Not available

34

Homelite 940617038

Pump Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 940971021

Hang Tag (Engine Oil Fill)

$

$

Not available

36

Homelite 940617039

Engine Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 940654081

Warning Label

$

$

Not available

38

Homelite 940779016

Performance Label

$

$

Not available

39

Homelite 940599015

Data Label

Note: (PS80903A)

$

$

Currently unavailable

39

Homelite 940599016

Data Label

Note: (PS80903B)

$

$

Currently unavailable

40

Homelite 940786006

Wand Label (Max Rating)

$

$

Not available

41

Homelite 940654084

Trigger Handle Warning Label

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940654089

Warning Label (French/Spanish)

$1.49

$

In Stock, only 1 left!

0

43

Homelite 940654088

Warning Label (Combustion)

$1.49

$

In Stock, only 3 left!

0

44

Homelite 941486002

Warning Label (Inquiries)

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940608005

Label (Powered by Honda)

$

$

Currently unavailable

46

Homelite 310664001

Bungee Cord and Bead Assembly

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 308316002

Wand Holder

$

$

Not available

48

Homelite 570554005

Engine Isolator

$

$

Not available

49

Homelite 308862003

Outlet Tube

Note: (PS80903A)

$5.49

$

Usually ships in 3-7 days

0

50

Homelite 940601001

Wheel Label (25 psi max)

$

$

Not available

51

Homelite 310606001

Vent Cap

$3.99

$

Usually ships in 3-7 days

0

52

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

53

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

Homelite 987000534

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 987000535

Replacement Parts List

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0
