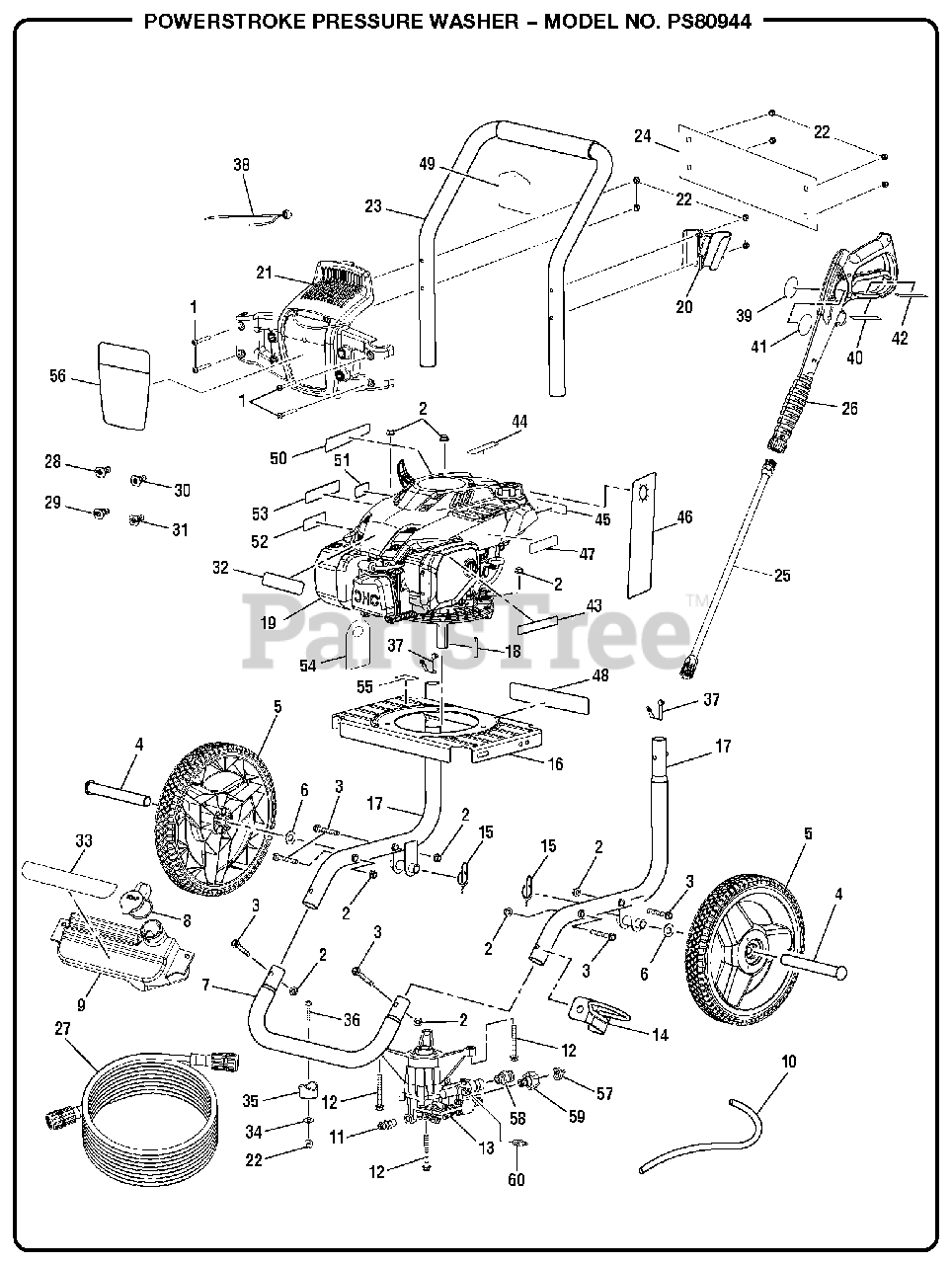

PS 80944 - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661501002

Screw (1/4-20 x 2.27 in., T30 Torx Hd.)
(Superseded to 660592006)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

3

Homelite 660962001

Bolt (M8 x 55 mm)
(Superseded to 660969001)

$

$

Not available

4

Homelite 620599007

Axle

$2.49

$

In Stock, only 2 left!

0

5

Homelite 308451038

Wheel

$25.99

$

Usually ships in 3-7 days

0

6

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310742011

Front Frame Assembly

Note: (Incl. Key No. 22 and 34-36)

$11.99

$

Usually ships in 3-7 days

0

8

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

9

Homelite 580875008

Soap Tank

$

$

Not available

10

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

11

Homelite 678169004

Thermal Release Valve

$

$

Not available

12

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 12

0

13

Homelite 308653045

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

14

Homelite 678243014

Wand Holder Loop

$

$

Not available

15

Homelite 678899001

Ring Clip

$

$

Not available

16

Homelite 638662003

Engine Plate

$32.99

$

Usually ships in 3-7 days

0

17

Homelite 308471035

Main Frame Assembly

Note: (Incl. Key No. 37)

$19.99

$

Usually ships in 3-7 days

0

18

Homelite 678041006

Output Shaft Key (35 mm)

$7.99

$

Usually ships in 3-7 days

0

19

Engine (Subaru 190V)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

20

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 310673006

Hose and Nozzle Assembly

Note: (Incl. Key No. 28-31 and 38)

$

$

Not available

22

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

23

Homelite 308638042

Handle w/Foam

$27.99

$

Usually ships in 3-7 days

0

24

Homelite 524408009

Quick Start Panel

$

$

Currently unavailable

25

Homelite 308506006

Spray Wand
(Superseded to 308506014)

$

$

Not available

26

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

27

Homelite 308835036

Hose (25 ft.)
(Superseded to 308835089)

$

$

Not available

28

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

29

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

30

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

31

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

32

Homelite 940608010

Subaru Label

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 941608004

Detergent Tank Label

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

35

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

36

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

37

Homelite 308421004

Spring Clip

$

$

Not available

38

Homelite 310664001

Bungee Cord Assembly

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 940786008

Label (Wand Logo)

$

$

Not available

40

Homelite 940654087

Fr/Sp Label (Wand Warning)

$

$

Not available

41

Homelite 940654084

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940786006

Label (Wand Rating)

$

$

Not available

43

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940873007

E85 Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940899003

Do Not Mix Label

$

$

Not available

46

Homelite 940971055

Warning Hangtag

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940698020

Engine Start Label

$

$

Currently unavailable

48

Homelite 941531021

Data Label

$

$

Currently unavailable

49

Homelite 961039005

Nozzle Hangtag

$

$

Not available

50

Homelite 941613005

Release Water Label

$

$

Currently unavailable

51

Homelite 940517009

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940680040

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 940947006

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 940889002

Oil Cap Hangtag

$1.49

$

Usually ships in 3-7 days

0

55

Homelite 940871002

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 940779080

Performance Label

$

$

Currently unavailable

57

Homelite 308662001

Filter Screen

$

$

Not available

58

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

59

Homelite 308861003

Inlet Tube

$12.99

$

Usually ships in 3-7 days

0

60

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

Note: Not Shown

$

$

Not available

Homelite 519314001

Funnel

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 901606031

Lubricant Bottle

Note: Not Shown

$

$

Currently unavailable

Homelite 988000955

Operator's Manual

Note: Not Shown

$

$

Not available
