PS 80945 A - PowerStroke 3,100 PSI Pressure Washer General Assembly Parts Diagram

3,100 PSI Pressure Washer

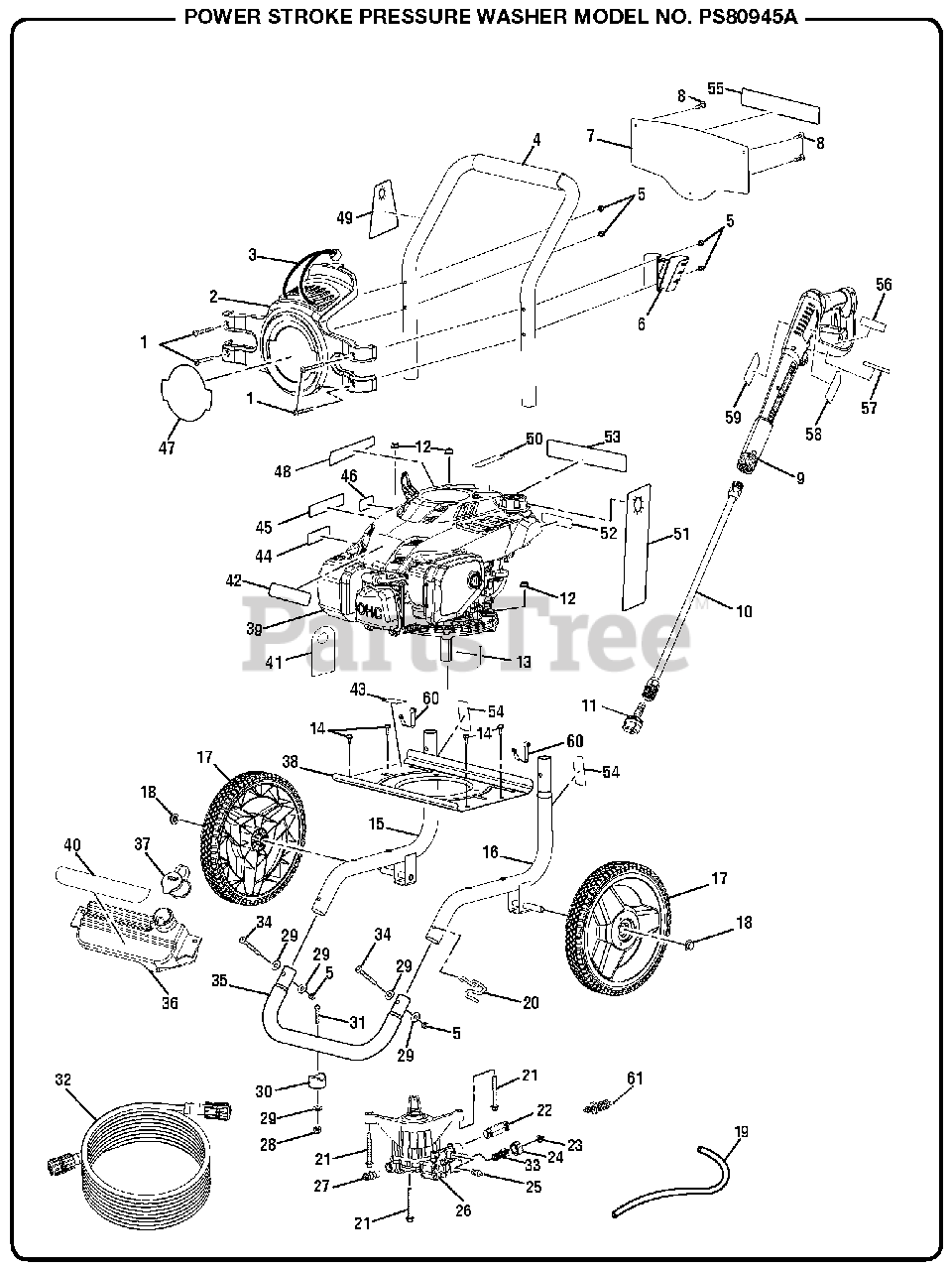

General Assembly Parts Diagram

  • Title

1

Homelite 661503016

Screw (M6 x 48 mm, T30 Torx Hd.)

$

$

Currently unavailable

2

Homelite 310673016

Hose and Nozzle Holder Assembly

$

$

Not available

3

Homelite 900333015

Wire Tie

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$27.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313007

Wand Holder

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 524408014

Instruction Panel

$

$

Not available

8

Homelite 660923016

Screw (#6-20 x 3/8 in., T10 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 308760028

Trigger Handle Assembly
(Superseded to 308760019)

$27.99

$

In Stock, only 1 left!

0

10

Homelite 308506006

Spray Wand Assembly
(Superseded to 308506014)

$

$

Not available

11

Homelite 310448006

Nozzle

$32.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Homelite 678041006

Output Shaft Key (35 mm)

$7.99

$

Usually ships in 3-7 days

0

14

Homelite 661505020

Bolt (M6 x 16 mm, Flange Hex Hd.)

$1.49

$

In Stock, Qty 9

0

15

Homelite 310704013

Main Frame Assembly (RH)

$22.99

$

Usually ships in 3-7 days

0

16

Homelite 310703012

Main Frame Assembly (LF)

$

$

Not available

17

Homelite 308451039

Wheel

$

$

Not available

18

Homelite 679957001

Push Cap Nut (1/2 in.)

$1.49

$

In Stock, only 3 left!

0

19

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

20

Homelite 678243014

Lower Wand Holder

$

$

Not available

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 12

0

22

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

23

Homelite 561404003

Inlet Filter Rubber Washer

$

$

Not available

24

Homelite 308861003

Inlet Tube

$12.99

$

Usually ships in 3-7 days

0

25

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

26

Homelite 308653059

Pump

$186.99

$

In Stock, only 1 left!

0

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

30

Homelite 570554002

Wear Pad

$1.49

$

In Stock, Qty 5

0

31

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

32

Homelite 308835066

Hose (25 ft., 3100 psi)
(Superseded to 308835089)

$

$

Not available

33

Homelite 525540001

Water Inlet Filter

$10.99

$

Usually ships in 3-7 days

0

34

Homelite 661834002

Bolt (M6 x 55 mm, T30 Torx Hd.)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 310742011

Front Frame

$11.99

$

Usually ships in 3-7 days

0

36

Homelite 580875008

Soap Tank

$

$

Not available

37

Homelite 310650004

Soap Tank Cap

$1.99

$

In Stock, Qty 5

0

38

Homelite 638662027

Engine Plate

$18.99

$

In Stock, only 1 left!

0

39

Engine (Subaru EA190)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

40

Homelite 941608004

Soap Dilution Label

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 940889002

Dipstick Hang tag

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940608010

Subaru Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940871002

Engine Oil Fill Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940947006

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940680040

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940517009

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 940779081

Performance Label

$

$

Not available

48

Homelite 941613005

Pressure Relase Label

$

$

Currently unavailable

49

Homelite 941609001

5- In- 1 Nozzle Hangtag

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 940873007

E85 Label

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940971055

Danger Hangtag

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940899003

Gas Only Label

$

$

Not available

53

Homelite 940971069

Danger Label

$

$

Not available

54

Homelite 941531065

Data Label

$

$

Currently unavailable

55

Homelite 524408010

Quick Start Panel

$

$

Currently unavailable

56

Homelite 940654089

Label (Trigger Handle Warning, French & Spanish)

$1.49

$

In Stock, only 1 left!

0

57

Homelite 940786020

Label (Trigger Handle Specifications)
(Superseded to 940786006)

$

$

Not available

58

Homelite 940654083

Label (Trigger Handle Warning)

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 940786024

Label (Trigger Handle Logo)

$

$

Not available

60

Homelite 308421004

Handle Spring Clip

$

$

Not available

61

Homelite 310924003

Unloader Valve

$17.99

$

Usually ships in 3-7 days

0

Homelite 990000581

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 990000582

Quick Start Guide

Note: Not Shown

$

$

Currently unavailable
