PS 901200 - PowerStroke 1200 Watt Generator Figure D Parts Diagram

1200 Watt Generator

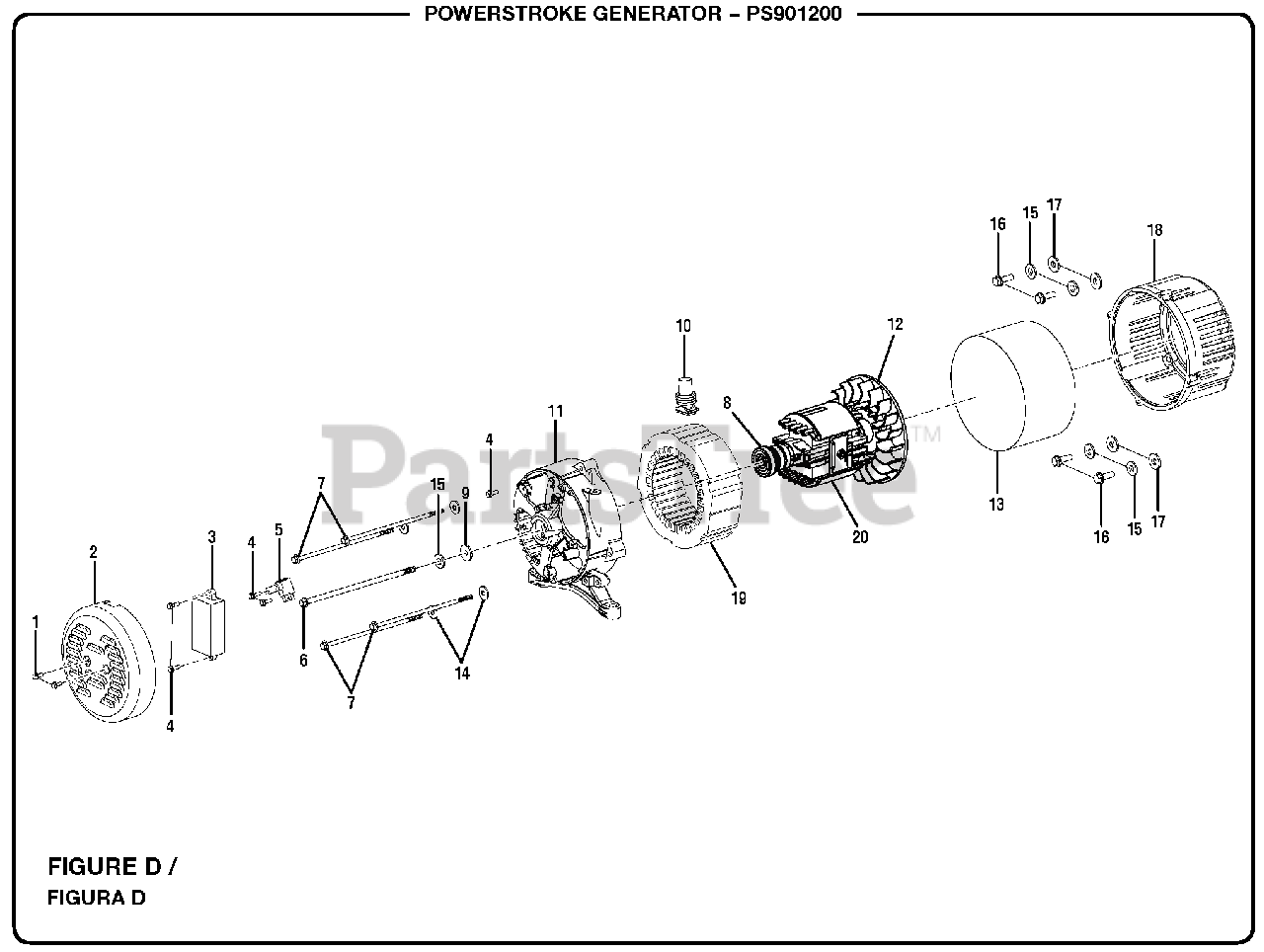

Figure D Parts Diagram

  • Title

1

Homelite 511050501201

Bolt (M5 x 12 mm, Flange Hd.)

$

$

Not available

2

Homelite 029030300203

Brush Cover

$

$

Not available

3

Homelite 029030610202

Automatic Voltage Regulator

$22.99

$

Usually ships in 3-7 days

0

4

Homelite 511050501601

Bolt (M5 x 16 mm, Flange Hd.)

$

$

Not available

5

Homelite 029030700100

Brush Assembly

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 511010818001

Rotor Bolt (M8 x 180 mm)

$

$

Not available

7

Homelite 511050610501

Stator Bolt (M6 x 105 mm)

$

$

Not available

8

Homelite 681963002

Ball Bearing

$

$

Not available

9

Homelite 513040800006

Washer (M8)

$

$

Not available

10

Homelite 570766009

Rubber Boot

$

$

Not available

11

Homelite 029030400205

Bearing Support

$

$

Not available

12

Homelite 307471002

Fan

$

$

Not available

13

Homelite 029030100101

Cover

$

$

Not available

14

Homelite 513020600002

Spring Washer (M6)

$

$

Not available

15

Homelite 513020800002

Spring Washer (M8)

$

$

Not available

16

Homelite 511050802001

Bolt (M8 x 20 mm, Flange Hd.)

$

$

Not available

17

Homelite 513010800001

Washer (M8)

$

$

Not available

18

Homelite 029030200202

Adaptor Housing

$

$

Not available

19

Homelite 062014430031

Stator

$

$

Not available

20

Homelite 062016120005

Rotor

$

$

Not available
