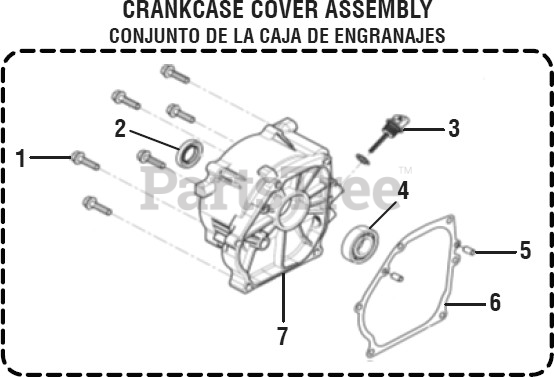

PS 903500 A - PowerStroke 3500 Watt Generator General Assembly - Crankcase Cover Assembly Parts Diagram

3500 Watt Generator

General Assembly - Crankcase Cover Assembly Parts Diagram

  • Title

1

Homelite 90001-0832-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 90682-Z300110

Oil Seal
(Superseded to 90682-Z300110-0000)

$2.49

$

In Stock, only 1 left!

0

3

Homelite 15010-Z010120

Oil Dipstick Assembly
(Superseded to 15010-Z010120-QG00)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 90548-0205-CL

Ball Bearing

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 90502-0912-00

Pin

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 11001-Z440110

Crankcase Gasket
(Superseded to 11001-Z440110-0000)

$4.49

$

In Stock, only 1 left!

0

7

Homelite 11411-Z530110

Crankcase Cover
(Superseded to 11411-Z530110-0000)

$43.99

$

Usually ships in 3-7 days

0
