PS 903500 D (090079254) - PowerStroke 3500 Watt Generator General Assembly (LOWER SHROUD) Parts Diagram

3500 Watt Generator

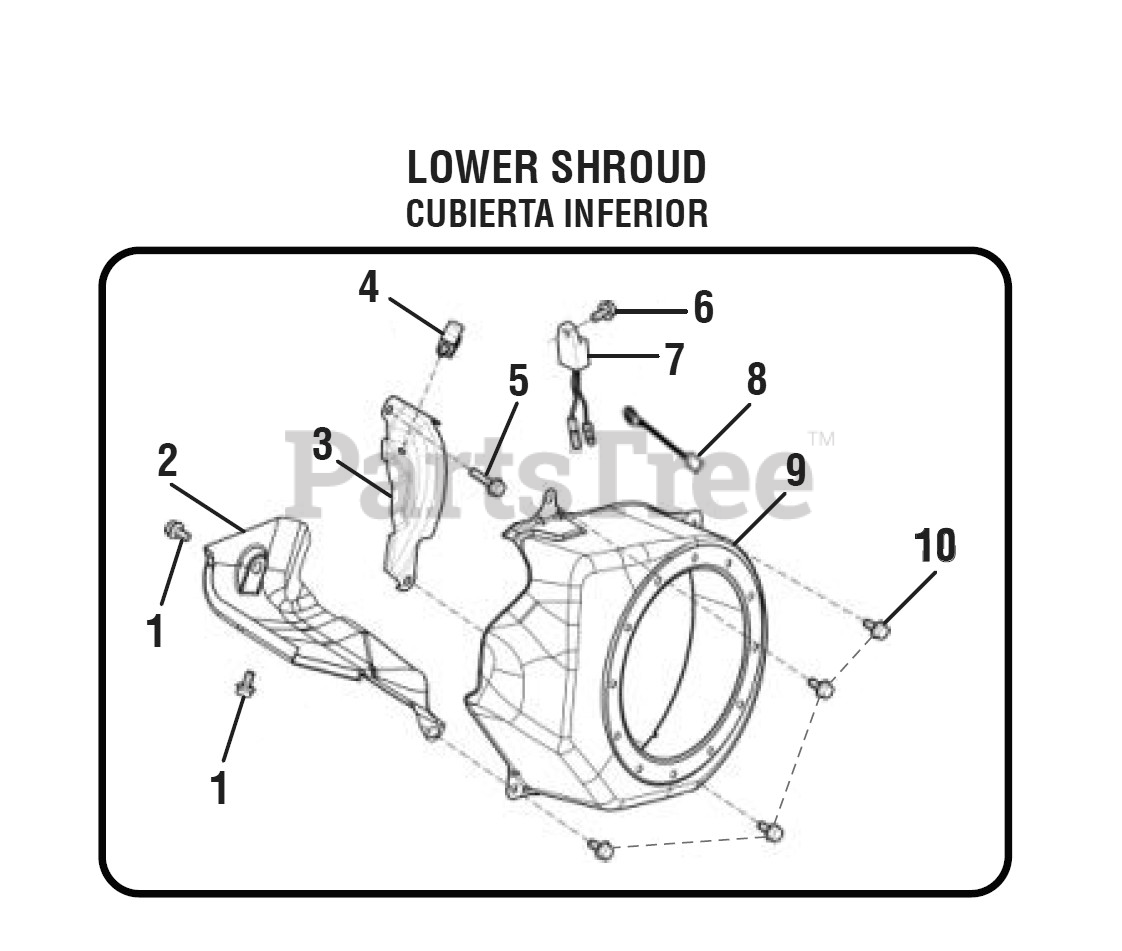

General Assembly (LOWER SHROUD) Parts Diagram

  • Title

1

Homelite 90001-0610-01

Bolt

$

$

Not available

2

Homelite 19304-Z010110

Cylinder Body Shroud
(Superseded to 19304-Z010110-0000)

$

$

Not available

3

Homelite 19340-Z010510

Lower Shield
(Superseded to 19340-Z010510-0000)

$

$

Not available

4

Homelite 90740-Z010110

Collar
(Superseded to 90740-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 90001-0616-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 90001-0612-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 37050-Z010210

Oil Protector
(Superseded to 37050-Z010210-0000)

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 35541-Y2D0110

Engine Stop Wire
(Superseded to 35540-Z060130-QG00)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 28110-Z010410

Shroud

$15.99

$

Usually ships in 3-7 days

0

10

Homelite 90001-0612-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

Homelite 120967001

High Altitude Kit, Ruixing Carburetor (3000 - 6000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120967002

High Altitude Kit, Ruixing Carburetor 6000 - 8000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120968031

High Altitude Kit, Huayi Carburetor (3000 - 6000 ft, Not Included)

Note: NOT SHOWN

$4.99

$

Usually ships in 3-7 days

0

Homelite 120968032

High Altitude Kit, Huayi Carburetor (6000 - 8000 ft, Not Included)

Note: NOT SHOWN

$4.49

$

Usually ships in 3-7 days

0
