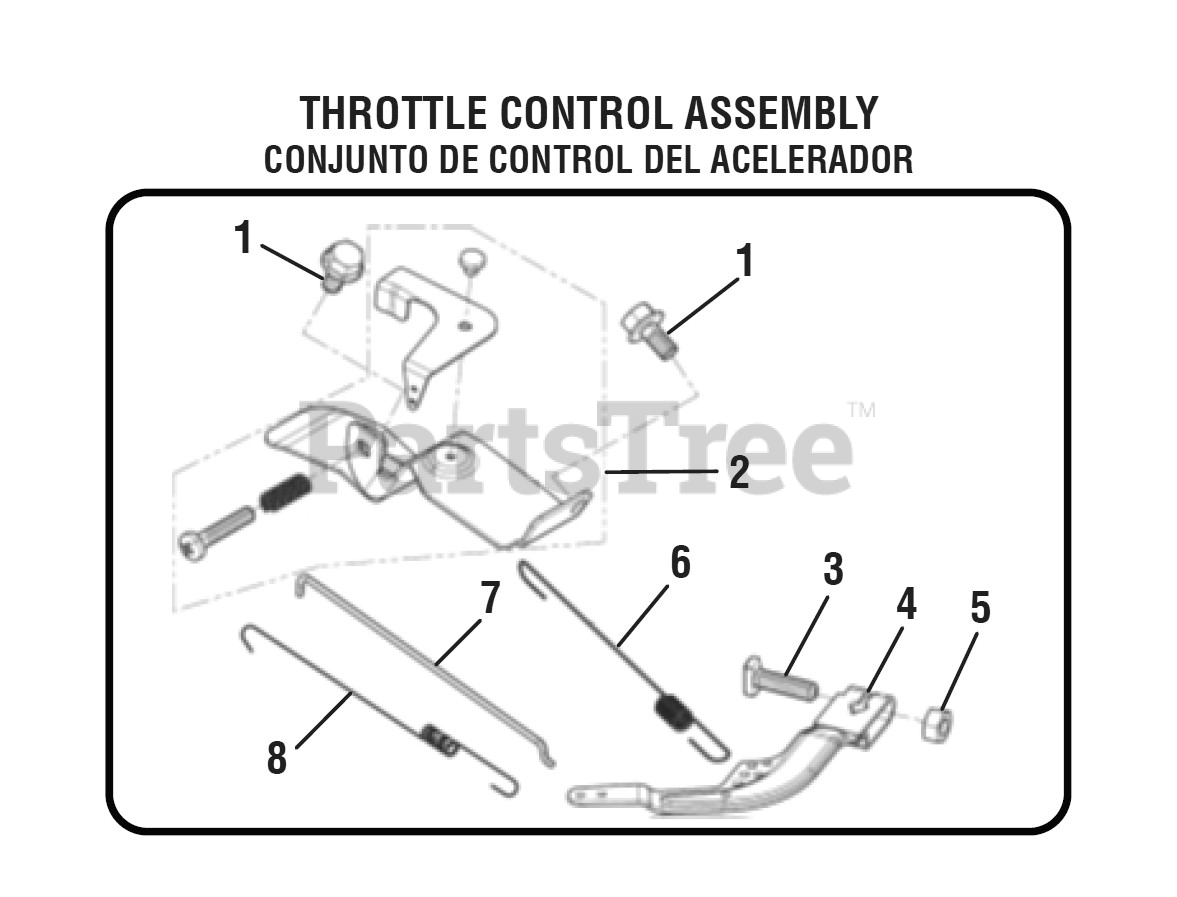

PS 903500 D (090079254) - PowerStroke 3500 Watt Generator General Assembly (THROTTLE CONTROL ASSEMBLY) Parts Diagram

3500 Watt Generator

General Assembly (THROTTLE CONTROL ASSEMBLY) Parts Diagram

  • Title

1

Homelite 90001-0610-01

Bolt

$

$

Not available

2

Homelite 16520-Z040120

Throttle Control Assembly

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 16072-Z010110

Governor Support Bolt
(Superseded to 16072-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 16070-Z010110

Governor Support Assembly
(Superseded to 16070-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 90305-0600-31

Nut

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 16063-Z010310

Governor Spring
(Superseded to 16063-Z010310-0000)

$1.99

$

In Stock, Qty 5

0

7

Homelite 16062-Z010110

Governor Rod
(Superseded to 16062-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 16012-Z010110

Throttle Valve Return Spring

$1.49

$

In Stock, only 3 left!

0

Homelite 120967001

High Altitude Kit, Ruixing Carburetor (3000 - 6000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120967002

High Altitude Kit, Ruixing Carburetor 6000 - 8000 ft, Not Included)

Note: NOT SHOWN

$

$

Not available

Homelite 120968031

High Altitude Kit, Huayi Carburetor (3000 - 6000 ft, Not Included)

Note: NOT SHOWN

$4.99

$

Usually ships in 3-7 days

0

Homelite 120968032

High Altitude Kit, Huayi Carburetor (6000 - 8000 ft, Not Included)

Note: NOT SHOWN

$4.49

$

Usually ships in 3-7 days

0
