PS 903500 - PowerStroke 3500 Watt Generator General Assembly - Camshaft Assembly Parts Diagram

3500 Watt Generator

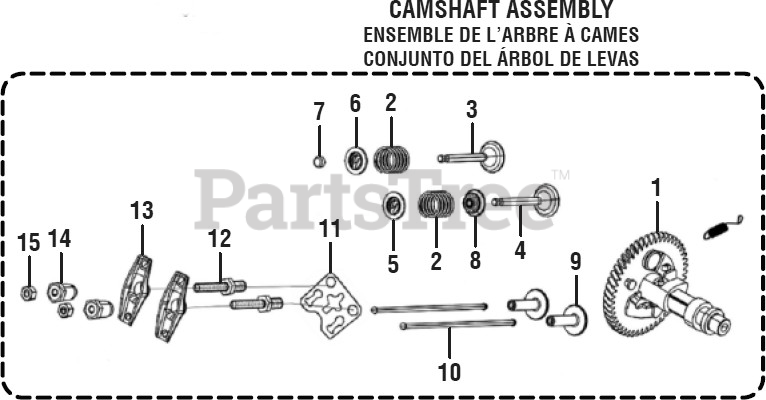

General Assembly - Camshaft Assembly Parts Diagram

  • Title

1

Homelite 14200-Z300210

Camshaft Assembly

$21.99

$

Usually ships in 3-7 days

0

2

Homelite 12103-Z010110

Valve Spring
(Superseded to 12103-Z010110-0000)

$1.49

$

In Stock, only 4 left!

0

3

Homelite 12121-Z010110

Exhaust Valve
(Superseded to 12121-Z010120-0000)

$

$

Not available

4

Homelite 12111-Z010110

Intake Valve

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 12112-Z010110

Valve Spring Seat

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 12107-Z010110

Retainer, Exhaust Valve

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 12104-Z010110

Valve Rotator
(Superseded to 12104-Z010110-0000)

$2.99

$

Usually ships in 3-7 days

0

8

Homelite 12101-Z010110

Seal Guide

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 14081-Z040110

Valve Tappet
(Superseded to 14081-Z040110-0000)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 14071-Z010110

Valve Lifter

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 14090-Z010110

Lifter Stop Plate Assembly
(Superseded to 14090-Z010110-0000)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 14313-Z010110

Valve Adjusting Bolt
(Superseded to 14313-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 14311-Z010110

Valve Rocker
(Superseded to 14311-Z010110-0000)

$

$

Not available

14

Homelite 14314-Z010110

Valve Adjusting Nut
(Superseded to 14314-Z010110-0000)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 14312-Z010110

Valve Lock Nut
(Superseded to 14312-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0
