PS 905000 A - PowerStroke 5000 Watt Generator Figure B Parts Diagram

5000 Watt Generator

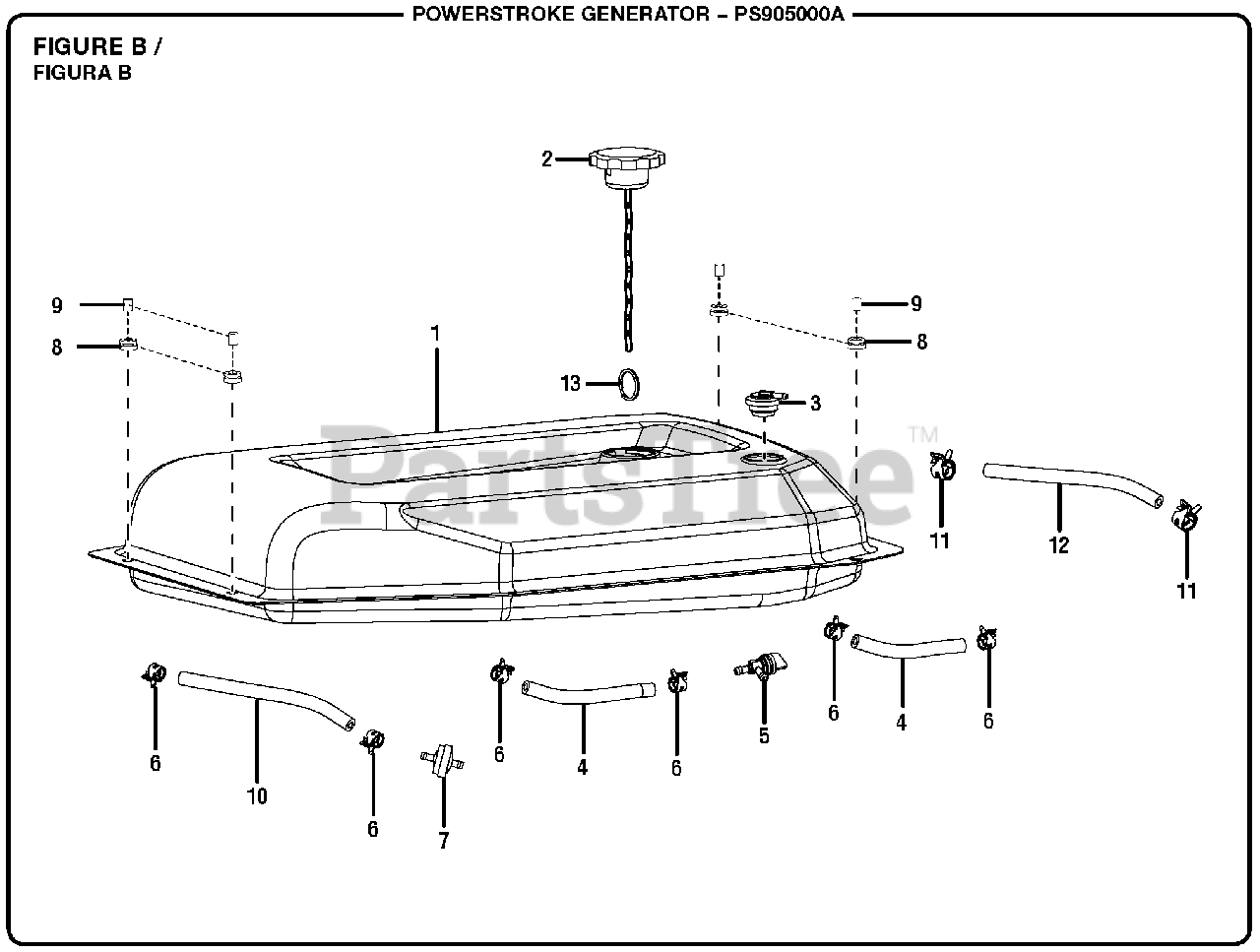

Figure B Parts Diagram

  • Title

1

Homelite 310711097

Fuel Tank

$447.99

$

In Stock, only 1 left!

0

2

Homelite 310720026

Fuel Cap

$47.99

$

Usually ships in 3-7 days

0

3

Homelite 310854002

Fuel Tank Vapor Vent

$

$

Not available

4

Homelite 570358071

Fuel Line (6.4 mm x 72 mm)

$

$

Not available

5

Homelite 308459002

Fuel Shut Off Valve

$38.99

$

In Stock, only 2 left!

0

6

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$3.99

$

In Stock, only 2 left!

0

7

Homelite 308733008

Fuel Filter

$8.99

$

In Stock, only 3 left!

0

8

Homelite 519832003

Bushing (Fuel Tank Isolator)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 518528002

Spacer (Fuel Tank Isolator)

$

$

Not available

10

Homelite 570358070

Fuel Line (6.4 mm x 72 mm)

$17.99

$

In Stock, only 1 left!

0

11

Homelite 678409003

Fuel Line Clamp (7/16 in.)

$2.49

$

In Stock, only 3 left!

0

12

Homelite 570358076

Vapor Hose

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0
