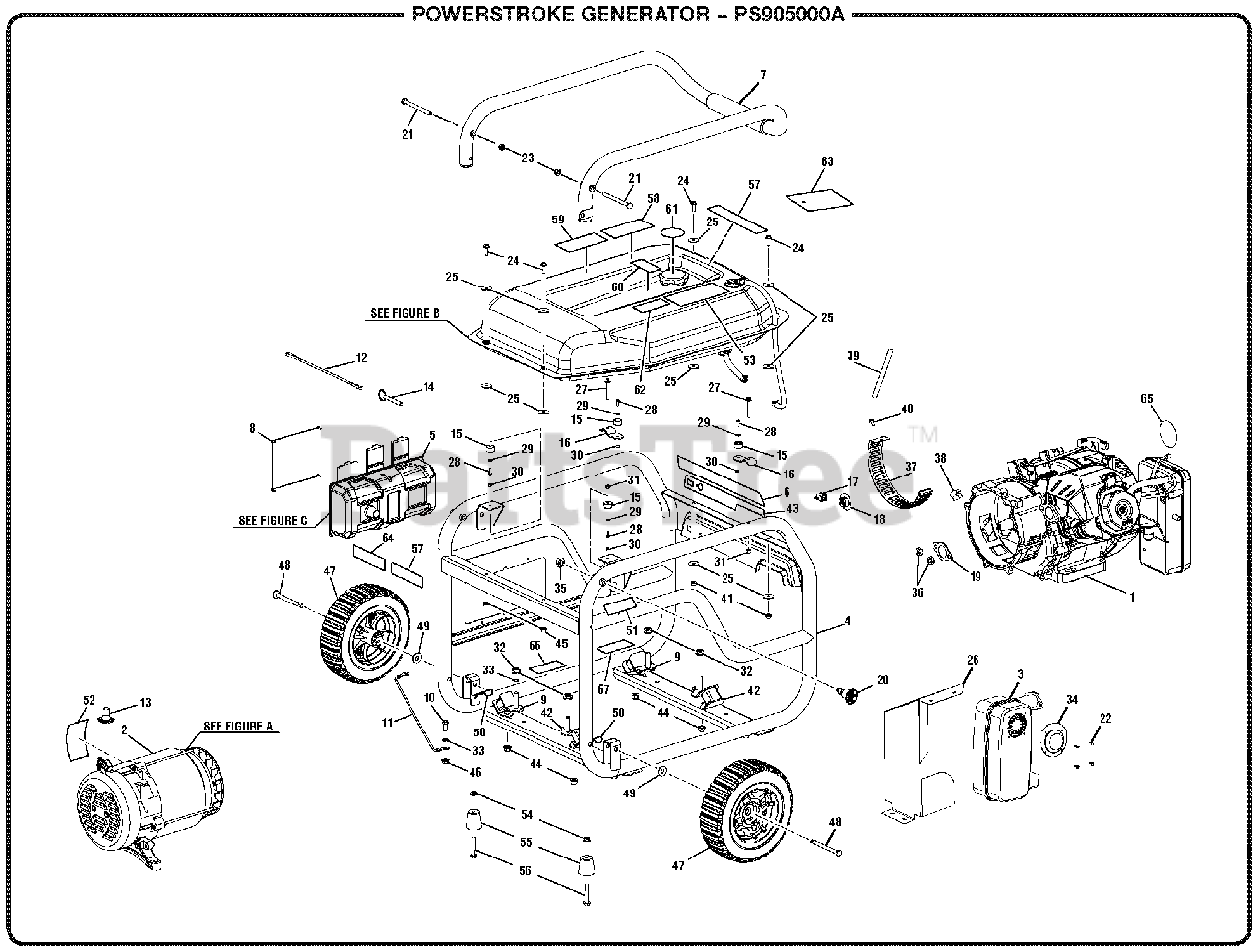

PS 905000 A - PowerStroke 5000 Watt Generator General Assembly A Parts Diagram

5000 Watt Generator

General Assembly A Parts Diagram

  • Title

1

Homelite 309594053

Engine (390cc)

$

$

Currently unavailable

2

Homelite 310227036

Generator Head Assembly (See Fig. A)

$1290.99

$

Usually ships in 3-7 days

0

3

Homelite 309322023

Muffler

$

$

Not available

4

Homelite 308581048

Frame Assembly

$

$

Not available

5

Homelite 290403033

Control Panel Assembly (See Fig. C)

$

$

Not available

6

Homelite 940779077

Logo Label

$

$

Not available

7

Homelite 310224042

Handle Assembly

$61.99

$

Usually ships in 3-7 days

0

8

Homelite 660598001

Screw (6-20 x 3/8 in.)

$3.49

$

In Stock, only 2 left!

0

9

Homelite 679940005

Engine Isolator (Right)

$

$

Not available

10

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 290404001

Ground Wire Assembly

$

$

Not available

12

Homelite 310715001

Lanyard

$

$

Not available

13

Homelite 570766004

Rubber Sleeve

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 310712001

Release Pin

$1.99

$

In Stock, only 4 left!

0

15

Homelite 570712001

Handle Bumper

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678285004

Handle Support Bracket

$

$

Not available

17

Homelite 760700002

On/Off Switch
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

18

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, Qty 5

0

19

Homelite 678728005

Muffler Gasket

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 308910005

Handle Release Pin

$27.99

$

In Stock, only 1 left!

0

21

Homelite 678522006

Pivot Pin (Handle)

$15.99

$

Usually ships in 3-7 days

0

22

Homelite 661306001

Screw (8-32 x 3/8 in.)

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 661836004

Bolt (M6 x 20 mm, Hex Washer Hd.)

$

$

Not available

25

Homelite 638422005

Washer (M6)

$

$

Currently unavailable

26

Homelite 638497029

Heat Shield

$49.99

$

Usually ships in 3-7 days

0

27

Homelite 660835005

Bolt (M6 x 45 mm)

$

$

Currently unavailable

28

Homelite 661555001

Bolt (M4 x 12.5 mm, Hex Hd.)

$

$

Not available

29

Homelite 678600002

Washer (M4)

$

$

Not available

30

Homelite 678610001

Lock Nut (M4)
(Superseded to 678610002)

$

$

Not available

31

Homelite 678460002

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 678145002

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 638704001

Star Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 638147003

Spark Arrestor

$

$

Not available

35

Homelite 678518002

Lock Nut (1/2-20)

$5.49

$

Usually ships in 3-7 days

0

36

Homelite 678355001

Hex Nut (M8)
(Superseded to 986163001)

$

$

Not available

37

Homelite 638983001

Fan Cover (Generator Head)

$

$

Not available

38

Homelite 563030001

Plug (Generator Head)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 700152005

Heat Shrink Tube

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 660927001

Screw (M5 x 10 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 678774006

Flange Nut (M6)

$

$

Currently unavailable

42

Homelite 679940003

Engine Isolator (Left)

$14.99

$

Usually ships in 3-7 days

0

43

Homelite 940734115

Start Label

$

$

Currently unavailable

44

Homelite 678297001

Lock Nut (M8)

$

$

Not available

45

Homelite 678016001

Hex Nut (1/4-20)
(Superseded to 81242)

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 678145002

Hex Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 308451033

Wheel

$125.99

$

Usually ships in 3-7 days

0

48

Homelite 681866002

Axle Bolt

$23.99

$

Usually ships in 3-7 days

0

49

Homelite 638422004

Washer (M10)

$

$

Not available

50

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940678297

Data Label

$

$

Currently unavailable

53

Homelite 940654199

Danger Label

$

$

Not available

54

Homelite 678774004

Lock Nut (M8)

$2.49

$

In Stock, only 4 left!

0

55

Homelite 562856010

Foot Assembly

$

$

Not available

56

Homelite 661505003

Bolt (M8 x 1-1/4)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 940974089

Fire Distance Label (Eng/Sp)

$3.49

$

Usually ships in 3-7 days

0

58

Homelite 940515016

CPSC Label

$13.99

$

Usually ships in 3-7 days

0

59

Homelite 940974007

Fire Danger Label

$

$

Not available

60

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

61

Homelite 940872006

Fuel Stabilizer Label

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 940947003

Combustion Label (Eng/Sp)

$

$

Not available

63

Homelite 940971040

Warning Hangtag

$

$

Not available

64

Homelite 940513001

Ground Warning Label

$12.99

$

Usually ships in 3-7 days

0

65

Homelite 940633018

Recoil Housing Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940708019

Lubricant Label

$3.49

$

Usually ships in 3-7 days

0

67

Homelite 941707001

Inquires label

$2.49

$

Usually ships in 3-7 days

0

Homelite 901606029

Lubricant (SAE 10W30)

Note: NOT SHOWN

$11.99

$

Usually ships in 3-7 days

0

Homelite 990000295

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable
