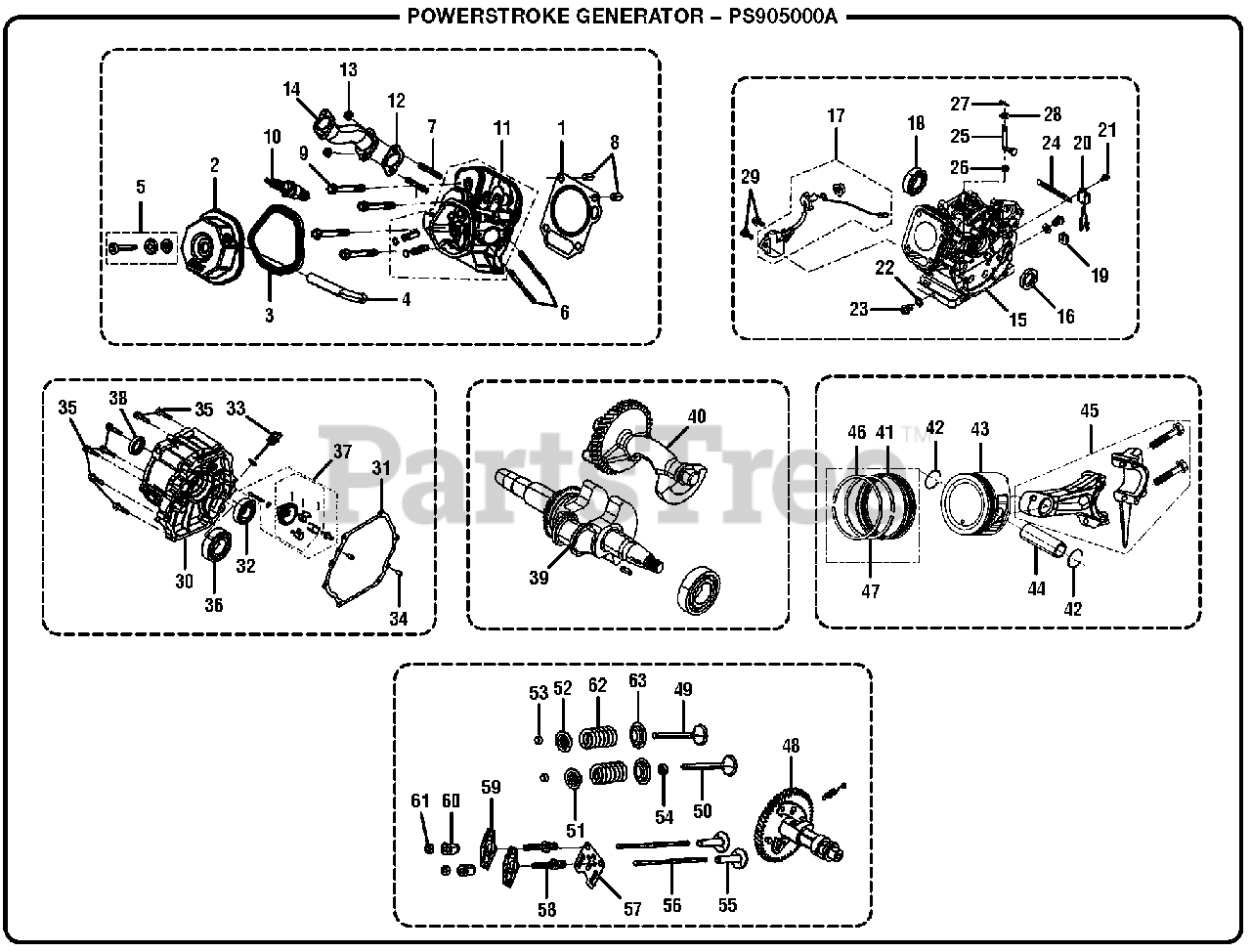

PS 905000 A - PowerStroke 5000 Watt Generator General Assembly B Parts Diagram

5000 Watt Generator

General Assembly B Parts Diagram

  • Title

CYLINDER HEAD ASSEMBLY

$

$

Not available

1

Homelite 12131-Z100110

Cylinder Head Gasket

$6.49

$

In Stock, only 1 left!

0

2

Homelite 12410-Z580110

Cylinder Head Cover

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 12004-Z580110

Cylinder Head Cover Gasket

$

$

Not available

4

Homelite 17004-Z080320

Breather Tube

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 12030-Z310110

Bolt

$3.99

$

Usually ships in 3-7 days

0

6

Homelite 90204-Z100410

Threaded Stud

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 90203-Z010110

Threaded Stud
(Superseded to 90203-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 90502-1220-00

Pin

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 12003-Z080110

Bolt

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 30010-Z010210

Spark Plug
(Superseded to 30010-Z010210-0000)

$4.49

$

In Stock, only 3 left!

0

11

Homelite 12140-Z190220

Cylinder Head Assembly

$111.99

$

Usually ships in 3-7 days

0

12

Homelite 18001-Z190110

Exhaust Outlet Gasket

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 90303-0800-31

Nut

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 18150-Z100210

Exhaust Pipe

$11.99

$

Usually ships in 3-7 days

0

CRANKCASE ASSEMBLY

$

$

Not available

15

Homelite 11310-Z100310

Crankcase Assembly

$173.99

$

Usually ships in 3-7 days

0

16

Homelite 90682-Z310110

Oil Seal

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 37060-Z080110

Engine Oil Sensor

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 90548-0202-00

Ball Bearing

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 28101-Z080110

Rubber Plug

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 37050-Z010210

Oil Protector
(Superseded to 37050-Z010210-0000)

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 90001-0612-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 90412-Z080110

Washer

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 11007-Z080110

Drain Plug

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 90684-Z030120

Clip

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 16061-Z100110

Governor Arm

$2.99

$

Usually ships in 3-7 days

0

26

Homelite 90682-Z100210

Oil Seal

$

$

Not available

27

Homelite 90501-Z010110

Pin
(Superseded to 90501-Z010110-0000)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 90412-Z080210

Washer

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 90001-0616-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

CRANKCASE COVER ASSEMBLY

$

$

Not available

30

Homelite 11411-Z100610

Crankcase Cover

$

$

Not available

31

Homelite 11001-Z100210

Crankcase Gasket

$8.99

$

Usually ships in 3-7 days

0

32

Homelite 90548-0202-00

Ball Bearing

$5.99

$

Usually ships in 3-7 days

0

33

Homelite 15010-Z080320

Oil Dipstick Assembly

$3.99

$

Usually ships in 3-7 days

0

34

Homelite 90502-0812-00

Pin

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 90001-0840-01

Bolt

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 90547-0207-00

Ball Bearing

$15.99

$

Usually ships in 3-7 days

0

37

Homelite 16400-Z100110

Governor Gear Assembly

$7.99

$

Usually ships in 3-7 days

0

38

Homelite 90682-Z310110

Oil Seal

$4.49

$

Usually ships in 3-7 days

0

CRANKSHAFT ASSEMBLY

$

$

Not available

39

Homelite 13300-Z100110

Crankshaft Assembly

$

$

Not available

40

Homelite 13401-Z100110

Balancing Shaft

$37.99

$

Usually ships in 3-7 days

0

PISTON ASSEMBLY

$

$

Not available

41

Homelite 13210-Z100210

Oil Ring Kit

$10.99

$

Usually ships in 3-7 days

0

42

Homelite 13122-Z100110

Piston Pin Clip

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 13111-Z100210

Piston

$36.99

$

Usually ships in 3-7 days

0

44

Homelite 13121-Z100110

Piston Pin

$3.49

$

Usually ships in 3-7 days

0

45

Homelite 13010-Z100110

Connecting Rod

$27.99

$

Usually ships in 3-7 days

0

46

Homelite 13201-Z100210

The First Ring

$10.99

$

Usually ships in 3-7 days

0

47

Homelite 13202-Z100210

The Second Ring

$9.49

$

Usually ships in 3-7 days

0

CAMSHAFT ASSEMBLY

$

$

Not available

48

Homelite 14200-Z190310

Camshaft Assembly

$66.99

$

Usually ships in 3-7 days

0

49

Homelite 12121-Z190110

Exhaust Valve

$11.99

$

Usually ships in 3-7 days

0

50

Homelite 12111-Z100110

Intake Valve

$

$

Not available

51

Homelite 12112-Z080110

Valve Spring Seat

$3.49

$

In Stock, only 1 left!

0

52

Homelite 12107-Z080110

Exhaust Valve Retainer

$4.99

$

In Stock, only 1 left!

0

53

Homelite 12104-Z080110

Valve Rotator

$4.99

$

Usually ships in 3-7 days

0

54

Homelite 12101-Z080110

Seal Guide

$3.99

$

Usually ships in 3-7 days

0

55

Homelite 14081-Z080110

ValveTappet

$

$

Not available

56

Homelite 14070-Z100110

Valve Lifter Assembly

$2.99

$

Usually ships in 3-7 days

0

57

Homelite 14090-Z080110

Stop Plate Assembly

$1.99

$

In Stock, only 2 left!

0

58

Homelite 14313-Z010110

Valve Adjusting Bolt
(Superseded to 14313-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 14311-Z080110

Valve Rocker

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 14314-Z010110

Valve Adjusting Nut
(Superseded to 14314-Z010110-0000)

$1.99

$

Usually ships in 3-7 days

0

61

Homelite 14312-Z010110

Valve Lock Nut
(Superseded to 14312-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 12103-Z080110

Valve Spring

$1.99

$

In Stock, only 3 left!

0

63

Homelite 12105-Z080110

Valve Spring Retainer

$1.49

$

In Stock, only 1 left!

0
