PS 905700 D (090930259) - PowerStroke 5700 Watt Generator, Rev 01 (2016-09) Figure D (Frame Assembly) Parts Diagram

5700 Watt Generator, Rev 01

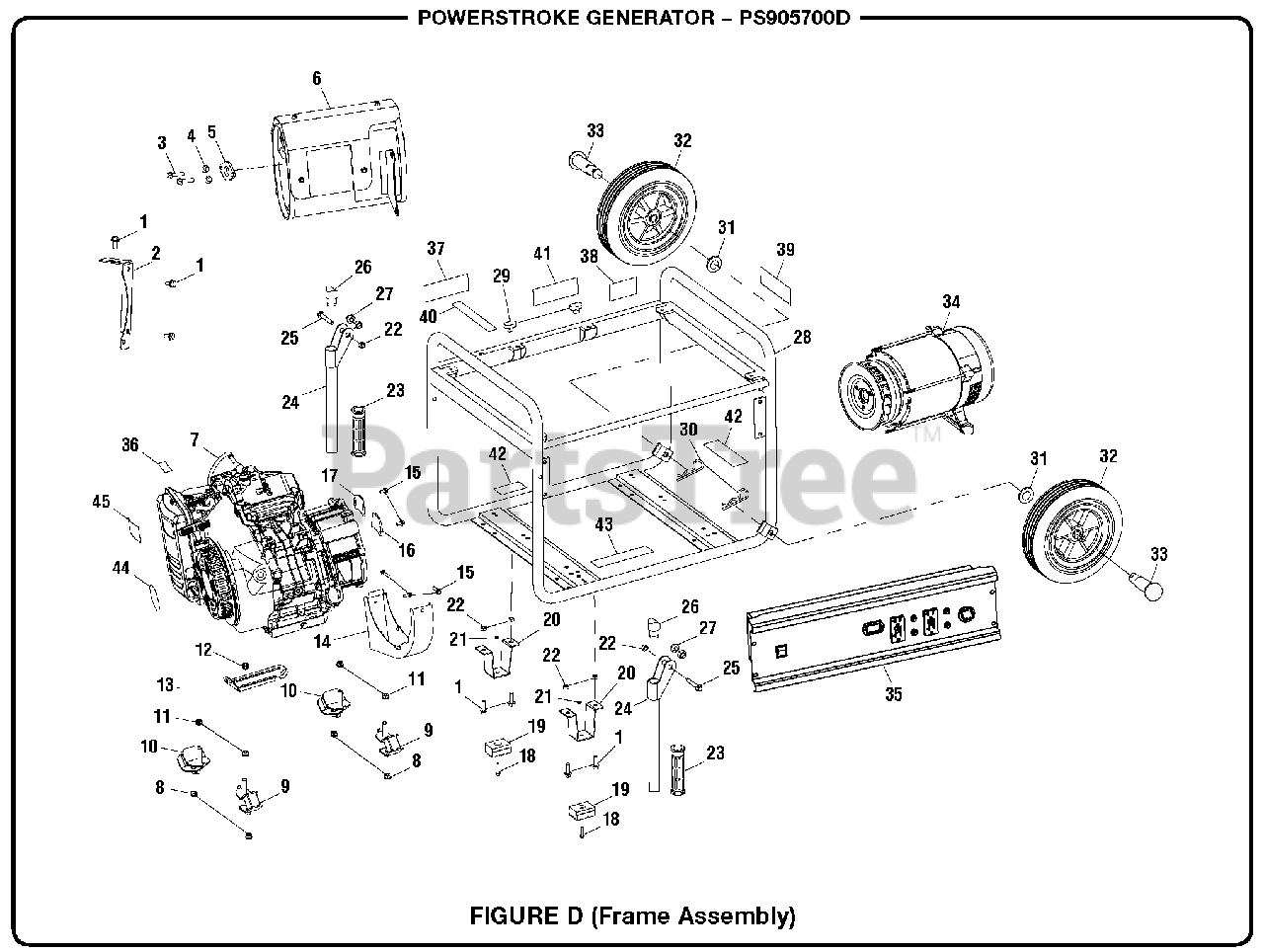

Figure D (Frame Assembly) Parts Diagram

  • Title

1

Homelite GBT16674-B8-16

Bolt

$

$

Not available

2

Homelite DF3800H-14404-B

Muffler Bracket

$

$

Not available

3

Homelite GBT16674-B8-30

Bolt

$

$

Not available

4

Homelite GBT93-LW-8

Spring Washer
(Superseded to D94206)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite DJ188FD-14010-C

Gasket (Muffler)

$

$

Not available

6

Homelite DF5000H-14400-H

Muffler

$

$

Not available

7

Engine

$

$

Not available

8

Homelite GB6177-N-8

Nut

$

$

Not available

9

Homelite DF3800H-31201-A

Isolator A

$11.99

$

Usually ships in 3-7 days

0

10

Homelite DF3800H-31202-A

Isolator B

$13.99

$

Usually ships in 3-7 days

0

11

Nut

$

$

Not available

12

Nut

$

$

Not available

13

Homelite DF6500H-14205-A

Air Filter Bracket

$

$

Not available

14

Homelite DF6500H-11032-A

Guard Cover (Crankcase)

$

$

Not available

15

Homelite GBT820-B5-12

Screw

$

$

Not available

16

Homelite DF6500H-33016-A

Dustproof Sheet A

$

$

Not available

17

Homelite DF6500H-33016-B

Dustproof Sheet B

$

$

Not available

18

Bolt

$

$

Not available

19

Homelite DF9000H-31204-A

Vibration Isolator

$5.49

$

Usually ships in 3-7 days

0

20

Homelite DF6500H-31020-A-0

Frame Support

$

$

Currently unavailable

21

Homelite GB889-N-6

Lock Nut

$

$

Not available

22

Homelite GB889-N-8

Lock Nut

$

$

Not available

23

Homelite DF6500H-31016-A

Rubber Handle

$

$

Not available

24

Homelite DF6500H-31058-A-1

Handle Assembly

$

$

Currently unavailable

25

Homelite 91350

Bolt

$

$

Currently unavailable

26

Homelite DF6500H-31073-A

Handle Plug

$

$

Not available

27

Homelite DF6500H-31074-A

Handle Bushing

$

$

Not available

28

Homelite 308581058

Frame Assembly

$

$

Not available

29

Homelite DF2500H-14304-A

Vibration Isolation Pad

$

$

Not available

30

Homelite WX3250-31019-B

Hitch Pin

$

$

Not available

31

Homelite GBT96-W-12

Flat Washer

$

$

Not available

32

Homelite DF5000H-31017-B

Wheel

$

$

Not available

33

Homelite 8110444

Axle

$

$

Not available

34

Homelite 310227019

Generator Head

$879.99

$

Usually ships in 3-7 days

0

35

Homelite 290403072

Control Panel

$389.99

$

Usually ships in 3-7 days

0

36

Homelite 940647107

Choke Label

$

$

Not available

37

Homelite 941707002

Inquiries Label

$

$

Not available

38

Homelite 940947006

Combustion Label

$3.49

$

Usually ships in 3-7 days

0

39

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 940513028

Ground Warning Label

$3.49

$

Usually ships in 3-7 days

0

42

Homelite 940680067

Hot Surface Label

$

$

Not available

43

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 940633039

Recoil Label

$

$

Not available

45

Homelite 940617153

Starting Label

$

$

Not available

Homelite GB6177-N-10

Nut

Note: NOT SHOWN

$

$

Not available

Homelite DF2500H-34106-A

Washer

$

$

Not available

Homelite GBT16674-B5-16

Bolt

$

$

Not available

Homelite GBT16674-B5-12

Bolt

$

$

Not available

Homelite 991000287

Operator's Manual

$

$

Not available

Homelite 991000288

Quick Reference Guide

$9.49

$

Usually ships in 3-7 days

0
