PS 906811 P-H (090930282) - PowerStroke 6800 Watt Generator, Rev 03 (2018-10) General Assembly Parts Diagram

6800 Watt Generator, Rev 03

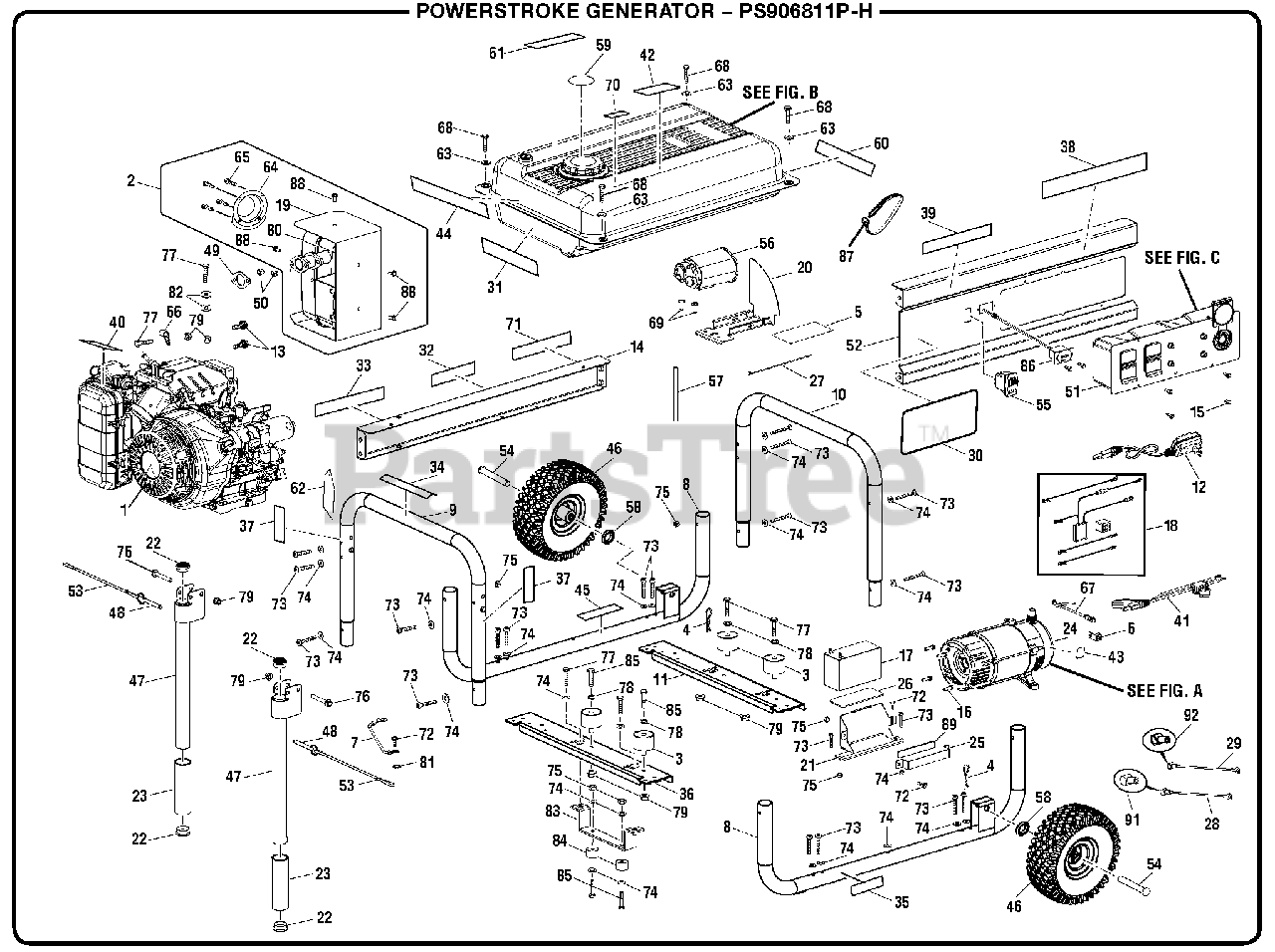

General Assembly Parts Diagram

  • Title

1

Engine (Honda GX390)

$

$

Not available

2

Homelite 309322030

Muffler Assembly

Note: (Inc. Key nos. 19, 64-65, 80 & 88)

$114.99

$

Usually ships in 3-7 days

0

3

Homelite 570356012

Isolator

$

$

Not available

4

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 560878003

Rubber Sheet

$

$

Not available

6

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290404009

Ground Wire Assembly

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 308581057

Lower Frame Assembly

$

$

Not available

9

Homelite 308581056

Tube Assembly (Left)

$

$

Not available

10

Homelite 309044016

Tube Assembly (Right)

$

$

Not available

11

Homelite 638735042

Cross Brace

$

$

Not available

12

Homelite 140173033

Battery Charger

$83.99

$

Usually ships in 3-7 days

0

13

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 638960012

Back Panel

$

$

Not available

15

Homelite 660598001

Screw (6-20 x 3/8 in.)

$3.49

$

In Stock, only 2 left!

0

16

Homelite 660596002

Bolt (3/8-16 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 750400010

Battery

$203.99

$

Usually ships in 3-7 days

0

18

Homelite 290435009

Wire Harness

$13.99

$

Usually ships in 3-7 days

0

19

Homelite 638497041

Heat Shield

$39.99

$

Usually ships in 3-7 days

0

20

Homelite 678708004

Bracket (Carbon Canister)

$

$

Not available

21

Homelite 678714015

Battery Box

$20.99

$

Usually ships in 3-7 days

0

22

Homelite 519712001

Plastic Cap

$

$

Not available

23

Homelite 570357002

Handle Grip

$

$

Not available

24

Homelite 310227041

Generator Head w/AVR

$1013.99

$

In Stock, only 1 left!

0

25

Homelite 308681009

Battery Hold Down Bracket

$6.49

$

In Stock, only 1 left!

0

26

Homelite 570630004

Gasket (Battery Hold Down Bracket)

$3.49

$

In Stock, only 1 left!

0

27

Homelite 930717003

Tie Wrap

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 290418004

Battery Cable (Red)

$9.99

$

Usually ships in 3-7 days

0

29

Homelite 290419004

Battery Cable (Black)

$10.99

$

Usually ships in 3-7 days

0

30

Homelite 940705253

Logo Label

$

$

Not available

31

Homelite 940734116

Electric Start Label

$

$

Not available

32

Homelite 940680036

Hot Surface Label

$

$

Not available

33

Homelite 940707097

Danger Label

$8.49

$

Usually ships in 3-7 days

0

34

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

35

Homelite 940828004

Engine Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 638735043

Cross Brace

$34.99

$

Usually ships in 3-7 days

0

37

Homelite 940514008

Locking Pin Label

$6.49

$

Usually ships in 3-7 days

0

38

Homelite 940608001

Honda Label

$

$

Not available

39

Homelite 940617021

Electric Start Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940647092

Choke Label

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 290435011

Pigtail (DC)

$12.99

$

Usually ships in 3-7 days

0

42

Homelite 940515020

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

43

Homelite 940513002

Ground Label

$3.49

$

Usually ships in 3-7 days

0

44

Homelite 941707001

Inquires Label

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940947006

Combustion Warning Label

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 308451043

Wheel

$

$

Not available

47

Homelite 310224053

Handle Assembly

$27.99

$

Usually ships in 3-7 days

0

48

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, only 4 left!

0

49

Homelite 678728003

Exhaust Gasket

$2.49

$

In Stock, only 4 left!

0

50

Homelite 678189001

Nut( M8)

$

$

Not available

51

Homelite 290403068

Panel Assembly

$392.99

$

Usually ships in 3-7 days

0

52

Homelite 638959017

Front Panel

$

$

Not available

53

Homelite 310715001

Lanyard

$

$

Not available

54

Homelite 681866001

Axle

$

$

Not available

55

Homelite 270290008

Start Switch w/Lock

$

$

Not available

56

Homelite 310722001

Carbon Canister Assembly

$

$

Not available

57

Homelite 570358134

Purge Hose

$

$

Not available

58

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

59

Homelite 940872023

Fuel Stabilizer Label

$3.99

$

Usually ships in 3-7 days

0

60

Homelite 940513028

Ground Warning Label

$3.49

$

Usually ships in 3-7 days

0

61

Homelite 940872016

Fuel Warning Label

$

$

Not available

62

Homelite 940971086

Hang Tag

$

$

Currently unavailable

63

Homelite 638387005

Washer (1/4 in.)

$

$

Not available

64

Homelite 638147003

Spark Arrestor

$

$

Not available

65

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

66

Homelite 519729001

J-Clamp (1/2 in.)

$

$

Not available

67

Homelite 290455001

Bonding Wire

$2.99

$

Usually ships in 3-7 days

0

68

Homelite 660901036

Screw (1/4-14 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 661308003

Screw (#10-16 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

71

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

72

Homelite 661505030

Screw (M6 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

74

Homelite 673154002

Washer (M6)

$2.49

$

Usually ships in 3-7 days

0

75

Homelite 678460009

Lock Nut (M6)

$

$

Not available

76

Homelite 660962004

Bolt (M8 x 55 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

77

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

78

Homelite 673155001

Washer (M8)

$3.49

$

In Stock, only 1 left!

0

79

Homelite 678774012

Flange Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 3 left!

0

80

Homelite 309322029

Muffler
(Superseded to 309322030)

$114.99

$

Usually ships in 3-7 days

0

81

Homelite 673157002

Star Washer (M6)

$

$

Not available

82

Homelite 638675001

Washer (5/16 in)

$2.49

$

Usually ships in 3-7 days

0

83

Homelite 638706014

Foot Bracket

$16.99

$

Usually ships in 3-7 days

0

84

Homelite 570554001

Wear Pad

$

$

Not available

85

Homelite 660505031

Bolt (M6 x 25 mm, Hex Hd.)
(Superseded to 661834005)

$2.49

$

Usually ships in 3-7 days

0

86

Homelite 310713001

Hour Meter

$

$

Not available

87

Homelite 90033012

Cable Tie 18.6 in.)

$

$

Currently unavailable

88

Homelite 660975009

Bolt (M6 x 9 mm)

$3.49

$

Usually ships in 3-7 days

0

89

Homelite 570630002

Battery Bracket Gasket

$2.49

$

In Stock, only 1 left!

0

90

Homelite 660505031

Bolt (M6 x 25 mm, Hex Hd.)
(Superseded to 661834005)

$2.49

$

Usually ships in 3-7 days

0

91

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

92

Homelite 570766014

Rubber Battery Cable Boot (Black)

$3.99

$

Usually ships in 3-7 days

0

Homelite 991000611

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 991000612

Quick Reference Guide

Note: NOT SHOWN

$

$

Currently unavailable
