PS 906811 P - PowerStroke 6800 Watt Generator, Rev 03 (2018-06) Figure C Parts Diagram

6800 Watt Generator, Rev 03

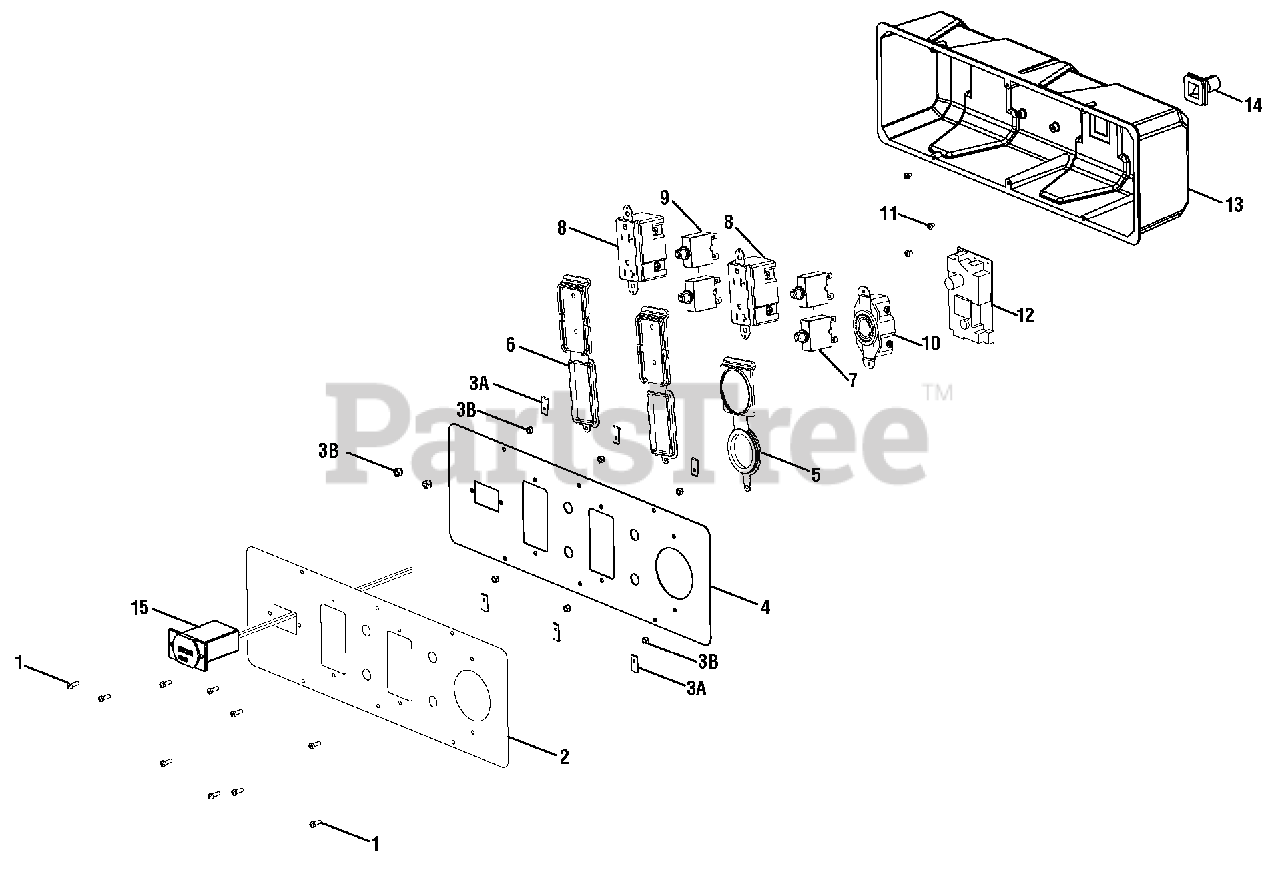

Figure C Parts Diagram

  • Title

1

Homelite 660598001

Screw (6-20 x 3/8 in.)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 940780065

Outlet Panel Label

$

$

Currently unavailable

3

Homelite 678824001

U- Clip Nut (#6)

$1.49

$

In Stock, Qty 6

0

Homelite 678720001

Nut (#6-32)

$1.49

$

In Stock, only 4 left!

0

4

Homelite 638700028

Front Panel

$

$

Not available

5

Homelite 570412005

240 Volt Outlet Covers

$

$

Not available

6

Homelite 570412002

120 Volt Outlet Covers

$7.99

$

Usually ships in 3-7 days

0

7

Homelite 780351012

Circuit Breaker (30 Amp)

$8.49

$

Usually ships in 3-7 days

0

8

Homelite 290400006

120 Volt Duplex Receptacle

$

$

Not available

9

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$15.99

$

In Stock, only 2 left!

0

11

Homelite 660923015

Screw (M3 x 5 mm,)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 140173023

Battery Charger
(Superseded to 140173034)

$5.99

$

Usually ships in 3-7 days

0

13

Homelite 519707011

Control Box (Back Panel)

$8.99

$

Usually ships in 3-7 days

0

14

Homelite 570766003

Rubber Boot (Control Panel Assembly)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 310713001

Hour Meter

$

$

Not available
