PS 906811 PA (090930262) - PowerStroke 6800 Watt Generator Figure A Parts Diagram

6800 Watt Generator

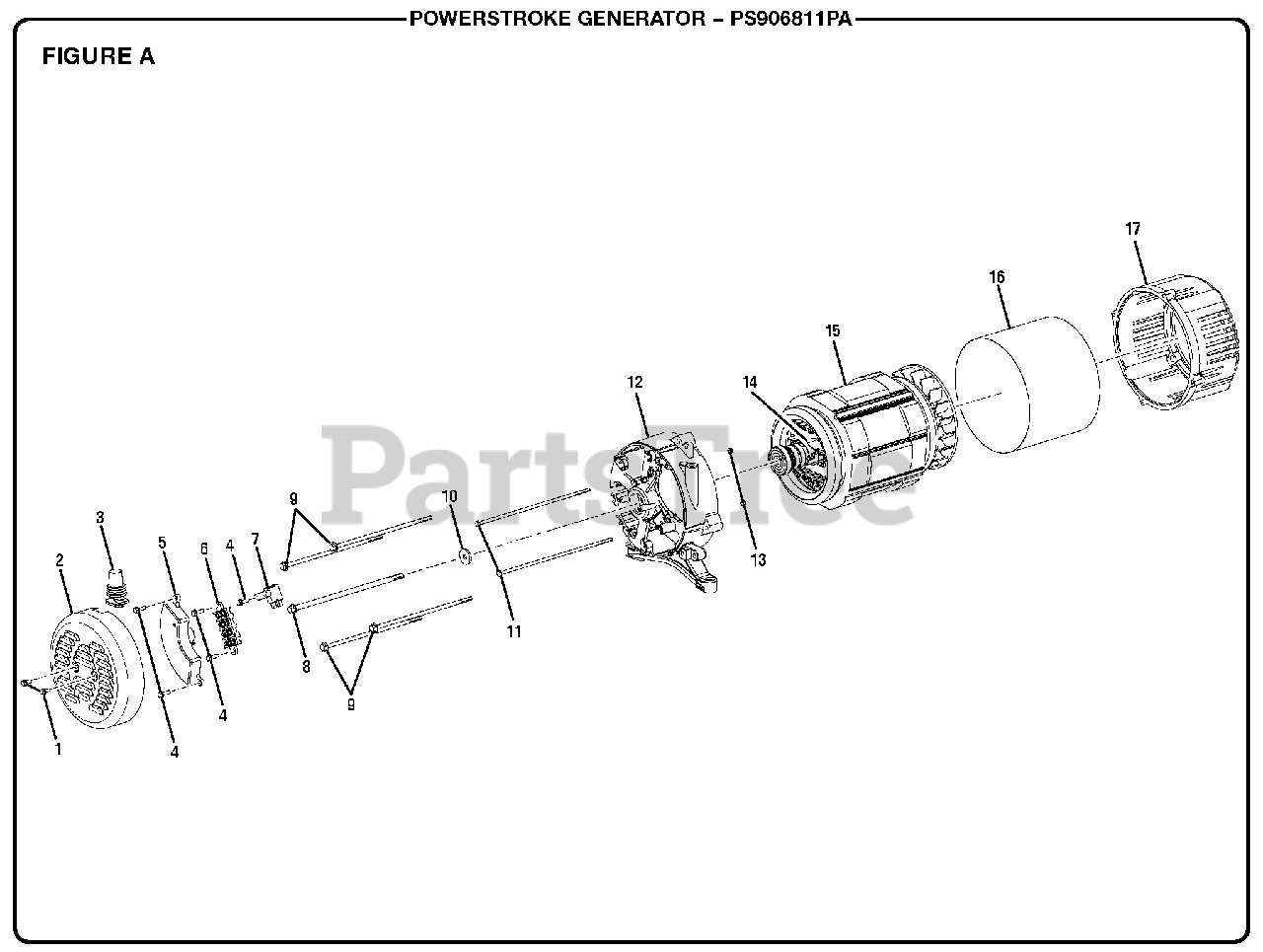

Figure A Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 570766002

Rubber Boot

$

$

Not available

4

Homelite 660938012

Bolt (M5 x 16 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

6

Homelite 290602003

Terminal Block

$12.99

$

Usually ships in 3-7 days

0

7

Homelite 290441005

Brush Assembly

$

$

Not available

8

Homelite 661603018

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$9.99

$

Usually ships in 3-7 days

0

9

Homelite 661603017

Bolt (M6 x 188 mm, Hex Washer Hd.)

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 638623002

Washer (ID8 x OD26 x 3t)

$

$

Not available

11

Homelite 660938030

Bolt (M5 x 210 mm, Hex Washer Hd.)

$

$

Not available

12

Homelite 678865003

Bearing Housing

$

$

Not available

13

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 310771027

Rotor

$

$

Not available

15

Homelite 310772027

Stator

$

$

Not available

16

Homelite 638624012

Generator Head Cover

$

$

Not available

17

Homelite 640331005

Adaptor Housing

$

$

Not available
