PS 907000 P (090930263) - PowerStroke 7000 Watt Generator, Rev 01 (2018-02) Figure D Parts Diagram

7000 Watt Generator, Rev 01

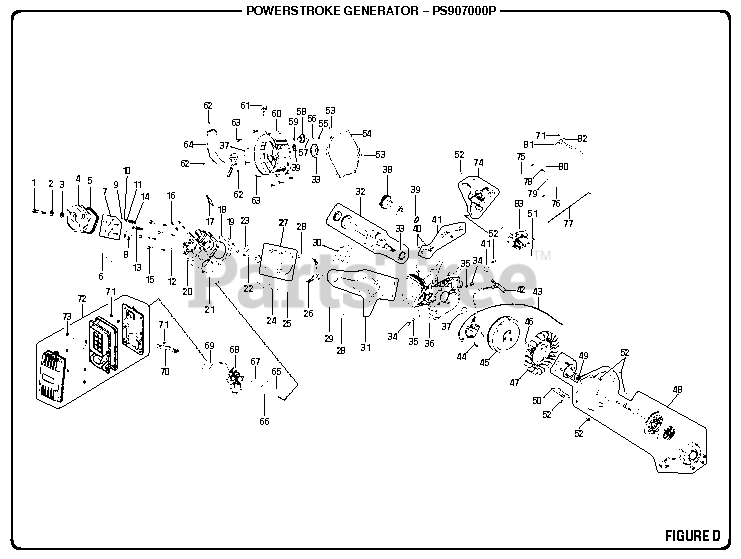

Figure D Parts Diagram

  • Title

1

Homelite 01010122002

Bolt (Cylinder Head Cover)

$

$

Not available

2

Homelite 01010123002

Gasket (For Bolt)

$

$

Not available

3

Homelite 01010124002

Oil Seal (For Bolt)

$

$

Not available

4

Homelite 01010119015

Cylinder Head Cover

$

$

Not available

5

Homelite 01010120003

Gasket (Cylinder Head Cover)

$9.49

$

Usually ships in 3-7 days

0

6

Homelite 01010116008

Hose (Cylinder Head Cover)

$21.99

$

Usually ships in 3-7 days

0

7

Homelite 01010200008

Rocker Arm Assembly

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 01010113007

Push Rod Guide Plate

$

$

Not available

9

Homelite 01010112005

Exhaust Valve Cap

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 01010111003

Valve Lock Clamp

$

$

Not available

11

Homelite 01010110004

Valve Spring Retainer

$

$

Not available

12

Homelite 01010128004

Intake Valve Guide

$

$

Not available

13

Homelite 01010106012

Valve Spring

$

$

Not available

14

Homelite 01010109002

Valve Spring Retainer

$

$

Not available

15

Homelite 030303009

Stud (M10 x 80 mm)

$

$

Not available

16

Homelite 030309021

Stud (M8 x 35 mm)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 01011002009

Spark Plug

$9.49

$

Usually ships in 3-7 days

0

18

Homelite 01010102042

Gasket (Cylinder Head)

$12.99

$

Usually ships in 3-7 days

0

19

Homelite 01010103006

Pin (Cylinder Head)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 01010101020

Cylinder Head Assembly

$56.99

$

Usually ships in 3-7 days

0

21

Homelite 030309022

Stud (M6 x 106 mm)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 01010104014

Intake Valve

$16.99

$

Usually ships in 3-7 days

0

23

Homelite 01010105013

Exhaust Valve

$16.99

$

Usually ships in 3-7 days

0

24

Homelite 01010117012

Push Rod

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 01010118008

Tappet

$

$

Not available

26

Homelite 01010402027

Piston

$

$

Not available

27

Homelite 01010403026

Piston Ring Set

$

$

Not available

28

Homelite 01010405010

Clip

$

$

Not available

29

Homelite 01010404011

Piston Pin

$

$

Not available

30

Homelite 01010600018

Camshaft Assembly

$70.99

$

Usually ships in 3-7 days

0

31

Homelite 01010400016

Connecting Rod Assembly

$

$

Not available

32

Homelite 0101050107351

Crankshaft Assembly

$

$

Not available

33

Homelite 01010304020

Bearing (6207)

$

$

Not available

34

Homelite 01010302008

Drain Nut

$

$

Not available

35

Homelite 01010303004

Washer

$

$

Not available

36

Homelite 01010301065

Cylinder Block Assembly

$

$

Not available

37

Homelite 01010305020

Oil Seal

$

$

Not available

38

Homelite 01010510002

Balancer Shaft

$

$

Not available

39

Homelite 01010304019

Bearing (6202)

$

$

Not available

40

Homelite 030302036

Bolt (M6 x 16 mm, Flange Hex Hd.)

$

$

Not available

41

Homelite 01011700015

Oil Circuit-Breaker Assembly

$28.99

$

Usually ships in 3-7 days

0

42

Homelite 01011001018

Magneto Assembly

$38.99

$

Usually ships in 3-7 days

0

43

Homelite 01011009006

Ignition Wire

$

$

Not available

44

Homelite 030302038

Bolt (M6 x 25 mm, Flange Hex Hd.)

$

$

Not available

45

Homelite 01010800030

Flywheel Assembly

$

$

Not available

46

Homelite 01010505004

Key

$

$

Not available

47

Homelite 01010802014

Fan

$

$

Not available

48

Homelite 0101150102039

Recoil Assembly

$

$

Not available

49

Homelite 030403007

Nut

$

$

Not available

50

Homelite 01010131016

Shroud

$

$

Not available

51

Homelite 030304008

Bolt (M8 x 35 mm, Flange Hex Hd.)

$

$

Not available

52

Homelite 030302035

Bolt (M6 x 12 mm, Flange Hex Hd.)

$

$

Not available

53

Homelite 01010705004

Pin

$

$

Not available

54

Homelite 01010704010

Gasket

$14.99

$

Usually ships in 3-7 days

0

55

Homelite 01011104004

Governor Slider

$

$

Not available

56

Homelite 01011204002

Retaining Ring

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 01011202006

Shaft

$

$

Not available

58

Homelite 01011201008

Gear

$11.99

$

Usually ships in 3-7 days

0

59

Homelite 01011103001

Gasket

$

$

Not available

60

Homelite 01010702005

Gear Chamber Cover

$

$

Not available

61

Homelite 01010706019

Oil Dipstick

$4.99

$

Usually ships in 3-7 days

0

62

Homelite 030201008

Bolt (M5 x 8 mm, Cross Pan Hd.)

$

$

Not available

63

Homelite 030304009

Bolt (M8 x 40 mm, Flange Hex Hd.)

$

$

Not available

64

Homelite 01030304001

Alternator Shroud

$

$

Not available

65

Homelite 01010114008

Intake Gasket

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 01010905008

Insulator Plate

$

$

Not available

67

Homelite 01010902011

Gasket

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 01010900076

Carburetor Assembly

$36.99

$

Usually ships in 3-7 days

0

69

Homelite 01011302004

Gasket

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 01011301003

Bracket

$

$

Not available

71

Homelite 030402005

Hex Nut (M6)

$

$

Not available

72

Homelite 01011300034

Air Filter Box Assembly

$

$

Not available

73

Homelite 030402007

Hex Nut (M5)

$

$

Not available

74

Homelite 01011101055

Governor Base Assembly

$

$

Not available

75

Homelite 01011110033

Governor Spring

$

$

Not available

76

Homelite 01011111011

Governor Spring

$

$

Not available

77

Homelite 01011112011

Throttle Adjusting Handle

$

$

Not available

78

Homelite 01011107003

Clip

$

$

Not available

79

Homelite 01011106013

Rocker

$

$

Not available

80

Homelite 01010305011

Oil Seal

$

$

Not available

81

Homelite 01011109015

Governor Arm

$

$

Not available

82

Homelite 030203001

Screw (Square Hd.)

$

$

Not available

83

Homelite 01011801014

Starter Assembly

$

$

Not available
