PS 907000 P (090930263) - PowerStroke 7000 Watt Generator, Rev 02 (2018-10) General Assembly Parts Diagram

7000 Watt Generator, Rev 02

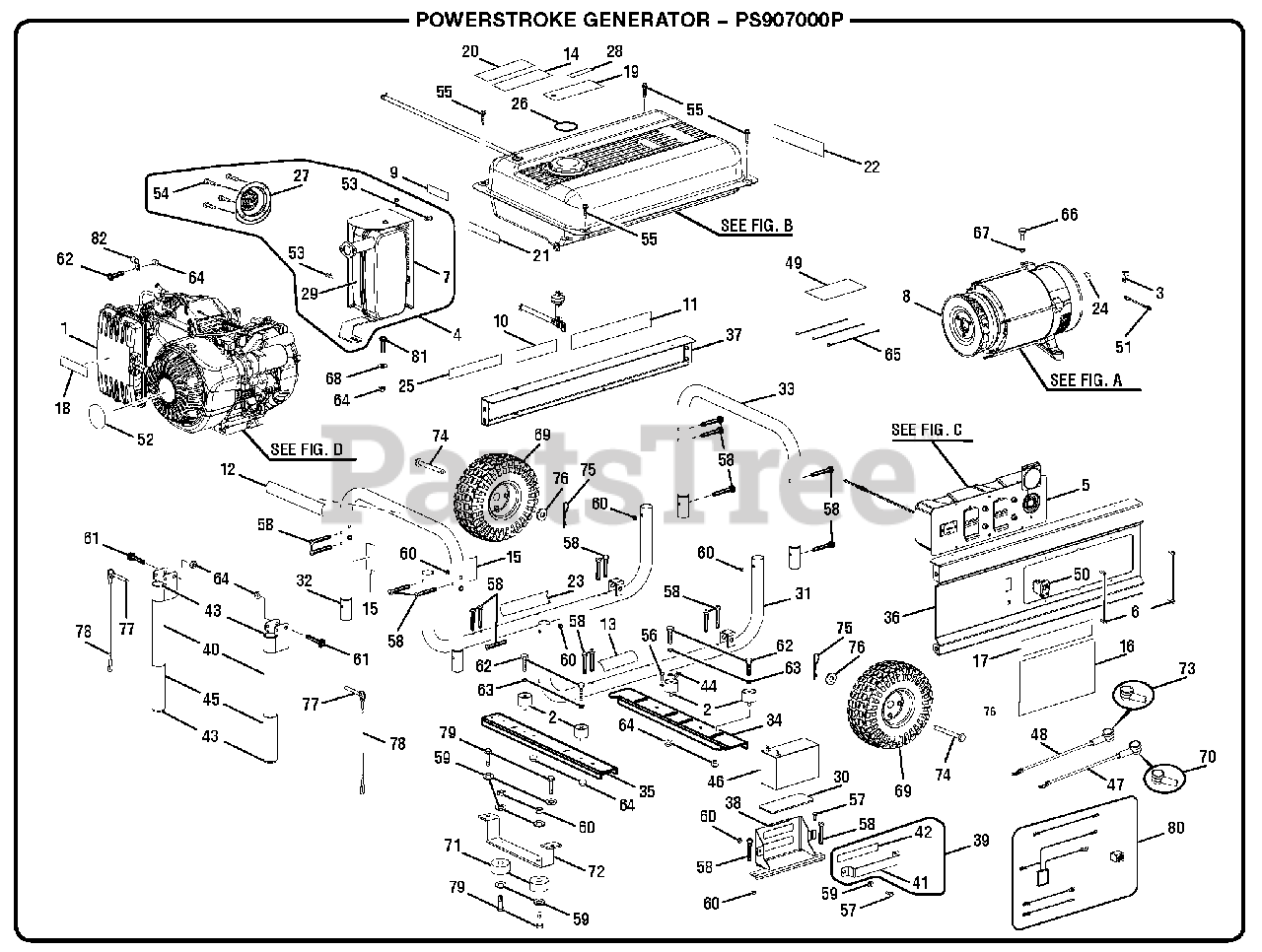

General Assembly Parts Diagram

  • Title

1

Engine

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the ccompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 570356012

Isolator

$

$

Not available

3

Homelite 638703003

Ground Lug

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 309322034

Muffler Assembly

Note: (Inc. Key Nos. 7, 27, 29 and 53-54)

$

$

Currently unavailable

5

Homelite 290403068

Control Panel Assembly

$392.99

$

Usually ships in 3-7 days

0

6

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

7

Homelite 638497038

Heat Shield

$25.99

$

Usually ships in 3-7 days

0

8

Homelite 310227065

Generator Head w/AVR

$

$

Not available

9

Homelite 940734154

Starting Instructions Label

$

$

Not available

10

Homelite 940680040

Hot Surface Label

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 940654364

Danger Label

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 940828004

Engine Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 940872023

Fuel Stabilizer Label (Spanish)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 940514008

Locking Pin Label

$6.49

$

Usually ships in 3-7 days

0

16

Homelite 940779133

Performance Label

$14.99

$

Usually ships in 3-7 days

0

17

Homelite 940617021

Electric Start Label

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 940647102

Choke Label

$

$

Not available

19

Homelite 940971086

Oil Hangtag

$

$

Currently unavailable

20

Homelite 940515020

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 941707001

Inquiries Label

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 940513028

Ground Warning Label

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 940947006

Combustion Warning Label

$3.49

$

Usually ships in 3-7 days

0

24

Homelite 940513002

Ground Label

$3.49

$

Usually ships in 3-7 days

0

25

Homelite 940974090

Fire Distance Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 940872022

Fuel Stabilizer Label

$

$

Not available

27

Homelite 638147003

Spark Arrestor

$

$

Not available

28

Homelite 940872003

E85 Label

$2.49

$

In Stock, only 2 left!

0

29

Homelite 309322035

Muffler w/Brackets

$54.99

$

Usually ships in 3-7 days

0

30

Homelite 570630004

Gasket (Battery Tray)

$3.49

$

In Stock, only 1 left!

0

31

Homelite 308581053

Lower Frame Assembly

$

$

Not available

32

Homelite 308581149

Left Frame Assembly

$58.99

$

Usually ships in 3-7 days

0

33

Homelite 309044007

Right Frame Assembly

$

$

Not available

34

Homelite 638735042

Crossbar (Generator Head)

$

$

Not available

35

Homelite 638735043

Crossbar (Engine)

$34.99

$

Usually ships in 3-7 days

0

36

Homelite 638959007

Front Panel

$

$

Not available

37

Homelite 638960007

Back Panel

$

$

Not available

38

Homelite 678714015

Battery Box

Note: (Inc. Key No. 42)

$20.99

$

Usually ships in 3-7 days

0

39

Homelite 308681009

Battery Hold Down Bracket Assembly

Note: (Inc. Key Nos. 41-42)

$6.49

$

In Stock, only 1 left!

0

40

Homelite 310224053

Handle Assembly

Note: (Incl. Key No. 43)

$27.99

$

Usually ships in 3-7 days

0

41

Homelite 678714016

Battery Retaining Bracket

$

$

Not available

42

Homelite 570630002

Battery Bracket Gasket

$2.49

$

In Stock, only 1 left!

0

43

Homelite 519712001

End Cap (Handle Tube)

$

$

Not available

44

Homelite 290455001

Bonding Wire

$2.99

$

Usually ships in 3-7 days

0

45

Homelite 570357002

Handle Grip

$

$

Not available

46

Homelite 750400010

Battery (9AH)

$203.99

$

Usually ships in 3-7 days

0

47

Homelite 290418004

Battery Cable (Red)

$9.99

$

Usually ships in 3-7 days

0

48

Homelite 290419006

Battery Cable (Black)

$10.99

$

Usually ships in 3-7 days

0

49

Homelite 560878003

Rubber Sheet

$

$

Not available

50

Homelite 270290007

Start Switch w/Lock

$71.99

$

Usually ships in 3-7 days

0

51

Homelite 290404009

Ground Wire Assembly

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 940633040

Recoil Label

$

$

Not available

53

Homelite 660975009

Bolt (M6 x 9 mm)

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$3.49

$

Usually ships in 3-7 days

0

55

Homelite 660901036

Screw (1/4-14 x 1-1/4 in.)

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 661308003

Screw (#10-16 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 661505030

Screw (M6 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 660224019

Screw (M6 x 50 mm, T30 Pan Hd.)

$3.49

$

In Stock, only 2 left!

0

59

Homelite 673154002

Washer (ID6 x OD17 x 1.6t)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 678460009

Lock Nut (M6)

$

$

Not available

61

Homelite 660962004

Bolt (M8 x 55 mm, Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

62

Homelite 660973017

Bolt (M8 x 35 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

63

Homelite 673155001

Washer (M8)

$3.49

$

In Stock, only 1 left!

0

64

Homelite 678774012

Flange Nut (M8)

$2.49

$

In Stock, only 3 left!

0

65

Homelite 930717003

Tie Wrap

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 660391002

Bolt (M8 x 20 mm, Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

67

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 638675001

Washer (5/16 in)

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 308451043

Wheel

$

$

Not available

70

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

71

Homelite 570554001

Wear Pad

$

$

Not available

72

Homelite 638706014

Foot Bracket

$16.99

$

Usually ships in 3-7 days

0

73

Homelite 570766014

Rubber Battery Cable Boot (Black)

$3.99

$

Usually ships in 3-7 days

0

74

Homelite 681866001

Axle

$

$

Not available

75

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

76

Homelite 638275002

Washer (1/2 in.)

$2.49

$

In Stock, Qty 5

0

77

Homelite 310712001

Release Pin

$1.99

$

In Stock, only 4 left!

0

78

Homelite 310715001

Lanyard

$

$

Not available

79

Homelite 660505031

Bolt (M6 x 25 mm, Hex Hd.)
(Superseded to 661834005)

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 290435016

Wiring Harness

$

$

Not available

81

Homelite 660973019

Screw (M8 x 40 mm, Hex Hd.)

$

$

Not available

82

Homelite 519729001

J-Clamp (1/3 in.)

$

$

Not available

Homelite 120302022

Hardware Kit Assembly

Note: Not Shown

$54.99

$

Usually ships in 3-7 days

0

Homelite 120302024

Fastener Kit

$24.99

$

Usually ships in 3-7 days

0

Homelite 991000262

Quick Start Guide

$4.99

$

Usually ships in 3-7 days

0

Homelite 991000261

Operator's Manual

$

$

Not available
