PS 907000 - PowerStroke 7000 Watt Generator Figura A Parts Diagram

7000 Watt Generator

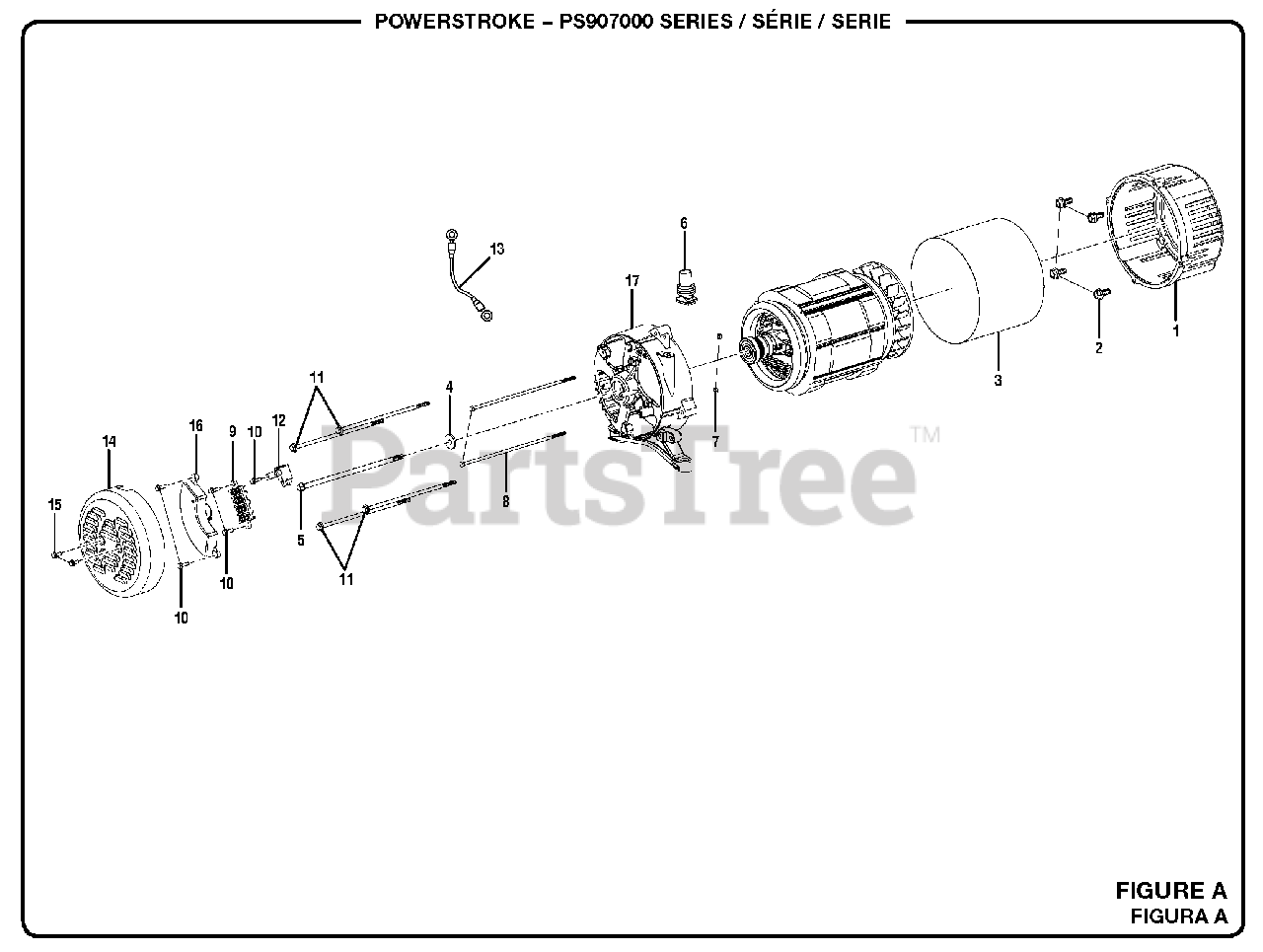

Figura A Parts Diagram

  • Title

1

Homelite 640331005

Adaptor Housing

$

$

Not available

2

Homelite 660596002

Bolt (3/8-16 x 1- 1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 638624012

Generator Head Cover

$

$

Not available

4

Homelite 638623002

Washer (Rotor)

$

$

Not available

5

Homelite 661603018

Rotor Bolt

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 570766004

Rubber Boot

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 690840002

Hex Nut (M5)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660938030

Bolt (M5)

$

$

Not available

9

Homelite 290602003

Terminal Block

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 660938012

Bolt (M5 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 661603017

Bolt (Stator)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 290441005

Brush Assembly

$

$

Not available

13

Homelite 290455001

Bonding Wire

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

15

Homelite 660938011

Bolt (M5 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

17

Homelite 678865003

Bearing Housing

$

$

Not available
