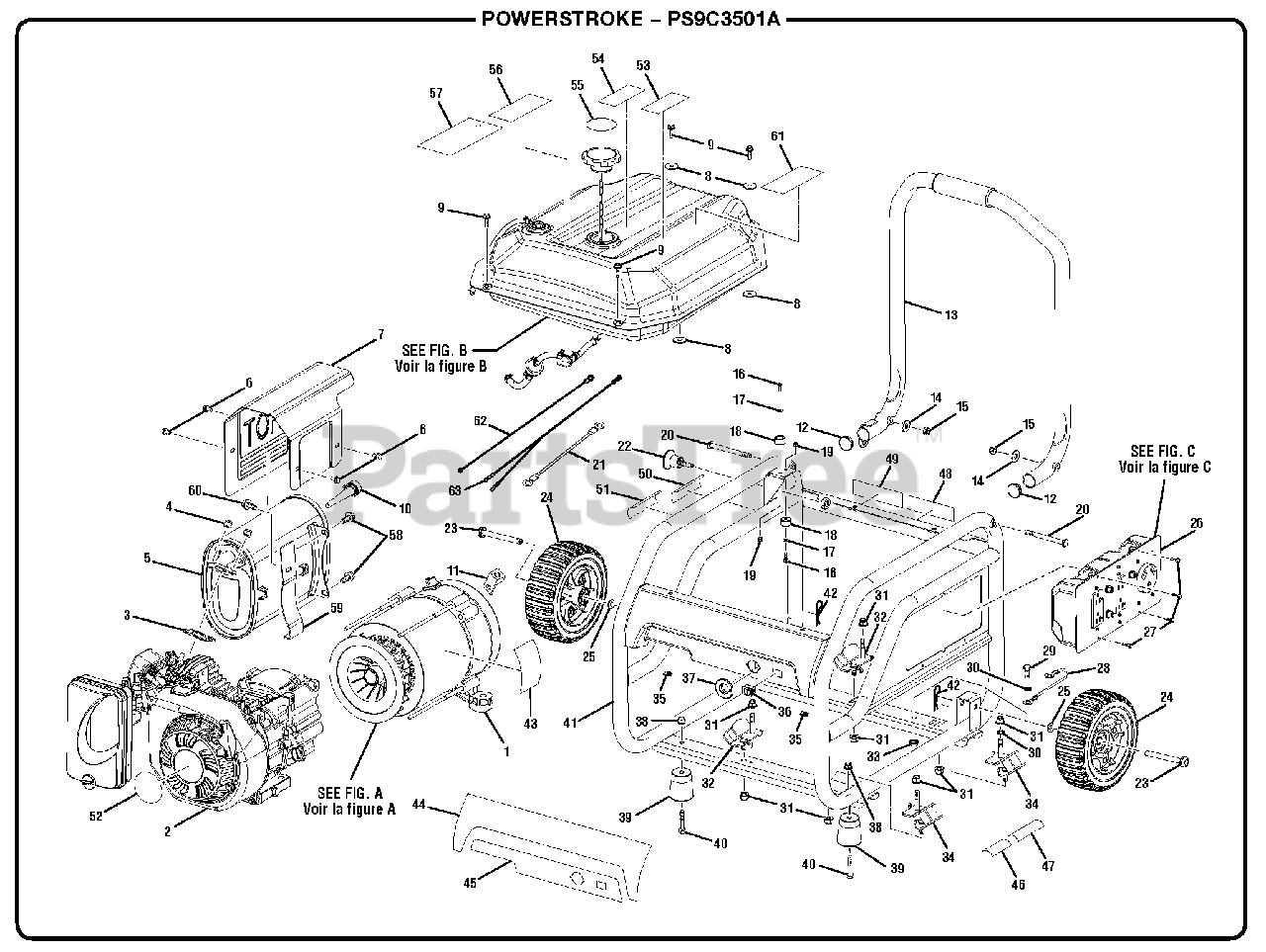

PS 9C3501 A - PowerStroke 3500 Watt Generator General Assembly Parts Diagram

3500 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227049

Generator Head Assembly

$

$

Not available

2

Homelite 309594050

Engine (ROTO R210, 2013)
(Superseded to 309594066)

$

$

Not available

3

Homelite 678728005

Muffler Gasket

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 678189001

Lock Nut (M8)

$

$

Not available

5

Homelite 309322031

Muffler

$198.99

$

Usually ships in 3-7 days

0

6

Homelite 660972011

Bolt (M6 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 638497024

Heat Shield

$36.99

$

Usually ships in 3-7 days

0

8

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

9

Homelite 661836004

Bolt (M6 x 1 in., Hex Hd.)

$

$

Not available

10

Homelite 638147008

Spark Arrestor

$11.99

$

Usually ships in 3-7 days

0

11

Homelite 638703005

Ground Lug

$8.99

$

Usually ships in 3-7 days

0

12

Homelite 519712002

End Cap

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 310224031

Handle Assembly

Note: (Inc. Key No. 12)

$20.99

$

Usually ships in 3-7 days

0

14

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

15

Homelite 678259003

Lock Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 661555001

Bolt (M4 x 12.5 mm, Hex Hd.)

$

$

Not available

17

Homelite 678600002

Washer (M4)

$

$

Not available

18

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678610002

Flange Nut (M4)

$

$

Not available

20

Homelite 678522027

Pivot Pin (Handle)

$

$

Not available

21

Homelite 290455001

Bonding Wire

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 308910008

Quick Release Pin

$

$

Not available

23

Homelite 681866004

Axle

$19.99

$

Usually ships in 3-7 days

0

24

Homelite 308451034

Wheel

$86.99

$

Usually ships in 3-7 days

0

25

Homelite 638422004

Washer (M10)

$

$

Not available

26

Homelite 290403031

Control Panel Assembly

$

$

Not available

27

Homelite 660598001

Screw (6-20 x 3/8 in., Type B)

$3.49

$

In Stock, only 2 left!

0

28

Homelite 290404001

Ground Wire Assembly

$

$

Not available

29

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 673157002

Star Washer (M6)

$

$

Not available

31

Homelite 678774002

Lock Nut (M8)

$2.49

$

In Stock, Qty 6

0

32

Homelite 679940004

Isolator (Left)

$15.99

$

In Stock, only 2 left!

0

33

Homelite 678145002

Hex Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 679940002

Isolator (Right)

$15.99

$

In Stock, only 2 left!

0

35

Homelite 678824003

U-Clip (M6)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 760700002

Stop Switch
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

37

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, Qty 5

0

38

Homelite 678774004

Lock Nut (M8)

$2.49

$

In Stock, only 4 left!

0

39

Homelite 562856010

Foot

$

$

Not available

40

Homelite 661836007

Bolt (M8 x 45 mm, Flange Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 308581024

Carrier Assembly

$462.99

$

Usually ships in 3-7 days

0

42

Homelite 678146002

Hitch Pin

$3.49

$

Usually ships in 3-7 days

0

43

Homelite 940678308

Data Label

$

$

Currently unavailable

44

Homelite 940779076

Logo Label

$10.99

$

Usually ships in 3-7 days

0

45

Homelite 940734114

Start Label

$

$

Not available

46

Homelite 941707001

Inquires Label

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940708019

Lubricant Label

$3.49

$

Usually ships in 3-7 days

0

48

Homelite 940513001

Ground Warning Label

$12.99

$

Usually ships in 3-7 days

0

49

Homelite 940974007

Fire Danger Label

$

$

Not available

50

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940947003

Combustion Label

$

$

Not available

52

Homelite 940633017

Recoil Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 940515016

CPSC Label

$13.99

$

Usually ships in 3-7 days

0

54

Homelite 940872003

E-85 Label

$2.49

$

In Stock, only 2 left!

0

55

Homelite 940872006

Fuel Stabilizer Label

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 940654199

Danger Label

$

$

Not available

57

Homelite 940971040

Warning Hangtag

$

$

Not available

58

Homelite 660973020

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.49

$

In Stock, Qty 6

0

59

Homelite 639096002

Muffler Bracket

$9.99

$

Usually ships in 3-7 days

0

60

Homelite 660975005

Bolt (M6 x 14 mm, Flange Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 940974089

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

62

Homelite 290427001

Wire Assembly (Green)

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 290405003

Wire Assembly (Black)

$2.99

$

Usually ships in 3-7 days

0

Homelite 290428007

Wire Harness

Note: Not Shown

$

$

Not available

Homelite 120968001

High Altitude Kit (3000-6000 ft.)

Note: Not Shown

$9.99

$

Usually ships in 3-7 days

0

Homelite 120968002

High Altitude Kit (6000-8000 ft.)

Note: Not Shown

$

$

Not available

Homelite 988000858

Quick Start Guide

Note: Not Shown

$3.49

$

Usually ships in 3-7 days

0

Homelite 990000492

Operator's Manual

Note: Not Shown

$

$

Not available
