PS 9C3501 - PowerStroke 3500 Watt Generator General Assembly A Parts Diagram

3500 Watt Generator

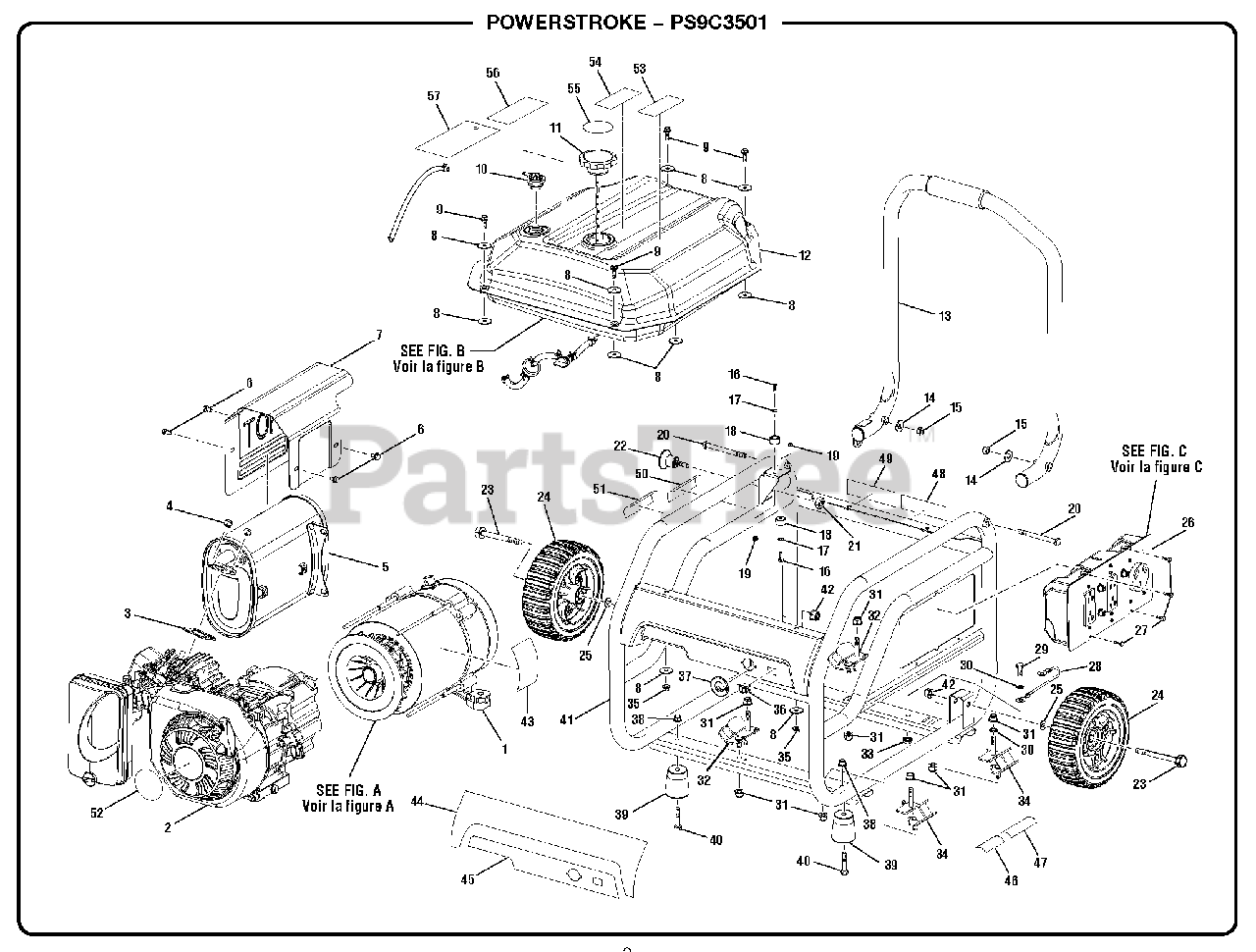

General Assembly A Parts Diagram

  • Title

1

Homelite 310227040

Generator Head Assembly

$685.99

$

Usually ships in 3-7 days

0

2

Homelite 309594033

Engine (212 cc)

$669.99

$

Usually ships in 3-7 days

0

3

Homelite 678728005

Muffler Gasket

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 678189001

Lock Nut (M8)

$

$

Not available

5

Homelite 309322021

Muffler

$166.99

$

Usually ships in 3-7 days

0

6

Homelite 660972011

Bolt (M6 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 638497024

Heat Shield

$36.99

$

Usually ships in 3-7 days

0

8

Homelite 638422005

Washer (M8)

$

$

Currently unavailable

9

Homelite 661836004

Bolt (M6 x 1 in., Hex Hd.)

$

$

Not available

10

Homelite 310854002

Fuel Tank Vapor Vent

$

$

Not available

11

Homelite 310720026

Fuel Cap Assembly

$47.99

$

Usually ships in 3-7 days

0

12

Homelite 310711094

Fuel Tank Assembly

$

$

Currently unavailable

13

Homelite 310224031

Handle Assembly

$20.99

$

Usually ships in 3-7 days

0

14

Homelite 638128002

Washer (5/16 in.)

$

$

Not available

15

Homelite 678259003

Lock Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 661555001

Bolt (M4 x 12.5 mm, Hex Hd.)

$

$

Not available

17

Homelite 678600002

Washer (M4)

$

$

Not available

18

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678610002

Flange Nut (M4)

$

$

Not available

20

Homelite 678522027

Pivot Pin (Handle)

$

$

Not available

21

Homelite 678518002

Hex Nut (1/2-20)

$5.49

$

Usually ships in 3-7 days

0

22

Homelite 308910005

Quick Release Pin

$27.99

$

In Stock, only 1 left!

0

23

Homelite 661836003

Axle Bolt (M10 x 1-1/4 in., Hex Hd.)

$4.99

$

Usually ships in 3-7 days

0

24

Homelite 308451034

Wheel

$86.99

$

Usually ships in 3-7 days

0

25

Homelite 638422004

Washer (M10)

$

$

Not available

26

Homelite 290403031

Control Panel Assembly

$

$

Not available

27

Homelite 660598001

Screw (6-20 x 3/8 in., Type B)

$3.49

$

In Stock, only 2 left!

0

28

Homelite 290404001

Ground Wire Assembly

$

$

Not available

29

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 638704001

Star Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite 678774002

Lock Nut (M8)

$2.49

$

In Stock, Qty 6

0

32

Homelite 679940004

Isolator (Left)

$15.99

$

Usually ships in 3-7 days

0

33

Homelite 678145002

Hex Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 679940002

Isolator (Right)

$15.99

$

In Stock, only 2 left!

0

35

Homelite 678774006

Flange Nut (M6)

$

$

Currently unavailable

36

Homelite 760700002

Stop Switch
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

37

Homelite 519813017

Fuel Valve Bezel

$3.99

$

In Stock, Qty 5

0

38

Homelite 678774004

Lock Nut (M8)

$2.49

$

In Stock, only 4 left!

0

39

Homelite 562856010

Foot

$

$

Not available

40

Homelite 661836007

Bolt (M8 x 45 mm, Flange Hex Hd.)

$3.49

$

Usually ships in 3-7 days

0

41

Homelite 308581024

Carrier Assembly

$462.99

$

Usually ships in 3-7 days

0

42

Homelite 678774005

Lock Nut (M10)

$2.49

$

In Stock, Qty 5

0

43

Homelite 940678284

Data Label

$

$

Not available

44

Homelite 940779076

Logo Label

$10.99

$

Usually ships in 3-7 days

0

45

Homelite 940734114

Start Label

$

$

Not available

46

Homelite 941707001

Inquires Label

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 940828004

Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 940513013

Ground Warning Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940974004

Fire Danger Label

$3.49

$

Usually ships in 3-7 days

0

50

Homelite 940680040

Hot Surface Label

$3.49

$

Usually ships in 3-7 days

0

51

Homelite 940947006

Combustion Label

$3.49

$

Usually ships in 3-7 days

0

52

Homelite 940633017

Recoil Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 940515020

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

54

Homelite 940872003

E-85 Label

$2.49

$

In Stock, only 2 left!

0

55

Homelite 940872011

Fuel Stabilizer Label

$2.49

$

Usually ships in 3-7 days

0

56

Homelite 940654199

Danger Label

$

$

Not available

57

Homelite 940971077

Warning Hangtag

$2.49

$

Usually ships in 3-7 days

0

Homelite 990000287

Operator's Manual

Note: Not Shown

$

$

Not available
