PS 9C3501 - PowerStroke 3500 Watt Generator General Assembly C Parts Diagram

3500 Watt Generator

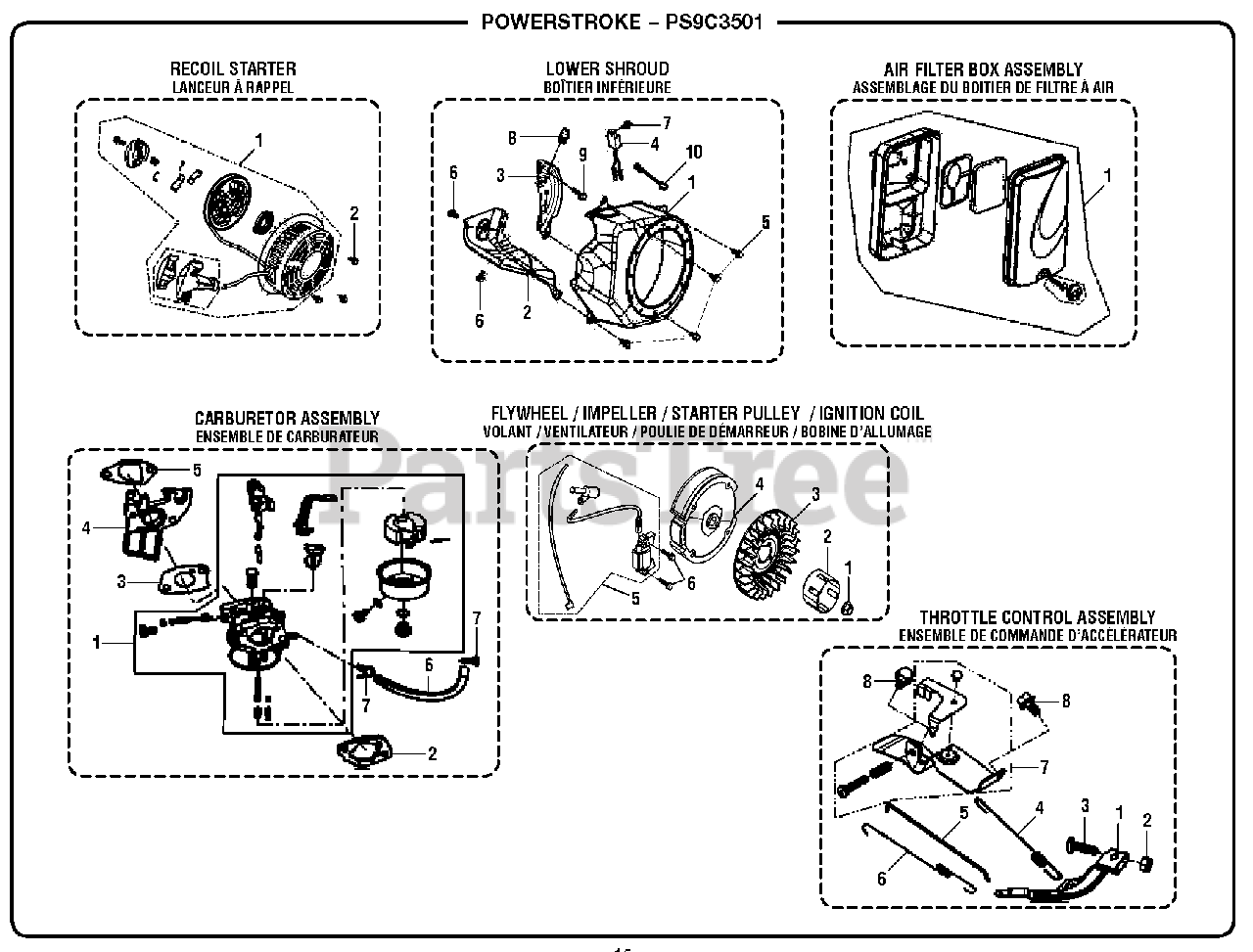

General Assembly C Parts Diagram

  • Title

RECOIL STARTER:

$

$

Not available

1

Homelite 28200-Z301410

Recoil Starter Assembly
(Superseded to 28200-Z301410-H600)

$23.99

$

Usually ships in 3-7 days

0

$1.99

$

Usually ships in 3-7 days

0

LOWER SHROUD:

$

$

Not available

$15.99

$

Usually ships in 3-7 days

0

2

Homelite 19304-Z010110

Cylinder Body Shroud
(Superseded to 19304-Z010110-0000)

$

$

Not available

3

Homelite 19340-Z010510

Lower Shield
(Superseded to 19340-Z010510-0000)

$

$

Not available

4

Homelite 37050-Z010210

Oil Protector
(Superseded to 37050-Z010210-0000)

$4.49

$

Usually ships in 3-7 days

0

$1.49

$

Usually ships in 3-7 days

0

$

$

Not available

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 90740-Z010110

Collar
(Superseded to 90740-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 35541-Y2D0110

Engine Stop Wire
(Superseded to 35540-Z060130-QG00)

$3.99

$

Usually ships in 3-7 days

0

CARBURETOR ASSEMBLY:

$

$

Not available

1

Homelite 16100-Z530510

Carburetor Assembly

$70.99

$

In Stock, only 1 left!

0

2

Homelite 17001-Z010110

Air Cleaner Gasket
(Superseded to 17001-Z010110-0000)

$1.99

$

In Stock, Qty 5

0

3

Homelite 16001-Z010110

Carburetor Gasket
(Superseded to 16001-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 16003-Z010110

Carburetor Insulator Plate
(Superseded to 16003-Z010110-0000)

$2.99

$

In Stock, only 1 left!

0

5

Homelite 16002-Z050110

Carburetor Insulator Gasket

$1.99

$

In Stock, only 4 left!

0

$8.49

$

Usually ships in 3-7 days

0

$

$

Not available

AIR FILTER BOX ASSEMBLY:

$

$

Not available

1

$15.99

$

Usually ships in 3-7 days

0

FLYWHEEL / IMPELLER / STARTER PULLEY / IGNITION COIL:

$

$

Not available

1

Homelite 13501-Z010110

Flywheel Nut
(Superseded to 13501-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 28002-Z260210

Starter Pulley

$

$

Not available

3

Homelite 19352-Z440110

Impeller
(Superseded to 19352-Z440110-0000)

$5.99

$

Usually ships in 3-7 days

0

4

Homelite 13510-Z440110

Flywheel Assembly

$

$

Not available

5

Homelite 30400-Z010210

Ignition Coil

$20.99

$

In Stock, only 1 left!

0

$1.49

$

Usually ships in 3-7 days

0

THROTTLE CONTROL ASSEMBLY:

$

$

Not available

1

Homelite 16070-Z010110

Governor Support Assembly
(Superseded to 16070-Z010110-0000)

$2.49

$

Usually ships in 3-7 days

0

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 16072-Z010110

Governor Support Bolt
(Superseded to 16072-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 16063-Z010310

Governor Spring
(Superseded to 16063-Z010310-0000)

$1.99

$

In Stock, Qty 5

0

5

Homelite 16062-Z010110

Governor Rod
(Superseded to 16062-Z010110-0000)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 16012-Z010110

Throttle Valve Return Spring

$1.49

$

In Stock, only 3 left!

0

7

Homelite 16520-Z040110

Throttle Control Assembly

$3.49

$

Usually ships in 3-7 days

0

$

$

Not available
