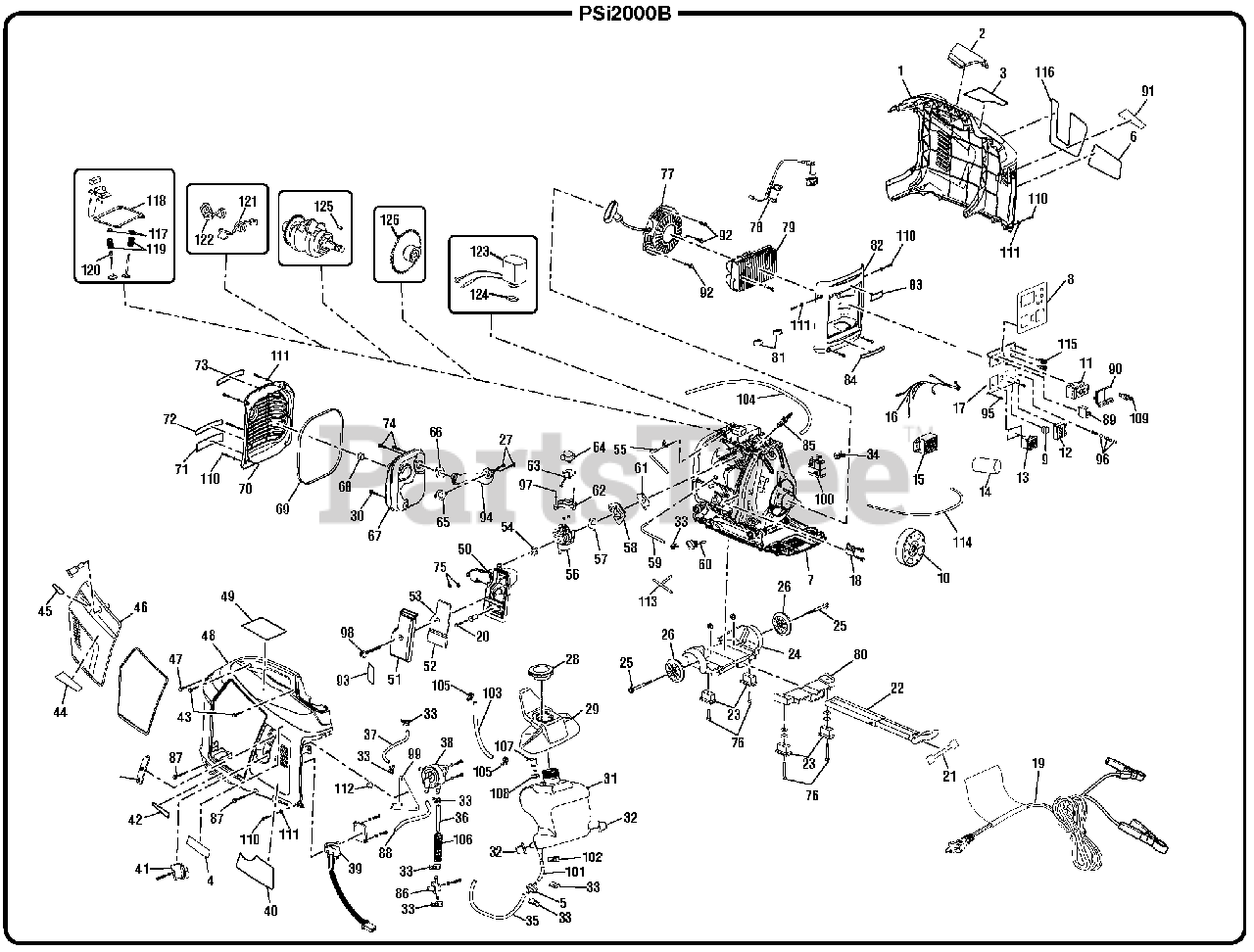

PS i2000 B - PowerStroke Digital Inverter Generator General Assembly Parts Diagram

Digital Inverter Generator

General Assembly Parts Diagram

  • Title

1

Homelite 638792005

Right Housing

$

$

Not available

2

Homelite 519813019

Spark Plug Access Cover

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 940707095

Danger / E85 Label

$

$

Not available

4

Homelite 940974091

Fire Danger Label

$

$

Not available

5

Homelite 308733008

Fuel Filter

$8.49

$

In Stock, Qty 7

0

6

Homelite 940789010

Features Label

$

$

Not available

7

Engine

Note: One World Technologies, Inc, will not provide engines as replacement parts Engines are covered through the engine manufacturer's warranty Consult the accompanying engine manual or contact our service department for assistance

$

$

Not available

8

Homelite 940040044

Control Panel Label

$

$

Not available

9

Homelite 760504009

Auto Idle Switch

$1.99

$

In Stock, Qty 5

0

10

Homelite 310772013

Stator Assembly

$

$

Not available

11

Homelite 290400017

AC Receptacle (120 Volt)

$

$

Not available

12

Homelite 850201002

Ignition Module

$

$

Not available

13

Homelite 290400019

DC Receptacle

$

$

Not available

14

Homelite 570779001

Heat Shrink Tube

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 290443005

Bridge Rectifier

$

$

Currently unavailable

16

Homelite 290514009

Wiring Harness (Internal)

$

$

Not available

17

Homelite 638700035

Faceplate

$

$

Not available

18

Homelite 760504012

Pick-Up Coil

$9.99

$

Usually ships in 3-7 days

0

19

Homelite 290425003

Battery Charging Cable

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 01-02-0023

Screw (M5 x 12 mm)

$

$

Not available

21

Homelite 940758019

Handle Release Label

$

$

Not available

22

Homelite 308790003

Handle Assembly

$41.99

$

Usually ships in 3-7 days

0

23

Homelite 570355005

Rubber Foot

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 310224027

Rear Handle and Wheel Bracket

$

$

Not available

25

Homelite GB-T2672-2004

Wheel Mounting Bolt

$

$

Not available

26

Homelite 310223005

Wheel

$

$

Not available

27

Homelite 01-02-01911

Screw (M6 x 22 mm)

$

$

Not available

28

Homelite 519709004

Fuel Cap Assembly

$

$

Not available

29

Homelite 518549002

Fuel Overspill Guard

$6.99

$

Usually ships in 3-7 days

0

30

Homelite 01-02-0221

Screw (M6 x 65 mm)

$

$

Not available

31

Homelite 310711118

Fuel Tank

$

$

Not available

32

Homelite 570355007

Fuel Tank Support

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678815010

Clamp (D9 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 678815011

Clamp (D7 x 08 mm)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 570358116

Fuel Line (Filter to Valve, 6 mm x 10 mm)

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 570358117

Fuel Line (Valve to Pump, 6 mm x 10 mm)

$

$

Not available

37

Homelite 570358118

Fuel Line (Pump to Carburetor, 6 mm x 10 mm)

$

$

Not available

38

Homelite 308459007

Fuel Pump

$44.99

$

Usually ships in 3-7 days

0

39

Homelite 291443001

Engine Shut Off Switch

$

$

Not available

40

Homelite 940617107

Quick Start Label

$

$

Not available

41

Homelite 524002001

Switch Handle

$

$

Not available

42

Homelite 940708021

Lubricant Label

$

$

Not available

43

Homelite 620599021

Bolt (M6 x 30 mm)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940748014

Logo Label (Left)

$

$

Not available

45

Homelite 940647086

Choke Label

$

$

Not available

46

Homelite 523430006

Maintenance Cover

$12.99

$

Usually ships in 3-7 days

0

47

Homelite 01-02-0261

Bolt (M6 x 100 mm)

$

$

Not available

48

Homelite 519863005

Left Housing

$

$

Not available

49

Homelite 940515021

CPSC Label

$

$

Not available

50

ZJ158F09-01-2

Air Filter Back

$

$

Not available

51

ZJ158F09-01-5

Air Filter Cover

$

$

Not available

52

ZJ158F09-01-6

Air Filter (Lower)

$

$

Not available

53

ZJ158F09-01-3

Air Filter (Upper)

$

$

Not available

54

Homelite 14201-A142-0000

Intake Gasket

$

$

Not available

55

03031011

Engine Breather Hose

$

$

Not available

56

ZJ158F0902

Carburetor Assembly

$

$

Not available

57

Homelite 14004-A142-0000

Carburetor Gasket

$1.49

$

Usually ships in 3-7 days

0

58

ZJ158F09-2

Intake Seat

$

$

Not available

59

Homelite 15102-HA03-0001-32

Vapor Hose (Engine To T-Fitting, 320 mm)

$

$

Not available

60

Homelite 11221-A142-0000

Dipstick

$1.49

$

Usually ships in 3-7 days

0

61

Homelite 14001-A142-0000

Insulator Gasket

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 14422-A142-0000

Governor Bottom Cover

$

$

Not available

63

Homelite 230404001

Governor

$

$

Not available

64

Homelite 14421-A142-0000

Governor Top Cover

$

$

Not available

65

ZJ158F10-3

Manifold Gasket

$

$

Not available

66

ZJ158F10-1

Muffler Gasket

$

$

Not available

67

Homelite 308990048

Muffler

$132.99

$

Usually ships in 3-7 days

0

68

Homelite 638147005

Spark Arrestor

$4.49

$

Usually ships in 3-7 days

0

69

Homelite 638238003

Muffler Cover Seal

$5.99

$

In Stock, only 1 left!

0

70

Homelite 524012001

Muffler Cover
(Superseded to 524092001)

$17.99

$

Usually ships in 3-7 days

0

71

Homelite 940678389

Data Label

$

$

Not available

72

Homelite 940947007

Combustion Label

$

$

Not available

73

Homelite 940680046

Hot Surface Label

$0.99

$

Usually ships in 3-7 days

0

74

Homelite 01-02-0181

Screw (M6 x 45 mm)

$

$

Not available

75

GB/T 61771-2000

Nut (M5)

$

$

Not available

76

Homelite 01-02-0161

Screw (M5 x 35 mm)

$

$

Not available

77

Homelite 310755007

Recoil Starter Assembly

$

$

Not available

78

Homelite 850202001

Ignition Coil

$30.99

$

Usually ships in 3-7 days

0

79

Homelite 290991011

Inverter Module

$

$

Not available

80

Homelite 310224026

Foot Brace (Front Handle)

$

$

Not available

81

Homelite 570355008

Inverter Module Support

$1.49

$

Usually ships in 3-7 days

0

82

Homelite 524018001

Control Panel Holder

$3.49

$

Usually ships in 3-7 days

0

83

Homelite 940748015

Logo Label (Small)

$

$

Not available

84

Homelite 940513025

Ground Warning Label

$

$

Not available

85

Homelite 870174004

Spark Plug

$7.49

$

In Stock, Qty 10

0

86

Homelite 519711005

Fuel Shut Off Valve

$

$

Not available

87

Homelite 01-02-0251

Screw (M6 x 140 mm)

$

$

Not available

88

Homelite 15102-HA03-0001-10

Vapor Hose (T-Fitting To Fuel Pump)

$

$

Not available

89

Homelite 780350001

Circuit Breaker (20 Amp)

$8.49

$

In Stock, only 1 left!

0

90

Homelite 570412003

Receptacle Cover

$4.99

$

Usually ships in 3-7 days

0

91

Homelite 940748013

Logo Label (Right)

$

$

Not available

92

Homelite 01-01-4171

Screw (M6 x 16 mm)

$

$

Not available

93

Homelite 940708020

Check Oil Label

$

$

Not available

94

ZJ158F10-2

Exhaust Pipe

$

$

Not available

95

Homelite GB/T 845-1985

Screw (M48x19 mm)

$1.49

$

Usually ships in 3-7 days

0

96

Homelite GB/T 95-2002

Washer (M5)

$1.99

$

Usually ships in 3-7 days

0

97

Homelite GB/T 818-2000

Screw (M5 x 8 mm)

$

$

Not available

98

Homelite GB/T 947-1988

Screw (M6x16 mm)

$

$

Not available

99

Homelite 639138002

Fuel Pump Bracket

$

$

Not available

100

Homelite 310722006

Carbon Canister

$

$

Not available

101

Homelite 570358115

Fuel Line (Tank to Filter, 6 mm x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

102

Homelite 678815015

Clamp (D10 x 08 mm)

$1.49

$

Usually ships in 3-7 days

0

103

Homelite 570358120

Vent Hose (Tank to Carbon Canister)

$3.49

$

Usually ships in 3-7 days

0

104

Homelite 570358119

Vent Hose (Carbon Canister to Air-box)

$3.49

$

Usually ships in 3-7 days

0

105

Homelite 678815016

Clamp (D7 x 08 mm)

$1.49

$

Usually ships in 3-7 days

0

106

Homelite 672947004

Hose Supporting Spring

$

$

Not available

107

Homelite 638710002

Fuel Tank Vent Valve

$21.99

$

Usually ships in 3-7 days

0

108

Homelite 638711004

Grommet

$4.99

$

Usually ships in 3-7 days

0

109

Homelite 760945001

Reset Button

$

$

Not available

110

Homelite 660342009

Screw (M5 x 15 mm)

$1.49

$

Usually ships in 3-7 days

0

111

Homelite 638623005

Flat Washer (ID53 x OD10 x 05t)

$1.49

$

Usually ships in 3-7 days

0

112

Homelite 638128020

Spacer

$

$

Not available

113

TG2000I02-12

T-Fitting Vapor Hose

$

$

Not available

114

Homelite 15102-HA03-0002

Vapor Hose (T-Fitting To Engine Return)

$

$

Not available

115

Homelite 870932002

Connector

$2.99

$

Usually ships in 3-7 days

0

116

Homelite 940779082

Performance Label

$

$

Not available

117

0606348

Valve Retainer

$

$

Not available

118

Homelite 08-067

Head Gasket

$1.49

$

In Stock, only 4 left!

0

119

Homelite 06-03-127

Valve spring

$1.49

$

Usually ships in 3-7 days

0

120

Homelite 03-03-1-029

Valve Seal

$1.99

$

Usually ships in 3-7 days

0

121

Homelite 06-06-372

Intake Rocker Assembly

$12.99

$

Usually ships in 3-7 days

0

122

Homelite 06-06-371

Exhaust Rocker Assembly

$14.99

$

Usually ships in 3-7 days

0

123

0606358

Oil Sensor

$

$

Not available

124

03031033

Oil Sensor Seal

$

$

Not available

125

01060190

Engine Shaft Key

$

$

Not available

126

0606370

Engine Cam

$

$

Not available

Homelite 120968010

High Altitude Kit (2000-7000 ft, Not Included)

Note: Not Shown

$

$

Not available

Homelite 991000458

Operator's Manual

$

$

Not available

Homelite 991000459

Quick Reference Guide

$1.49

$

Usually ships in 3-7 days

0
