PS i2100 G (090930305) - PowerStroke Digital Inverter Generator Figure C Parts Diagram

Digital Inverter Generator

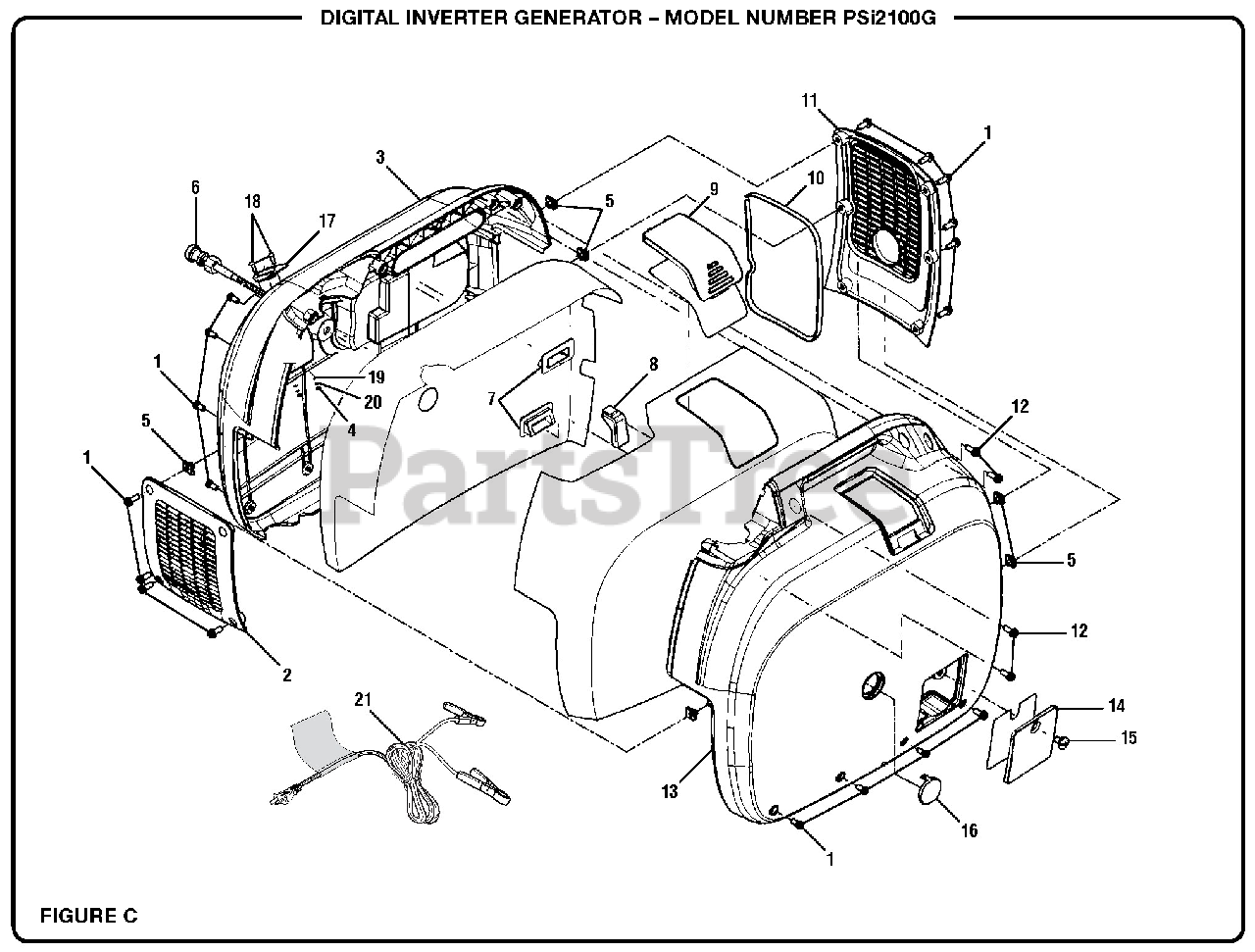

Figure C Parts Diagram

  • Title

1

Homelite GB-T9074.1-1988-M5X12

Screw (M5 x 12 mm)

$

$

Currently unavailable

2

Homelite LH2000I-385100

Air Intake Cover

$

$

Not available

3

Homelite LH2000I-383100-F-1

Right Panel w/ Sound Foam

$

$

Not available

4

Homelite GB-T6170-2000-M3

Hex Nut (M3)

$

$

Not available

5

Homelite LH1000I-381004

U-Clip w/Nut (M5)

$

$

Not available

6

Homelite LH2000I-383003

Choke Lever

$10.99

$

Usually ships in 3-7 days

0

7

Homelite LH2000I-381002

Isolator

$

$

Not available

8

Homelite LH2000I-381003

Bumper

$6.49

$

Usually ships in 3-7 days

0

9

Homelite LH2000I-382001-F

Spark Plug Cover

$

$

Not available

10

Homelite LH1000I-385003

Seal Ring

$

$

Currently unavailable

11

Homelite LH2000I-386100

Muffler Outer Cover

$51.99

$

Usually ships in 3-7 days

0

12

Homelite GB-T9074-1-1988M5X15

Screw (M5 x 15 mm)

$

$

Currently unavailable

13

Homelite LH2000I-381100-F-1

Left Panel w/ Sound Foam

$

$

Not available

14

Homelite LH2000I-384001-F

Oil Fill Cover

$

$

Not available

15

Homelite LH1000I-384002

Bolt (M6 x 13 mm)

$

$

Not available

16

Homelite LH2000I-380001-F

Fuel Drain Cover

$

$

Not available

17

Homelite LH2000I-383001

Recoil Starter Bracket

$

$

Not available

18

Homelite GB823-1986

Screw (M3 x 10 mm)

$

$

Not available

19

Homelite GB-T97-1-2002 4

Washer (M4)

$

$

Currently unavailable

20

Homelite GB-T93-1987-3

Spring Washer (M3)

$

$

Not available

21

Homelite LH1000I-366000

DC Charging Cable

$16.99

$

Usually ships in 3-7 days

0
