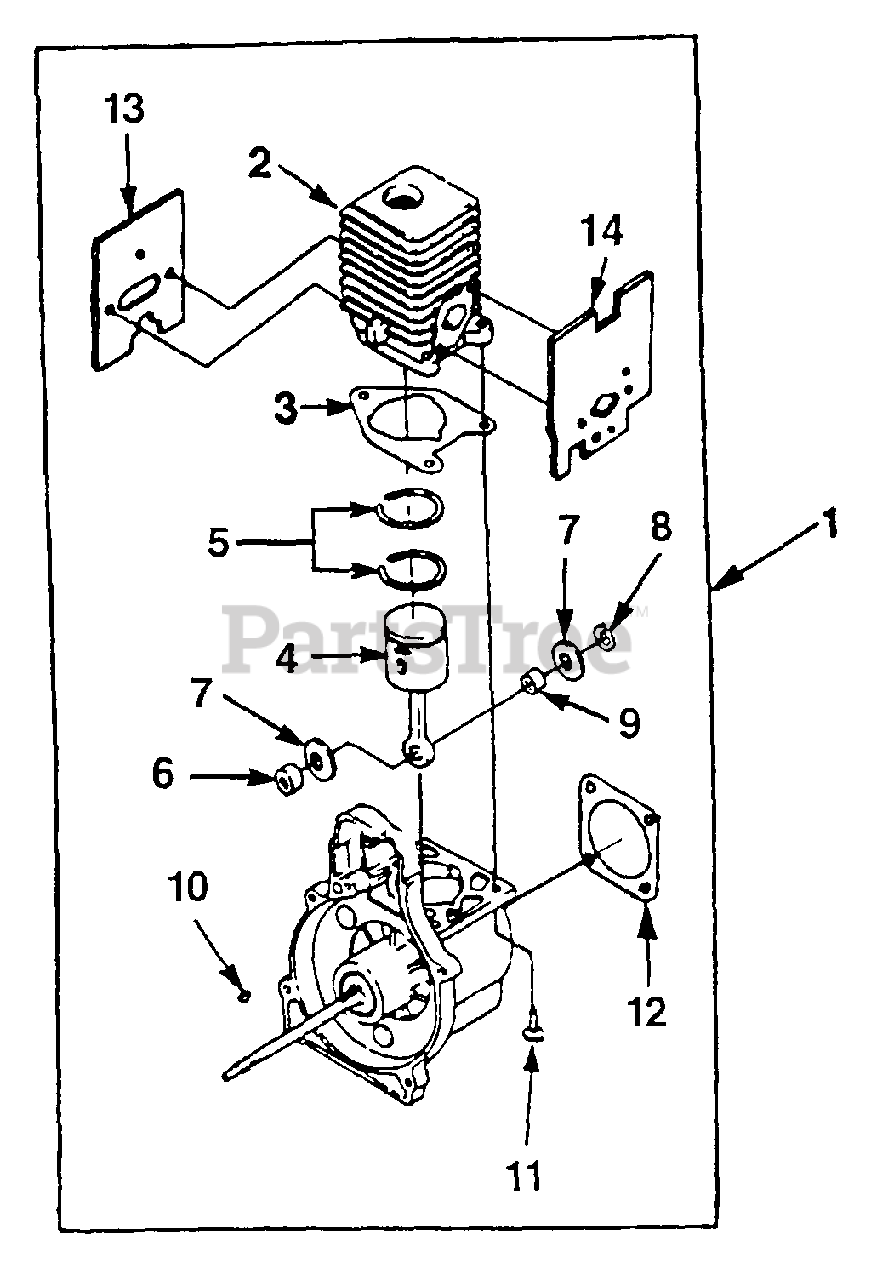

PSE 3000 (UT-20610-C) - Homelite String Trimmer Engine Internals Parts Diagram

String Trimmer

Engine Internals Parts Diagram

  • Title

1

Homelite A06262B

SHORT BLOCK
(Superseded to UP00879)

$

$

Not available

2

Homelite A04740B

CYLINDER & GASKET
(Superseded to UP07146)

$

$

Not available

3

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

4

Homelite A06291A

PISTON & ROD
(Superseded to UP03037)

$53.99

$

In Stock, only 1 left!

0

5

Homelite 03179

RING-Piston
(Superseded to 690161005)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 04860

SPACER-Bearing

$

$

Not available

7

Homelite 00118

WASHER-Thrust

$

$

Not available

8

Homelite 03796

RING-Retaining

$

$

Not available

9

Homelite 02461

BEARING-Needle

$

$

Not available

10

Homelite 69250

KEY-Woodruff

$

$

Not available

11

Homelite 825801

SCREW-Machine Pan Hd (12-24 X 3/4")

$

$

Not available

12

Homelite 98767A

GASKET-Crankcase

$

$

Not available

13

Homelite 98786C

GASKET-Muffler

$

$

Not available

14

Homelite 00775A

GASKET-Heat Dam
(Superseded to 900950001)

$1.49

$

In Stock, only 3 left!

0

Homelite A040172

CRANKCASE COVER
(Superseded to UP04878)

$

$

Not available

Homelite A040172

CRANKCASE COVER
(Superseded to UP04878)

Note: Included w/A-06262-B

$

$

Not available

Homelite 04016B

SHAFT-Starter

$

$

Not available

Homelite 04589

SPACER

$

$

Not available
