PSZ 2401 - RedMax Pole Saw (SN: 50200001 - 60600100) (2005-08) 003 - DRIVE / CUTTING UNITS Parts Diagram

Pole Saw

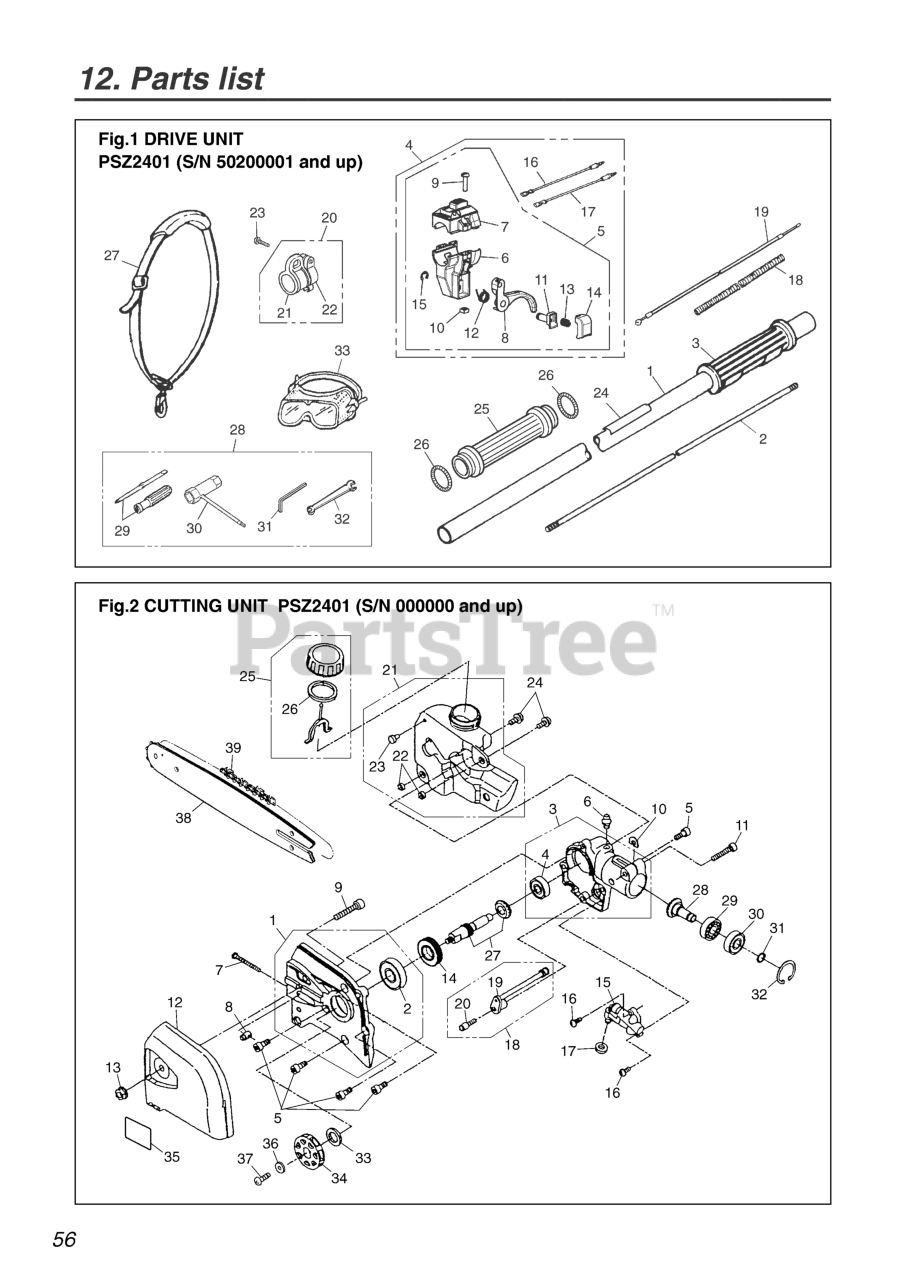

003 - DRIVE / CUTTING UNITS Parts Diagram

  • Title

1

RedMax 848J8S5820

PIPE COMP.
(Superseded to 528868901)

$65.99

$

In Stock, only 2 left!

0

2

RedMax 352012213

SHAFT (RPLS -12212)
(Superseded to 514344201)

$45.99

$

Usually ships in 3-10 days

0

3

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

4

RedMax 8488R20343

LEVER ASSY. (RPLS. T3002-12203
(Superseded to 521529701)

$

$

Not available

5

RedMax 8488R20313

LEVER ASSY (RPLS. 6110-14412)
(Superseded to 521529601)

$

$

Not available

6

RedMax 61101441001

STAY

$

$

Not available

7

RedMax 61101441002

COVER (USE 848-8RA-0340)

$

$

Not available

8

RedMax T30021220203

FLEX, TRIGGER
(Superseded to 570907201)

$

$

Not available

9

RedMax 61101441004

SCREW

$

$

Not available

10

RedMax 61101441005

NUT

$

$

Not available

11

RedMax 61101441006

SHAFT

$

$

Not available

12

RedMax 61101441007

SPRING

$

$

Not available

13

RedMax 61101441008

SPRING

$

$

Not available

14

RedMax T30321441009

BUTTON

$4.10

$

Usually ships in 3-10 days

0

15

RedMax 61101441010

E-RING

$

$

Not available

16

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$7.99

$

Usually ships in 3-10 days

0

17

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$17.99

$

Usually ships in 3-10 days

0

18

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$

$

Not available

19

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$

$

Not available

20

RedMax T330017202

HANGER COMP.
(Superseded to 521822101)

$

$

Not available

21

RedMax T330017212

HANGER

$

$

Not available

22

RedMax T330017222

CLAMP

$

$

Not available

23

RedMax 8488052000

SCREW
(Superseded to 521515301)

$3.49

$

In Stock, only 2 left!

0

24

RedMax 848A5690R0

NAME PLATE

$

$

Not available

25

RedMax 644211332

GRIP
(Superseded to 515633801)

$71.99

$

Usually ships in 3-10 days

0

26

RedMax 613011341

SPRING
(Superseded to 515540501)

$13.99

$

Usually ships in 3-10 days

0

27

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

28

RedMax 8488U00010

TOOL-SET
(Superseded to 521532201)

$

$

Not available

29

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

30

RedMax T401791130

SOCKET

$11.01

$

Usually ships in 3-10 days

0

31

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

32

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$5.99

$

Usually ships in 3-10 days

0

33

RedMax 848A5692C0

GOGGLE
(Superseded to 510989401)

$

$

Not available

A1

RedMax 848A526211

848-A52-9810
(Superseded to 521536901)

$239.99

$

Usually ships in 3-10 days

0

A2

RedMax 0600406001

BEARING
(Superseded to 506610101)

$8.49

$

In Stock, only 2 left!

0

A3

RedMax T307313200

GEARCASE COMP (RIGHT)
(Superseded to 521808901)

$

$

Not available

A4

RedMax 0600200627

BEARING

$5.20

$

Usually ships in 3-10 days

0

A5

RedMax 0125230512

BOLT, M5 x 12
(Superseded to 516070401)

$4.99

$

Usually ships in 3-10 days

0

A6

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$5.99

$

In Stock, only 1 left!

0

A7

RedMax T307313310

SCREW
(Superseded to 521809101)

$

$

Not available

A8

RedMax T307313320

NUT
(Superseded to 521809201)

$5.99

$

In Stock, only 2 left!

0

A9

RedMax 0125230630

BOLT, M6 x 30
(Superseded to 522655401)

$3.49

$

Usually ships in 3-10 days

0

A10

RedMax T307313250

SHIM
(Superseded to 521809001)

$

$

Not available

A11

RedMax 324511350

BOLT

$0.70

$

Usually ships in 3-10 days

0

A12

RedMax T307313510

COVER, CHAIN
(Superseded to 521809701)

$

$

Not available

A13

RedMax T307313520

NUT
(Superseded to 521809801)

$3.49

$

In Stock, only 3 left!

0

A14

RedMax T307313560

GEAR, WORM
(Superseded to 521810201)

$

$

Not available

A15

RedMax T307313550

PUMP ASSY, OIL
(Superseded to 521810101)

$

$

Not available

A16

RedMax 026330410

SCREW, M4 x 10

$0.17

$

Usually ships in 3-10 days

0

A17

RedMax T307313580

GASKET
(Superseded to 521810301)

$

$

Not available

A18

RedMax T307313700

PIPE ASSY, OIL
(Superseded to 521810501)

$

$

Not available

A19

RedMax T307313710

PIPE, OIL
(Superseded to 521810601)

$

$

Not available

A20

RedMax T307313720

FILTER
(Superseded to 521810701)

$

$

Not available

A21

RedMax 848A525511

TANK ASSY, OIL
(Superseded to 521536701)

$

$

Not available

A22

RedMax T307313820

COLLAR
(Superseded to 521810901)

$

$

Not available

A23

RedMax T307313830

VALVE
(Superseded to 521811001)

$

$

Not available

A24

RedMax T307313860

SCREW, M5 X 12
(Superseded to 521811101)

$

$

Not available

A25

RedMax T307313900

CAP ASSY, OIL
(Superseded to 521811201)

$

$

Not available

A26

RedMax T307313920

GASKET, OIL CAP
(Superseded to 521811301)

$

$

Not available

A27

RedMax T307313370

SHAFT, GEAR
(Superseded to 521809501)

$

$

Not available

A28

RedMax T307313380

GEAR, BEVEL
(Superseded to 521809601)

$

$

Not available

A29

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$7.49

$

In Stock, only 3 left!

0

A30

RedMax 0600200609

BEARING

$5.20

$

Usually ships in 3-10 days

0

A31

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$7.99

$

Usually ships in 3-10 days

0

A32

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$

$

Not available

A33

RedMax T307313530

COLLAR
(Superseded to 521809901)

$

$

Not available

A34

RedMax T307313540

SPROCKET
(Superseded to 521810001)

$

$

Not available

A35

RedMax T307313590

LABEL (PSZ2500)
(Superseded to 521810401)

$

$

Not available

A36

RedMax T307313350

WASHER
(Superseded to 521809301)

$

$

Not available

A37

RedMax T307313360

SCREW
(Superseded to 521809401)

$

$

Not available

A38

RedMax PS0011

12
(Superseded to 574145501)

$

$

Not available

A39

RedMax 90SG44X

12
(Superseded to 574102601)

$

$

Not available
