PSZ 2460 S - RedMax Pole Saw (2010-04) 002 - DRIVE UNIT Parts Diagram

Pole Saw

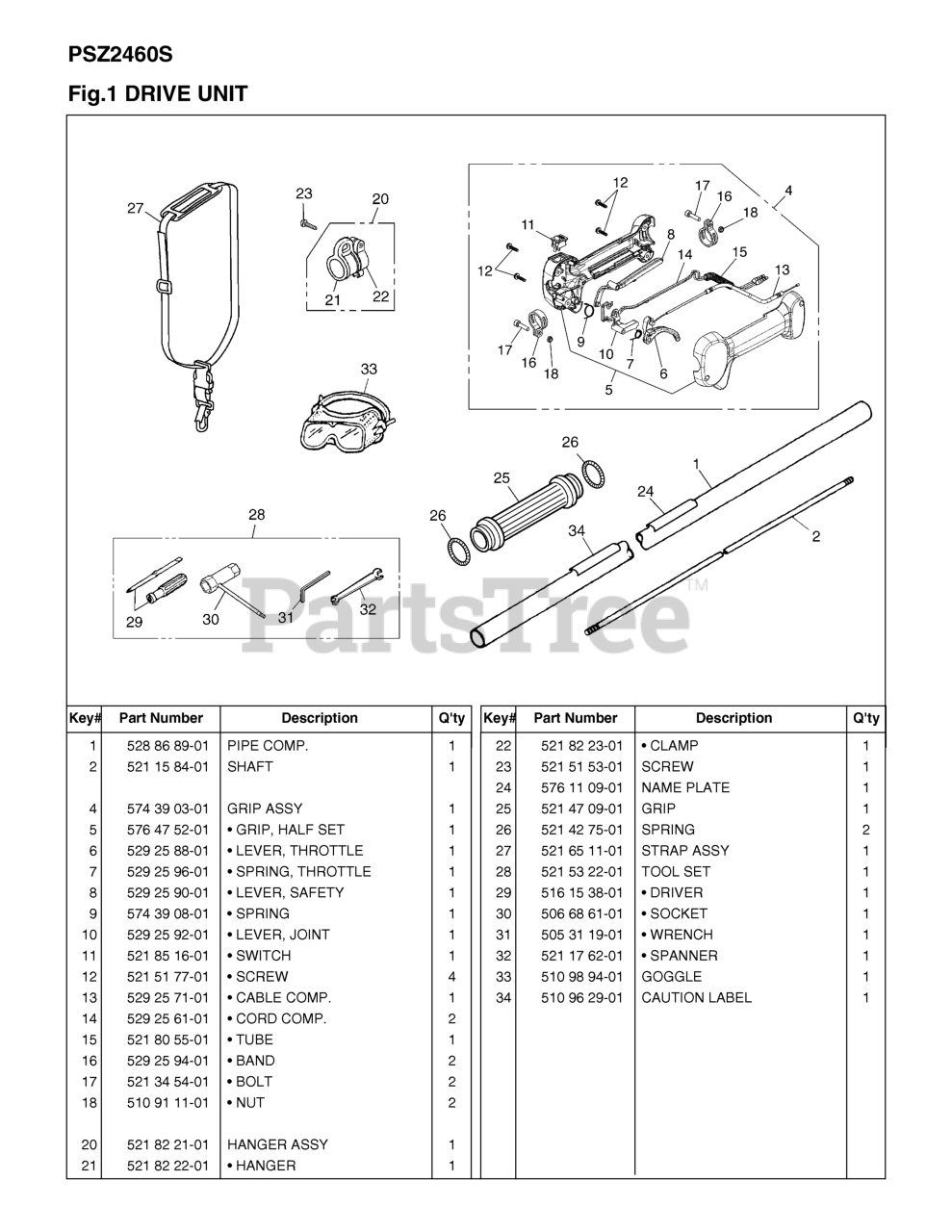

002 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP.

$66.99

$

In Stock, only 3 left!

0

2

RedMax 521158401

SHAFT (RPLS -122
(Superseded to 514344201)

$53.99

$

In Stock, only 2 left!

0

4

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

5

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

Usually ships in 3-10 days

0

6

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

7

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

8

RedMax 529259001

LEVER FOR GRIP (
(Superseded to 578778001)

$3.99

$

In Stock, only 1 left!

0

9

RedMax 574390801

SPRING

$3.99

$

In Stock, only 3 left!

0

10

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

11

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

12

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

13

RedMax 529257101

CABLE-C

$12.99

$

In Stock, Qty 6

0

14

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

15

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

17

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

In Stock, Qty 12

0

18

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

20

RedMax 521822101

HANGER COMP.

$

$

Not available

21

RedMax 521822201

HANGER
(Superseded to 521822101)

$

$

Not available

22

RedMax 521822301

CLAMP

$

$

Not available

23

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 576110901

NAME PLATE

$3.34

$

Usually ships in 3-10 days

0

25

RedMax 521470901

GRIP
(Superseded to 515633801)

$40.99

$

Usually ships in 3-10 days

0

26

RedMax 521427501

SPRING
(Superseded to 515540501)

$7.49

$

Usually ships in 3-10 days

0

27

RedMax 521651101

STRAP ASSY

$15.99

$

Usually ships in 3-10 days

0

28

RedMax 521532201

TOOL-SET

$18.99

$

Usually ships in 3-10 days

0

29

RedMax 516153801

SCREWDRIVER
(Superseded to 506689501)

$7.99

$

Usually ships in 3-10 days

0

30

RedMax 506686101

SOCKET

$6.99

$

In Stock, only 4 left!

0

31

RedMax 505311901

WRENCH

$

$

Not available

32

RedMax 521176201

SPANNER,8 x 10(R
(Superseded to 514363701)

$7.49

$

In Stock, Qty 10

0

33

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

34

RedMax 510962901

LABEL CAUTON FOR

$7.49

$

Usually ships in 3-10 days

0
