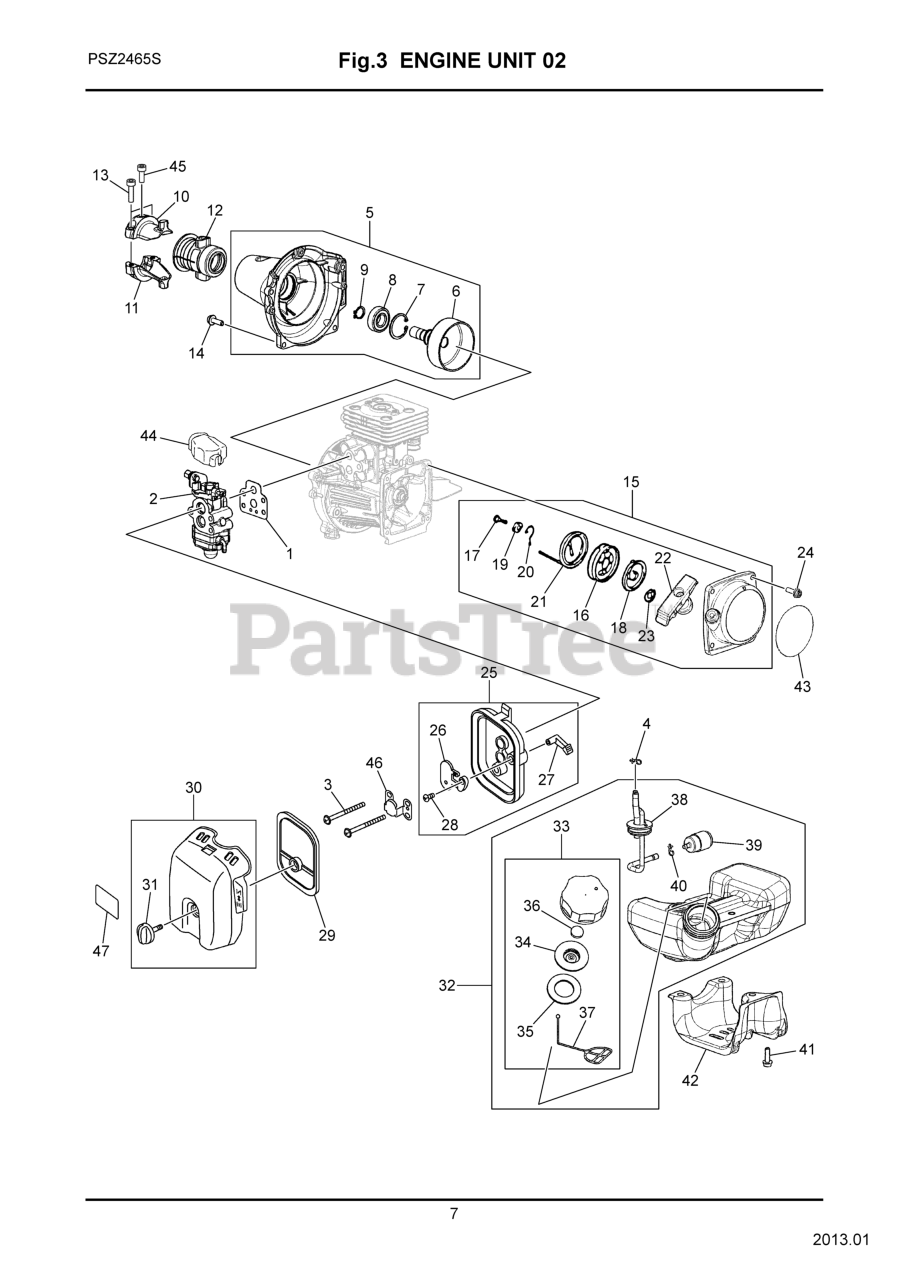

PSZ 2465 S - RedMax Pole Saw (SN: 30000000 & Above) ENGINE Parts Diagram

Pole Saw

ENGINE Parts Diagram

  • Title

1

RedMax 521755001

GASKET, CARB (RPLS T155113131)

$4.99

$

In Stock, Qty 20+

0

2

RedMax 575459001

CARBURETOR ASSY

$182.99

$

In Stock, Qty 5

0

3

RedMax 521515501

BOLT TORX

$4.99

$

In Stock, only 2 left!

0

4

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

5

RedMax 528058501

COVER, C

$100.99

$

In Stock, only 4 left!

0

6

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, Qty 5

0

7

RedMax 506609901

RING

$4.99

$

In Stock, only 1 left!

0

8

RedMax 525953201

BEARING

$14.99

$

Usually ships in 3-10 days

0

9

RedMax 516124101

RING

$4.99

$

In Stock, only 1 left!

0

10

RedMax 521768201

BRACKET (A) (RPLS T170031211)

$8.99

$

Usually ships in 3-10 days

0

11

RedMax 521768301

BRACKET (B)

$9.99

$

In Stock, only 1 left!

0

12

RedMax 512360501

CUSHION

$24.99

$

Usually ships in 3-10 days

0

13

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

14

RedMax 515391301

BOLT

$4.99

$

In Stock, only 4 left!

0

15

RedMax 512328801

RECOIL ASSY

$67.99

$

In Stock, Qty 20+

0

16

RedMax 504114701

REEL

$10.99

$

In Stock, Qty 20+

0

17

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

18

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$10.99

$

In Stock, Qty 20+

0

19

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 12

0

20

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 12

0

21

RedMax 504114901

ROPE

$8.99

$

In Stock, only 3 left!

0

22

RedMax 506614701

KNOB

$6.49

$

In Stock, Qty 7

0

23

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

24

RedMax 506745601

BOLT

$3.99

$

In Stock, Qty 20+

0

25

RedMax 528074901

CLEANER BODY ASSY

$24.99

$

In Stock, only 1 left!

0

26

RedMax 528074301

PLATE, CHOKE

$

$

Not available

27

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

28

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 12

0

29

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

30

RedMax 575832701

COVER ASSY
(Superseded to 575331103)

$9.99

$

In Stock, Qty 20+

0

31

RedMax 528074601

Cleaner Knob

$6.49

$

In Stock, only 2 left!

0

32

RedMax 579142601

TANK ASSY
(Superseded to 581493301)

$87.99

$

Usually ships in 3-10 days

0

33

RedMax 505309601

CAP A

$11.99

$

In Stock, only 1 left!

0

34

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

In Stock, only 1 left!

0

35

RedMax 506744301

PACKING

$4.99

$

In Stock, Qty 8

0

36

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

37

RedMax 506745801

STOPPER

$4.99

$

In Stock, Qty 5

0

38

RedMax 579138307

PIPE ASSY

$11.99

$

Usually ships in 3-10 days

0

39

RedMax 506614601

FILTER
(Superseded to 520953501)

$10.99

$

Usually ships in 3-10 days

0

40

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 13

0

41

RedMax 515391301

BOLT

$4.99

$

In Stock, only 4 left!

0

42

RedMax 512326501

GUARD

$

$

Not available

43

RedMax 528052501

LABEL, RECOIL

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 506744201

COVER

$10.99

$

Usually ships in 3-10 days

0

45

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

46

RedMax 575750401

PLATE

$3.99

$

In Stock, Qty 7

0

47

RedMax 523071401

LABEL

$7.49

$

Usually ships in 3-10 days
