PSZ 2465 S - RedMax Pole Saw (SN: 30000000 & Above) GEAR HOUSING CUTTING UNIT Parts Diagram

Pole Saw

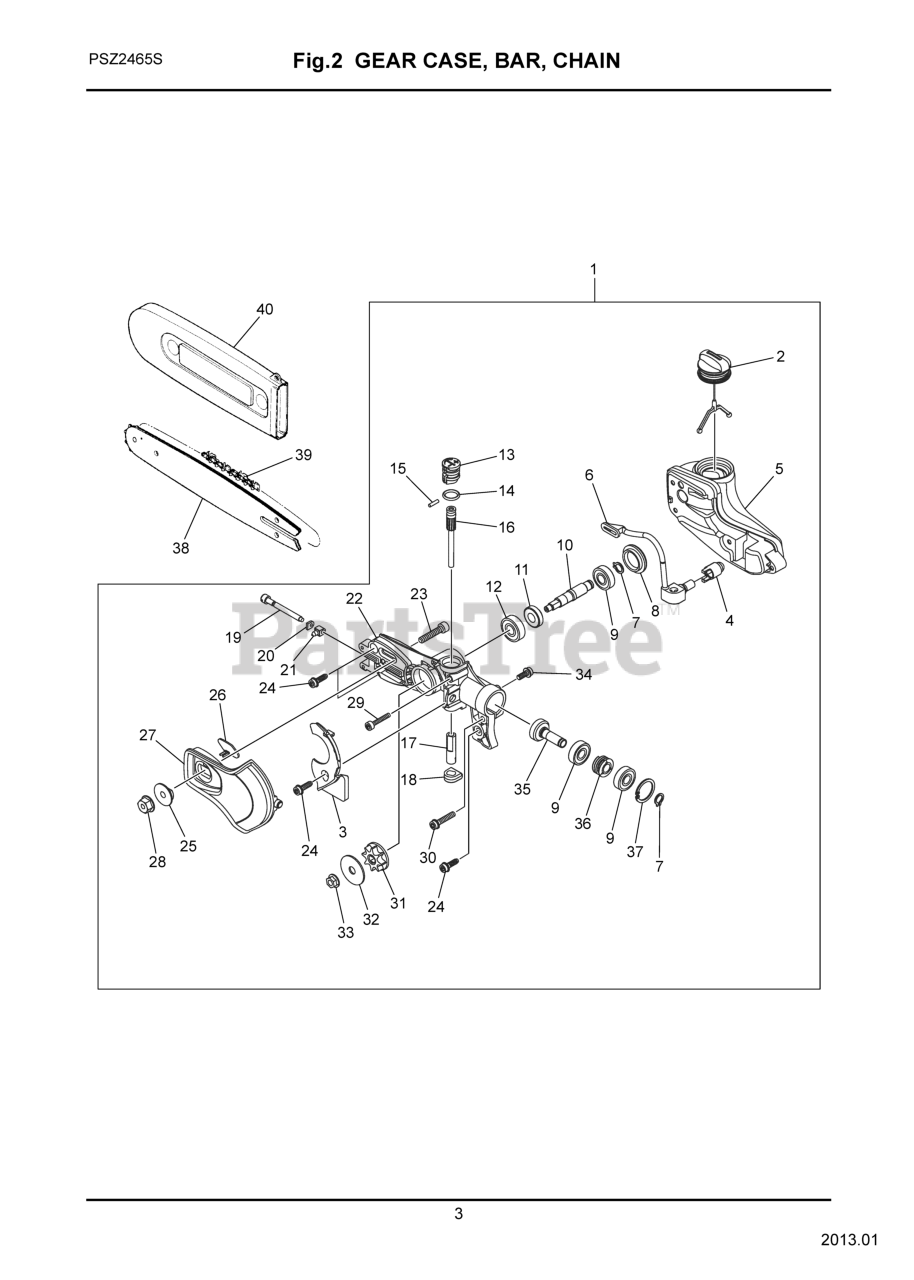

GEAR HOUSING CUTTING UNIT Parts Diagram

  • Title

1

RedMax 575784304

POLE SAW HEAD

$

$

Not available

2

RedMax 505415204

TANK CAP ASSY
(Superseded to 505415206)

$13.99

$

In Stock, only 2 left!

0

3

RedMax 525613102

COVER

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 510044301

OIL SCREEN

$5.99

$

In Stock, Qty 5

0

5

RedMax 525481101

OIL TANK ASSY
(Superseded to 577667001)

$26.99

$

In Stock, only 2 left!

0

6

RedMax 525490601

OIL HOSE

$9.49

$

In Stock, only 2 left!

0

7

RedMax 735311100

RETAINING RING

$2.49

$

In Stock, only 2 left!

0

8

RedMax 574829801

COVER

$7.99

$

Usually ships in 3-10 days

0

9

RedMax 578364401

BEARING

$9.49

$

Usually ships in 3-10 days

0

10

RedMax 525490401

SHAFT

$45.99

$

Usually ships in 3-10 days

0

11

RedMax 575355601

GEAR WHEEL

$22.99

$

Usually ships in 3-10 days

0

12

RedMax 738210004

BALL BEARING

$20.99

$

In Stock, only 1 left!

0

13

RedMax 525481602

KNOB

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 740431014

O-RING

$3.49

$

In Stock, only 1 left!

0

15

RedMax 503240911

NEEDLE ROLLER

$3.49

$

In Stock, only 2 left!

0

16

RedMax 503932101

%PUMP PISTON
(Superseded to 540057901)

$20.99

$

In Stock, Qty 13

0

17

RedMax 537154801

PUMP CYLINDER

$13.99

$

In Stock, Qty 6

0

18

RedMax 576395901

FASTENER

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 501819201

SCREW

$10.99

$

In Stock, Qty 10

0

20

RedMax 501452702

NUT

$4.49

$

In Stock, Qty 20+

0

21

RedMax 580653201

PAWL

$6.99

$

In Stock, only 2 left!

0

22

RedMax 523853702

GEAR HOUSING

$34.99

$

In Stock, only 1 left!

0

23

RedMax 576831001

SCREW IHSCM

$5.49

$

In Stock, only 2 left!

0

24

RedMax 573925801

SCREW

$3.49

$

Usually ships in 3-10 days

0

25

RedMax 525490701

BUSHING

$13.99

$

Usually ships in 3-10 days

0

26

RedMax 574404701

RUBBER

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 525481402

COVER

$5.99

$

Usually ships in 3-10 days

0

28

RedMax 503220007

HEXAGON NUT FLANGED

$14.99

$

In Stock, only 2 left!

0

29

RedMax 525760905

SCREW ITXSCM

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 525755104

SCREW

$3.49

$

Usually ships in 3-10 days

0

31

RedMax 525490501

SPUR SPROCKET

$7.99

$

Usually ships in 3-10 days

0

32

RedMax 576740001

WASHER
(Superseded to 585841901)

$9.49

$

In Stock, only 1 left!

0

33

RedMax 731711651

FLANGE NUT

$3.49

$

In Stock, only 2 left!

0

34

RedMax 525755105

SCREW

$

$

Not available

35

RedMax 575355501

PINION

$22.99

$

Usually ships in 3-10 days

0

36

RedMax 525489701

WORM GEAR

$6.99

$

Usually ships in 3-10 days

0

37

RedMax 735312510

RETAINING RING

$3.49

$

In Stock, only 2 left!

0

38

RedMax 512521601

BAR 12" (FITS: PS2401) PS0011

$

$

Not available

39

RedMax 512521701

CHAIN 19VG-J44E

$

$

Not available

40

RedMax 362252310

$

$

Not available
