PT 100 - Poulan Pro Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

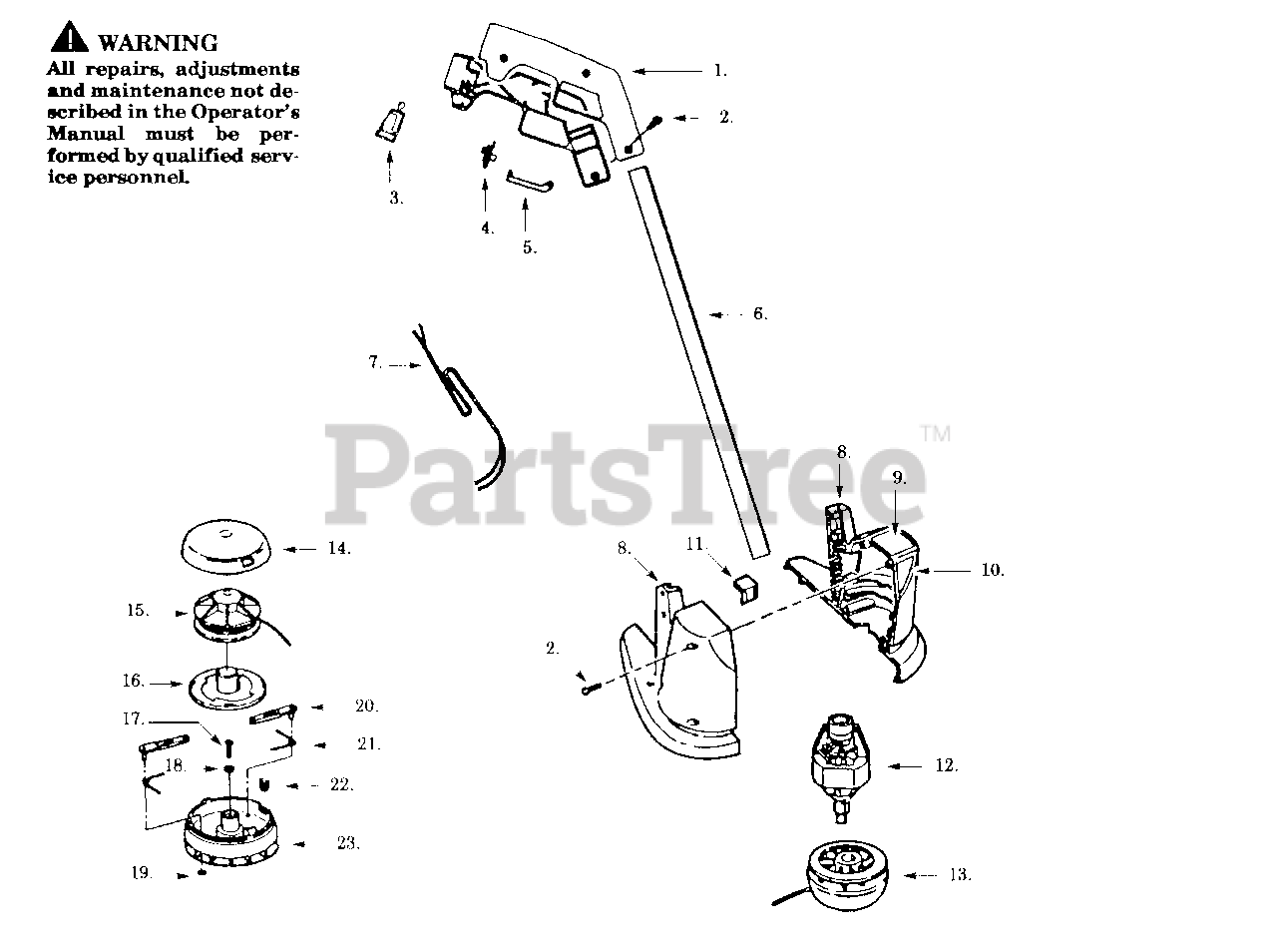

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530351822

Handle Set

$

$

Not available

2

Poulan 534193800

Screw

$

$

Not available

3

Poulan 530347653

Cord Retainer

$

$

Not available

4

Poulan 530347897

On/Off Switch

$

$

Not available

5

Poulan 530351826

Trigger Switch

$

$

Not available

6

Poulan 534014579

Tube Ass'y. w/ Decal

$

$

Not available

7

Poulan 534014581

Plug/Harness Ass'y.

$

$

Not available

8

Poulan 534014580

Housing Set

$

$

Not available

9

Poulan 534036697

Housing Top Label (Not a serviceable part)

$

$

Not available

10

Poulan 534036696

Hsg. Front Label

$

$

Not available

11

Poulan 534958002

Blade/Bracket Ass'y.

$

$

Not available

12

Poulan 534102003

Motor Ass'y.

$

$

Not available

13

Poulan 534918301

Cutting Head Ass'y.

$

$

Not available

14

Poulan 534919200

Cover

$

$

Not available

15

Poulan 534919002

Spool w/Line

$

$

Not available

16

Poulan 534100640

Cam

$

$

Not available

17

Poulan 534978600

Screw

$

$

Not available

18

Poulan 534908700

Washer

$

$

Not available

19

Poulan 534400701

Push Nut

$

$

Not available

20

Poulan 530400713

Arm

$

$

Not available

21

Poulan 534908501

Spring

$

$

Not available

22

Poulan 534918500

Line Shield

$

$

Not available

23

Poulan 530400739

Housing Ass'y.

$

$

Not available

Poulan 534068465

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 534061527

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
