PT 120-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

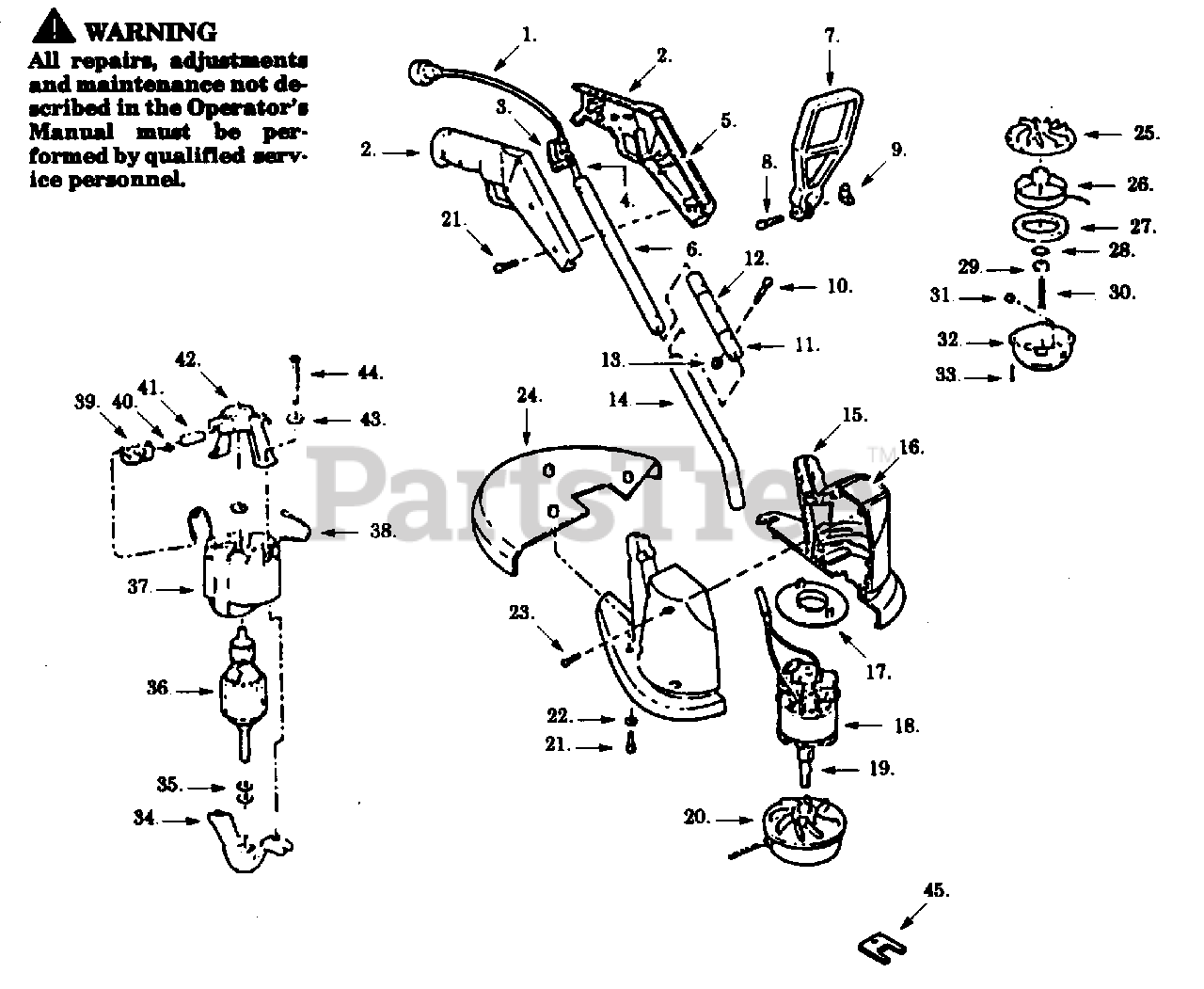

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534234500

Power Cord

$

$

Not available

2

Poulan 534356742

Handle Set

$

$

Not available

3

Poulan 534193001

Trigger Switch

$

$

Not available

4

Poulan 534162315

Harness

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 534795300

Handle Label

$

$

Not available

6

Poulan 534379801

Upper Tube

$

$

Not available

7

Poulan 534156415

Assist Handle Ass'y.

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 534218105

Bolt

$1.49

$

Usually ships in 3-10 days

0

9

Poulan 534437000

Wing Nut

$

$

Not available

10

Poulan 534393300

Screw

$

$

Not available

11

Poulan 534393200

Outer Tube

$

$

Not available

12

Poulan 534764300

Warning Label

$

$

Not available

13

Poulan 534393500

Locknut

$1.49

$

Usually ships in 3-10 days

0

14

Poulan 534360300

Lower Tube

$

$

Not available

15

Poulan 534273532

Housing Set

$

$

Not available

16

Poulan 534795400

Housing Top Label

$

$

Not available

17

Poulan 534455305

Air Baffle

$

$

Not available

18

Poulan 534450007

Motor

$

$

Not available

19

Poulan 534167100

Shaft Adapter

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 534167065

Cutting Head Ass'y.

$

$

Not available

21

Poulan 534193700

Screw

$

$

Not available

22

Poulan 534653000

Washer

$1.49

$

Usually ships in 3-10 days

0

23

Poulan 534193800

Screw

$

$

Not available

24

Poulan 534368003

Guard & Blade Ass'y.

$

$

Not available

25

Poulan 534167215

Rear Plate

$

$

Not available

26

Poulan 534167815

Spool & Line

$

$

Not available

27

Poulan 534167700

Foam Pad

$

$

Not available

28

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

29

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

30

Poulan 534819200

Spring

$

$

Not available

31

Poulan 534167600

Eyelet

$

$

Not available

32

Poulan 534167935

Hub Ass'y.

$

$

Not available

33

Poulan 534270301

Cotter Pin

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534872701

Endbell Ass'y. (Drive)

$

$

Not available

35

Poulan 534520022

Washer

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534367600

Armature Ass'y.

$

$

Not available

37

Poulan 534367801

Field Ass'y.

$

$

Not available

38

Poulan 534810031

Leadwire Ass'y.

$

$

Not available

39

Poulan 534260007

Brush Holder Ass'y.

$

$

Not available

40

Poulan 534570009

Brush Spring

$

$

Not available

41

Poulan 534200018

Brush

$

$

Not available

42

Poulan 534710641

Endbell Ass'y. (Brush)

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 534500261

Screw

$

$

Not available

45

Poulan 534166800

Spanner Wrench

$

$

Not available

46

Poulan 534885740

Operator Manual

Note: Not Shown.

$

$

Not available
