PT 120-01 - Poulan Pro Trimmer, Electric TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

Trimmer, Electric

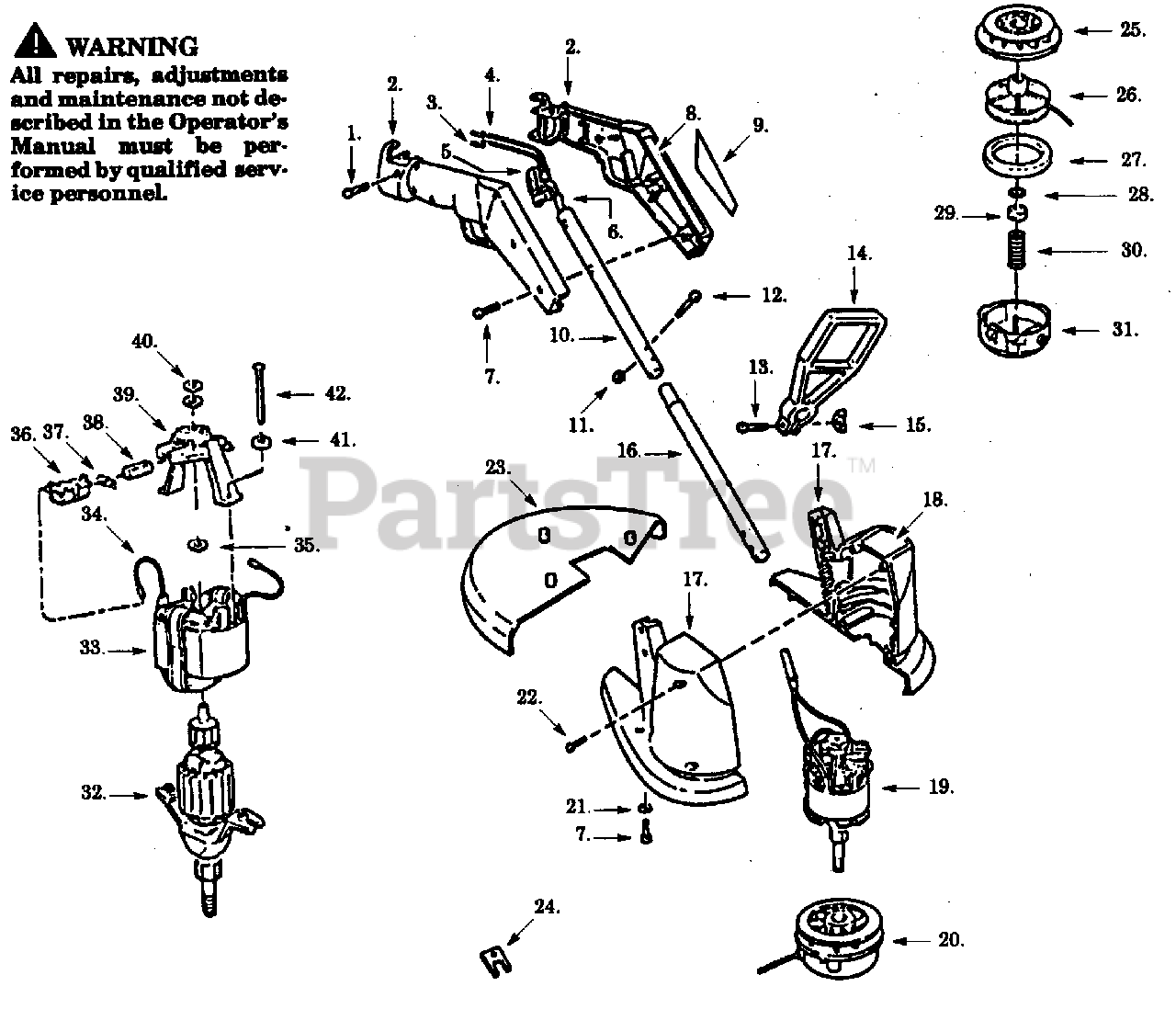

TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826502

Handle Set

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 534825700

Wire Terminal Ass'y.

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534827900

Wire Terminal Ass'y.

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 534193003

Trigger Switch

$

$

Not available

6

Poulan 534866001

Harness Ass'y.

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 534826801

Screw

$

$

Not available

8

Poulan 534795300

Handle Label

$

$

Not available

9

Poulan 534837000

Warning Label (Not a serviceable part)

$

$

Not available

10

Poulan 534828100

Upper Tube

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 534828300

Stop Nut

$

$

Not available

12

Poulan 534829600

Screw

$

$

Not available

13

Poulan 534828400

Bolt

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534156405

Assist Handle

$

$

Not available

15

Poulan 534828500

Wing Nut

$

$

Not available

16

Poulan 534828200

Lower Tube

$

$

Not available

17

Poulan 534826602

Housing Set

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 534795400

Housing Top Label

$

$

Not available

19

Poulan 534780003

Motor Ass'y.

$78.99

$

Usually ships in 3-10 days

0

20

Poulan 534167012

Cutting Head Ass'y.

$

$

Not available

21

Poulan 534828700

Washer

$2.49

$

Usually ships in 3-10 days

0

22

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

23

Poulan 534368003

Guard & Blade Ass'y.

$

$

Not available

24

Poulan 534166800

Wrench

$

$

Not available

25

Poulan 534832900

Rear Plate/Baffle Ass'y

$

$

Not available

26

Poulan 534167815

Spool & Line

$

$

Not available

27

Poulan 534167700

Foam Pad

$

$

Not available

28

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

29

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

30

Poulan 534819200

Spring

$

$

Not available

31

Poulan 534167935

Hub Ass'y.

$

$

Not available

32

Poulan 534874303

Armature Endbell

$

$

Not available

33

Poulan 534367803

Field Ass'y.

$

$

Not available

34

Poulan 534810031

Lead Wire Ass'y.

$

$

Not available

35

Poulan 534494616

Washer

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534260007

Brush Holder Ass'y.

$

$

Not available

37

Poulan 534570009

Brush Spring

$

$

Not available

38

Poulan 534200018

Brush

$

$

Not available

39

Poulan 534710641

Endbell Ass'y. (Brush)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

41

Poulan 534520020

Lockwasher

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 534500261

Screw

$

$

Not available

43

Poulan 534886330

Operator Manual

Note: Not Shown.

$

$

Not available
