PT 120-03 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

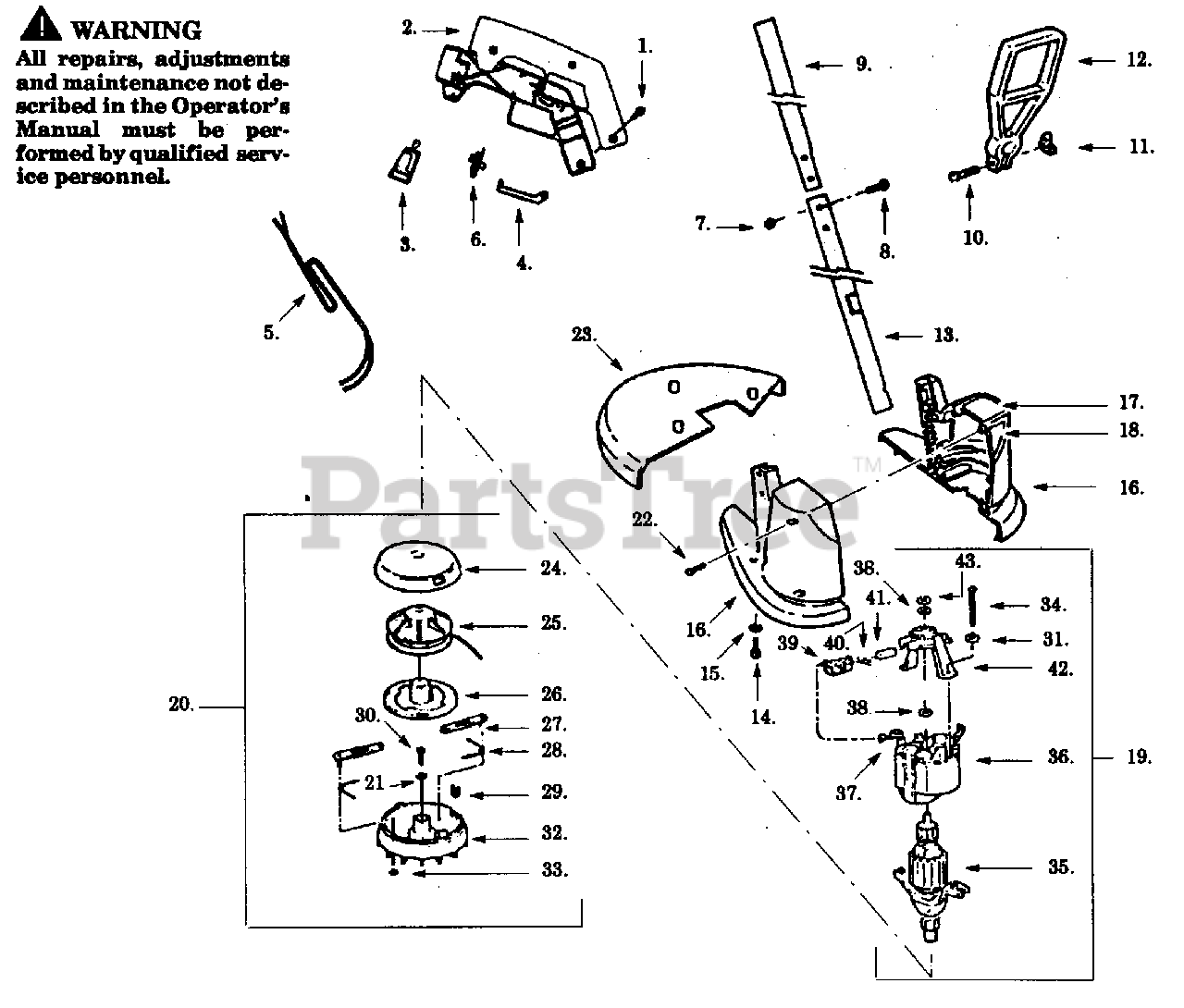

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534193800

Screw

$

$

Not available

2

Poulan 530351822

Handle Set

$

$

Not available

3

Poulan 530347653

Cord Retainer

$

$

Not available

4

Poulan 530351826

Trigger Switch

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 534014601

Harness Assembly

$

$

Not available

6

Poulan 530347897

On/Off Switch

$

$

Not available

7

Poulan 530015653

Nut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530346034

Screw

$

$

Not available

9

Poulan 534500111

Upper Handle Tube

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530625509

Screw

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530400013

Wing Nut

$

$

Not available

12

Poulan 534036733

Assist Handle

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 534014599

Tube Assy. w/ Decal

$8.99

$

Usually ships in 3-10 days

0

14

Poulan 534193700

Screw

$

$

Not available

15

Poulan 530015992

Washer

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 534014580

Housing Set

$18.99

$

Usually ships in 3-10 days

0

17

Poulan 534036745

Decal (Not a serviceable part)

$

$

Not available

18

Poulan 534036696

Decal (Not a serviceable part)

$

$

Not available

19

Poulan 534968403

Motor Assembly

$91.99

$

Usually ships in 3-10 days

0

20

Poulan 534918302

Cutting Head Ass'y

$

$

Not available

21

Poulan 534908700

Washer

$

$

Not available

22

Poulan 534193800

Screw

$

$

Not available

23

Poulan 534368004

Guard

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 534919200

Cover

$

$

Not available

25

Poulan 534919001

Spool w/Line

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 534100640

Cam

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530400713

Arm

$

$

Not available

28

Poulan 534908501

Spring

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 534918500

Line Saver

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534978600

Screw

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 534520020

Washer

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 530400739

Housing Ass'y. (Inc. 27,28,29,32,33)

$

$

Not available

33

Poulan 534400701

Nut

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534500261

Screw

$

$

Not available

35

Poulan 534981703

Armature/End Bell

$

$

Not available

36

Poulan 534367803

Field Ass'y

$

$

Not available

37

Poulan 534927300

Terminal Bridge

$

$

Not available

38

Poulan 534494616

Washer

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534260007

Brush Holder Ass'y

$

$

Not available

40

Poulan 534570009

Spring

$

$

Not available

41

Poulan 534200018

Brush

$

$

Not available

42

Poulan 534872601

End Bell Ass'y

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 534246701

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

Poulan 534068490

Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 534061540

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 534014596

Carton Contents Bag

Note: Not Shown.

$

$

Not available
