PT 1400-00 - Paramount Trimmer, Electric CUTTING HEAD ASSEMBLY Parts Diagram

Trimmer, Electric

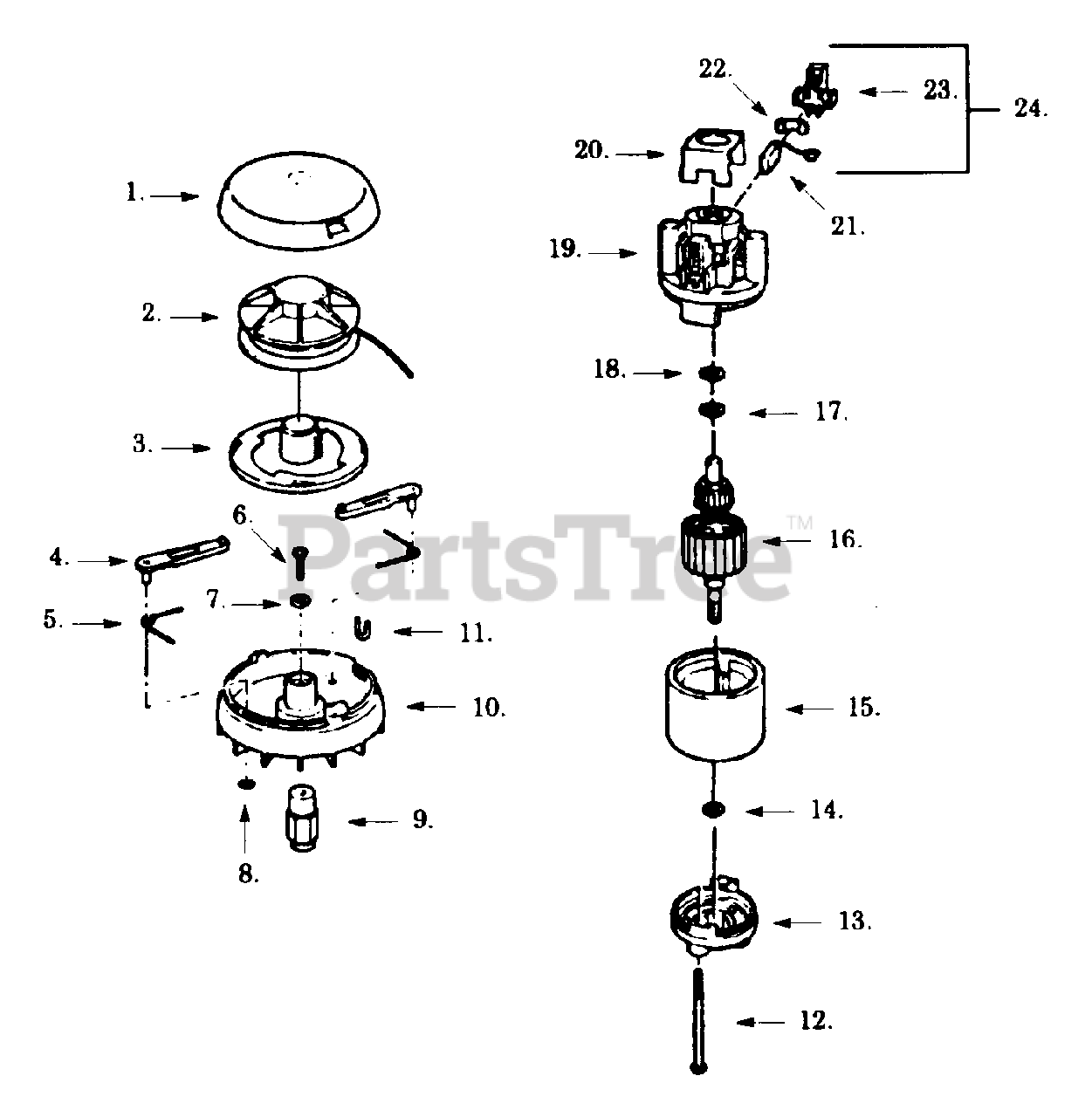

CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Poulan 534899400

Cover

$

$

Not available

2

Poulan 534907901

Spool & Line

$

$

Not available

3

Poulan 534839100

Cam

$

$

Not available

4

Poulan 534899200

Arm

$

$

Not available

5

Poulan 534908500

Spring

$

$

Not available

6

Poulan 534136401

Screw

$

$

Not available

7

Poulan 534908700

Washer

$

$

Not available

8

Poulan 534400700

Push Nut

$

$

Not available

9

Poulan 534900301

Drive Adapter

$

$

Not available

10

Poulan 534980301

Housing Head

$

$

Not available

11

Poulan 534900200

Line Shield

$

$

Not available

12

Poulan 534228703

Screw

$

$

Not available

13

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

14

Poulan 534228800

Washer

$

$

Not available

15

Poulan 534227004

Field Ass'y.

$

$

Not available

16

Poulan 534767701

Armature Ass'y.

$

$

Not available

17

Poulan 534228802

Washer

$

$

Not available

18

Poulan 534238903

Washer

$

$

Not available

19

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

20

Poulan 534226000

Insulator

$

$

Not available

21

Poulan 534227800

Brush

$

$

Not available

22

Poulan 534228000

Brush Spring

$

$

Not available

23

Poulan 534227700

Brush Holder

$

$

Not available

24

Poulan 534450400

Brush Kit (Incl. 21,22,23)

$

$

Not available
