PT 1400-00 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

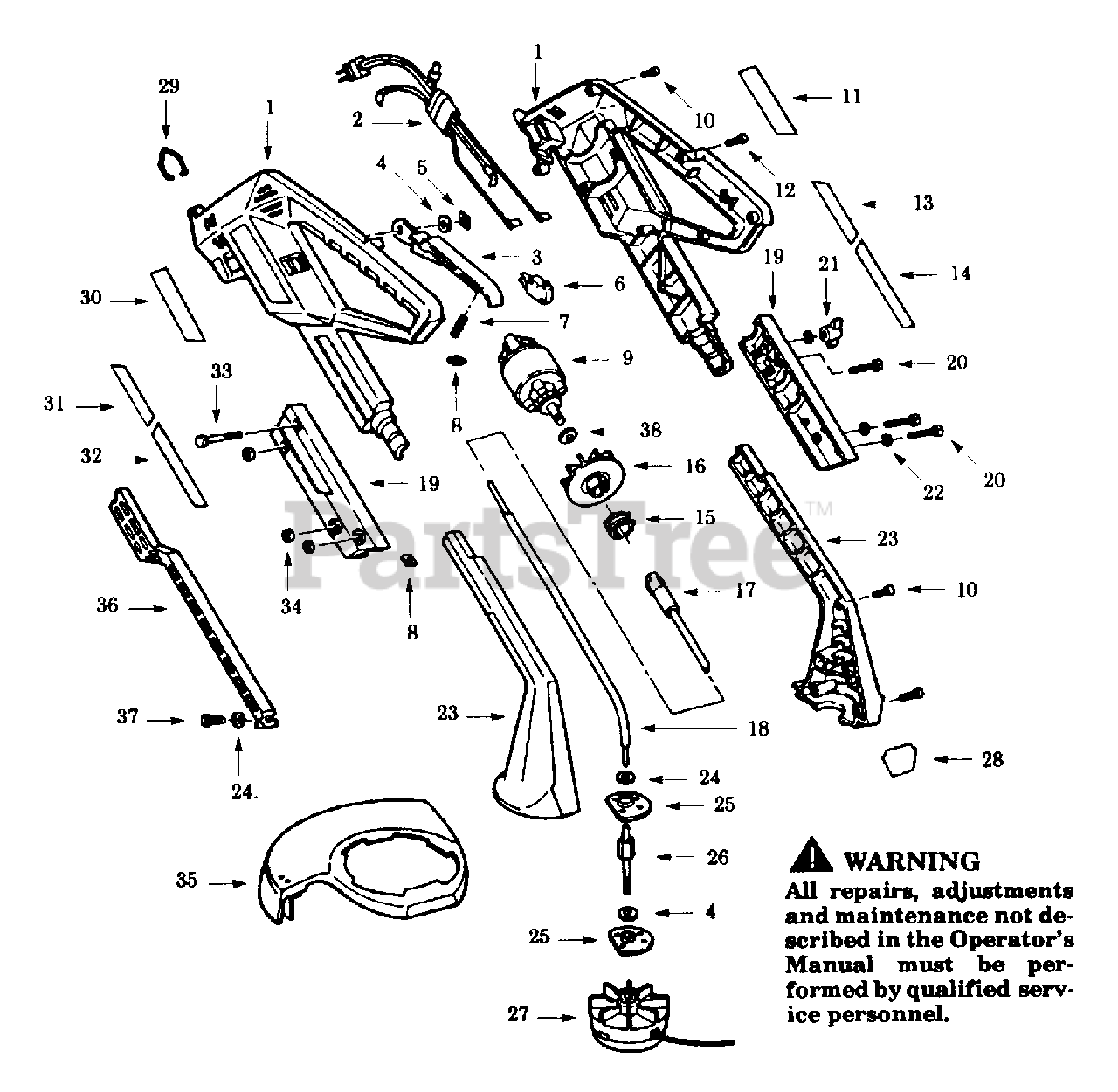

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534787902

Motor Hsg. Set

$27.99

$

Usually ships in 3-10 days

0

2

Poulan 534789301

Harness Ass'y.

$

$

Not available

3

Poulan 534788305

Trigger

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534228802

Washer

$

$

Not available

5

Poulan 534790800

Push Nut

$1.49

$

Usually ships in 3-10 days

0

6

Poulan 534789000

Switch

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 534790700

Trigger Spring

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534808100

Square Nut

$

$

Not available

9

Poulan 534768301

Motor Ass'y.

$91.99

$

Usually ships in 3-10 days

0

10

Poulan 534790300

Screw

$

$

Not available

11

Poulan 534798700

Warning Label (Not a serviceable part)

$

$

Not available

12

Poulan 534790301

Screw

$

$

Not available

13

Poulan 534909600

Model No. Label (L) (Not a serviceable part)

$

$

Not available

14

Poulan 534909800

Logo Label (L)

$

$

Not available

15

Poulan 534560103

Fan Clamp

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 534526802

Fan

$

$

Not available

17

Poulan 534788505

Flex Shaft Ass'y.

$14.99

$

Usually ships in 3-10 days

0

18

Poulan 534788902

Sleeve Tubing

$

$

Not available

19

Poulan 534788102

Housing Clamp

$

$

Not available

20

Poulan 534829601

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534903000

Knob

$

$

Not available

22

Poulan 534828701

Washer

$

$

Not available

23

Poulan 534788005

Spindle Housing

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 534636002

Washer

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534790600

Bearing Holder Disk

$

$

Not available

26

Poulan 534789900

Shaft Adapter

$

$

Not available

27

Poulan 534907306

Cutting Head Ass'y.

$

$

Not available

28

Poulan 534933400

Start-N-Feed Label (Not a serviceable part)

$

$

Not available

29

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534909100

Nameplate Label (Not a serviceable part)

$

$

Not available

31

Poulan 534909700

Model No. Label (R) (Not a serviceable part)

$

$

Not available

32

Poulan 534909300

Logo Label (R)

$

$

Not available

33

Poulan 534903100

Screw

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

35

Poulan 534790400

Guard Ass'y.

$

$

Not available

36

Poulan 534788405

Assist Handle

$8.99

$

Usually ships in 3-10 days

0

37

Poulan 534808200

Screw

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534886620

Operator Manual

Note: Not Shown.

$

$

Not available
