PT 140C-00 - Paramount Trimmer, Electric TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

Trimmer, Electric

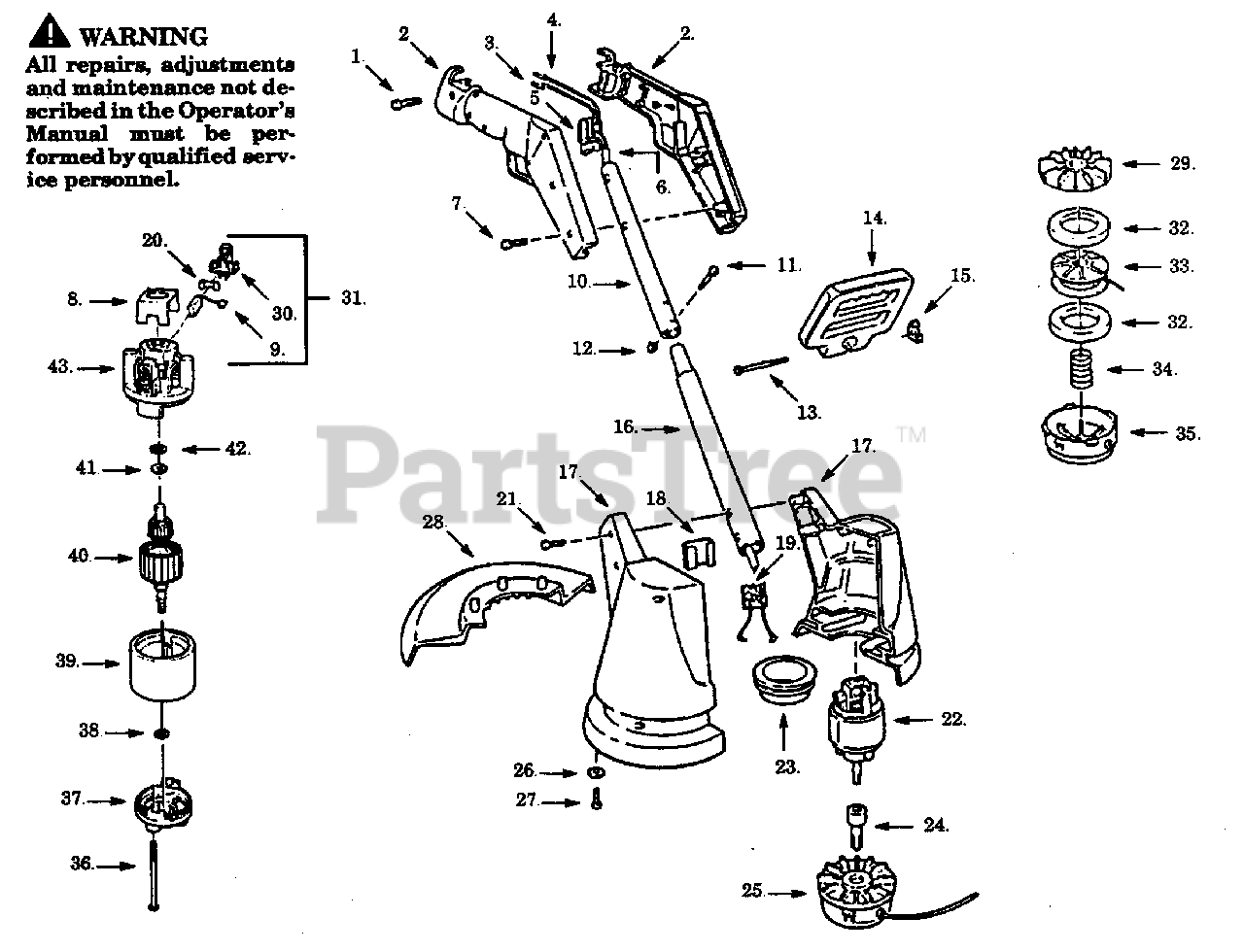

TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826502

Handle Set

$7.49

$

Usually ships in 3-10 days

0

3

Poulan 534827900

Wire Blade Ass'y.

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534825700

Wire Blade Ass'y.

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 534193001

Trigger Switch

$

$

Not available

6

Poulan 534829000

Harness

$14.99

$

Usually ships in 3-10 days

0

7

Poulan 534826801

Screw

$

$

Not available

8

Poulan 534226000

Insulator

$

$

Not available

9

Poulan 534227800

Carbon Brush

$

$

Not available

10

Poulan 534828100

Upper Tube

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 534829600

Screw

$

$

Not available

12

Poulan 534828300

Stop Nut

$

$

Not available

13

Poulan 534828401

Bolt

$

$

Not available

14

Poulan 534282705

Assist Handle

$

$

Not available

15

Poulan 534828500

Wing Nut

$

$

Not available

16

Poulan 534828200

Lower Tube

$

$

Not available

17

Poulan 534271692

Housing Set

$21.99

$

Usually ships in 3-10 days

0

18

Poulan 534337100

Insulator Shield

$

$

Not available

19

Poulan 534336600

P.C. Board Ass'y.

$

$

Not available

20

Poulan 534228000

Brush Spring

$

$

Not available

21

Poulan 534790300

Screw

$

$

Not available

22

Poulan 534768300

Motor Ass'y.

$

$

Not available

23

Poulan 534487245

Air Baffle

$

$

Not available

24

Poulan 534659505

Shaft Adapter

$

$

Not available

25

Poulan 534659435

Cutting Head Ass'y.

$

$

Not available

26

Poulan 534828700

Washer

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

28

Poulan 534379645

Guard & Blade Ass'y.

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 534487125

Rear Plate

$

$

Not available

30

Poulan 534227700

Brush Holder

$

$

Not available

31

Poulan 534450400

Brush Kit (Inc.9,20,30)

$

$

Not available

32

Poulan 534158602

Foam Pad

$

$

Not available

33

Poulan 952710508

Spool & Line

$

$

Not available

34

Poulan 534157401

Spring

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 534486475

Hub Ass'y.

$

$

Not available

36

Poulan 534228703

Screw

$

$

Not available

37

Poulan 534227601

Endbell Ass'y. (Drive)

$

$

Not available

38

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 534227004

Field Ass'y.

$27.99

$

Usually ships in 3-10 days

0

40

Poulan 534767700

Armature Ass'y.

$

$

Not available

41

Poulan 534228802

Washer

$

$

Not available

42

Poulan 534238903

Washer

$

$

Not available

43

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available
