PT 142C-00 - Paramount Trimmer, Electric TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

Trimmer, Electric

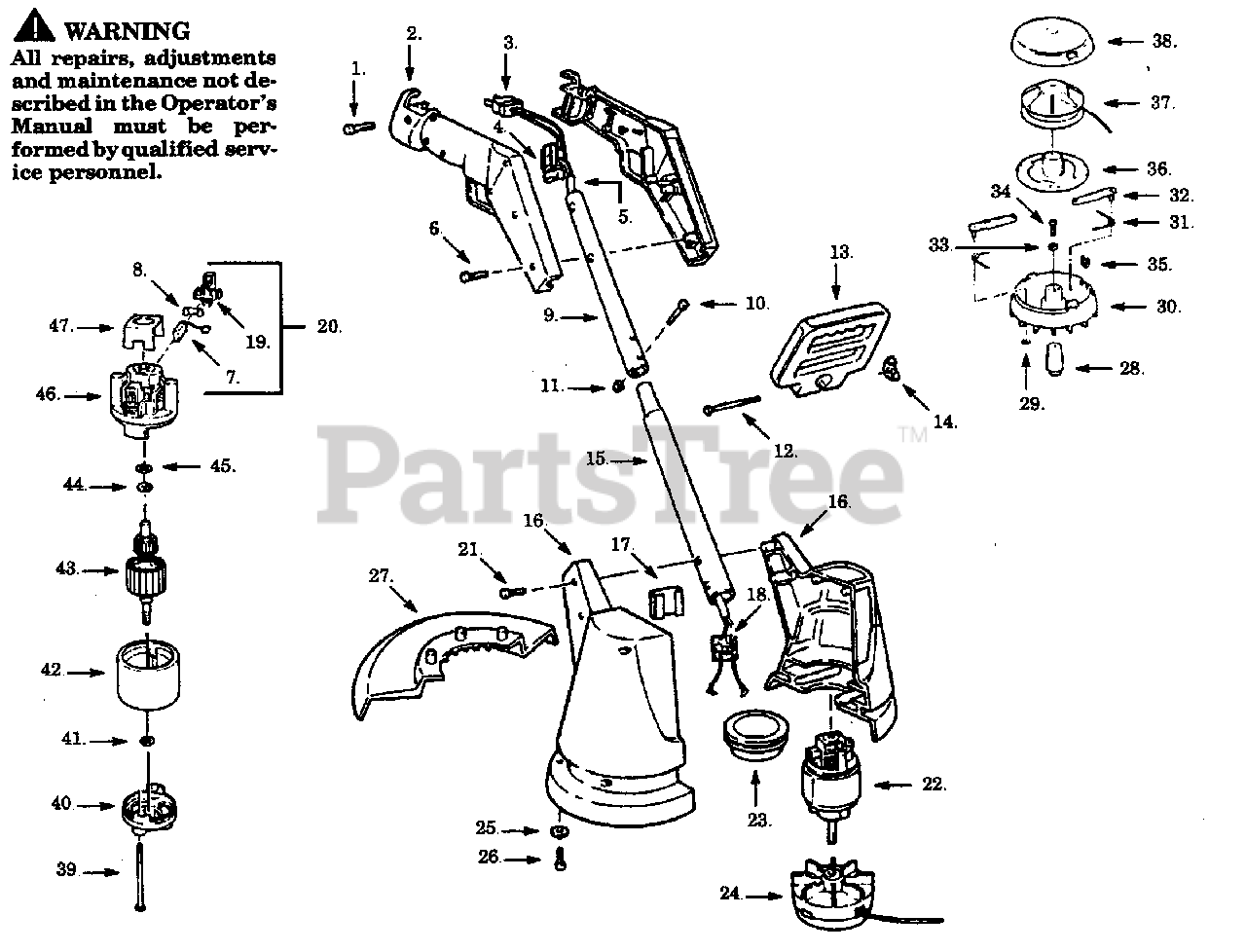

TRIMMER/BRUSHCUTTER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826522

Handle Set

$

$

Not available

3

Poulan 534936001

Plug

$

$

Not available

4

Poulan 534193001

Trigger Switch

$

$

Not available

5

Poulan 534829000

Harness Ass'y.

$14.99

$

Usually ships in 3-10 days

0

6

Poulan 534826801

Screw

$

$

Not available

7

Poulan 534227800

Carbon Brush

$

$

Not available

8

Poulan 534228000

Brush Spring

$

$

Not available

9

Poulan 534828100

Upper Tube

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 534829600

Screw

$

$

Not available

11

Poulan 534828300

Stop Nut

$

$

Not available

12

Poulan 534828401

Bolt

$

$

Not available

13

Poulan 534282705

Assist Handle

$

$

Not available

14

Poulan 534828500

Wing Nut

$

$

Not available

15

Poulan 534828200

Lower Tube

$

$

Not available

16

Poulan 534271692

Housing Set

$21.99

$

Usually ships in 3-10 days

0

17

Poulan 534954300

Insulator Shield

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534336600

P.C. Board Ass'y.

$

$

Not available

19

Poulan 534227700

Brush Holder

$

$

Not available

20

Poulan 534450400

Brush Kit (Inc. 7,8,19)

$

$

Not available

21

Poulan 534790300

Screw

$

$

Not available

22

Poulan 534768300

Motor Ass'y.

$

$

Not available

23

Poulan 534487245

Air Baffle

$

$

Not available

24

Poulan 534907306

Cutting Head Ass'y.

$

$

Not available

25

Poulan 534828700

Washer

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

27

Poulan 534379645

Guard & Blade Ass'y.

$10.99

$

Usually ships in 3-10 days

0

28

Poulan 534900300

Drive Adapter

$

$

Not available

29

Poulan 534400700

Push Nut

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 534014477

Housing Head

$

$

Not available

31

Poulan 534908500

Spring

$7.49

$

Usually ships in 3-10 days

0

32

Poulan 534899200

Arm

$

$

Not available

33

Poulan 534908700

Washer

$

$

Not available

34

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 534900200

Line Shield

$

$

Not available

36

Poulan 534014475

Cam

$

$

Not available

37

Poulan 952710511

Spool & Line

$

$

Not available

38

Poulan 534036644

Cover

$

$

Not available

39

Poulan 534228703

Screw

$

$

Not available

40

Poulan 534227601

Endbell Ass'y. (Drive)

$

$

Not available

41

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 534227004

Field Ass'y.

$27.99

$

Usually ships in 3-10 days

0

43

Poulan 534767700

Armature Ass'y.

$

$

Not available

44

Poulan 534228802

Washer

$

$

Not available

45

Poulan 534238903

Washer

$

$

Not available

46

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

47

Poulan 534226000

Insulator

$

$

Not available
