PT 162-01 - Paramount Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

Trimmer, Electric

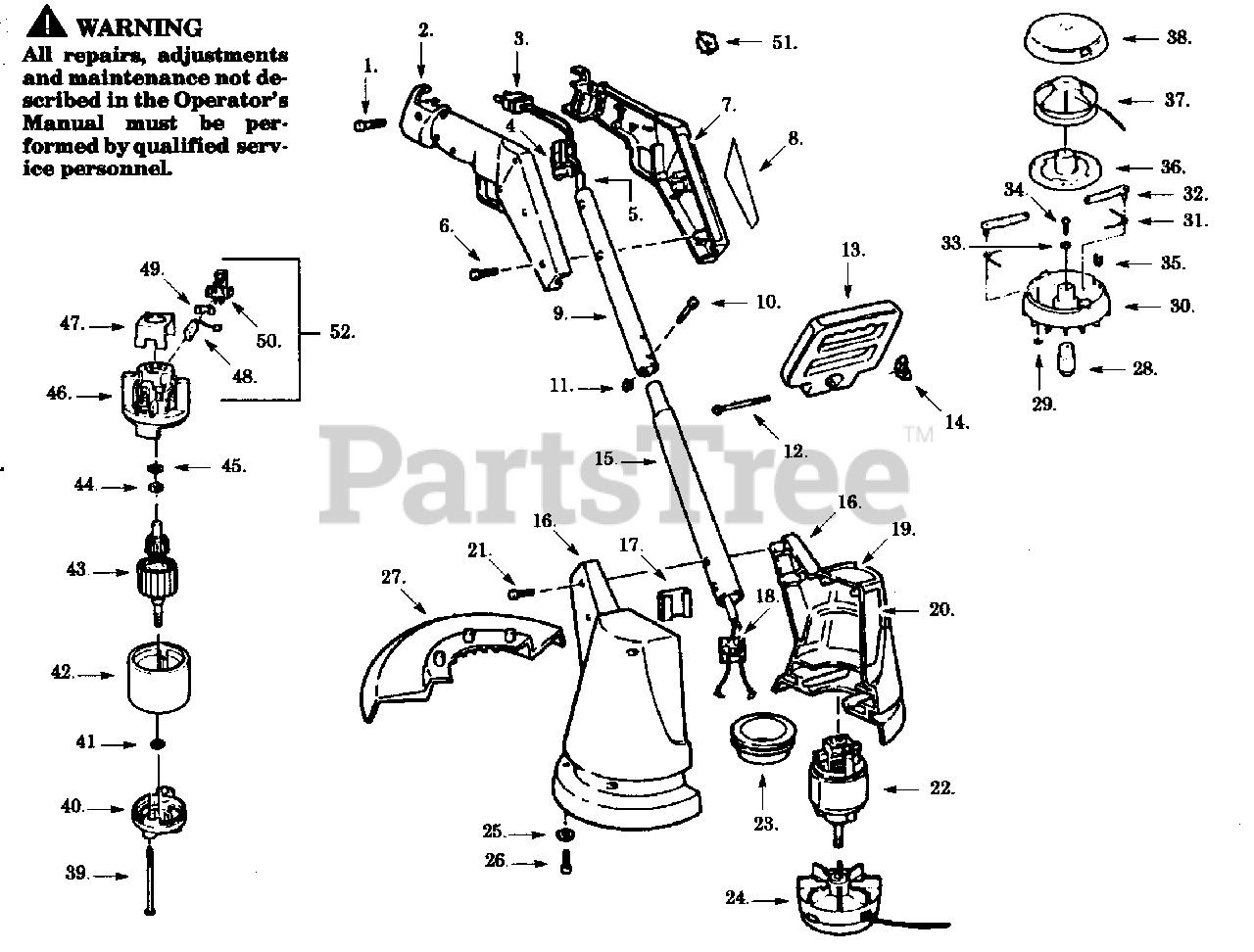

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534826802

Screw

$

$

Not available

2

Poulan 534826532

Handle Set

$

$

Not available

3

Poulan 534936001

Plug

$

$

Not available

4

Poulan 534193001

Trigger Switch

$

$

Not available

5

Poulan 534830300

Harness Ass'y.

$

$

Not available

6

Poulan 534826801

Screw

$

$

Not available

7

Poulan 534829900

Handle Label (Not a serviceable part)

$

$

Not available

8

Poulan 534924000

Warning Label

$

$

Not available

9

Poulan 534828100

Upper Tube

$

$

Not available

10

Poulan 534829600

Screw

$

$

Not available

11

Poulan 534828300

Stop Nut

$

$

Not available

12

Poulan 534828401

Bolt

$

$

Not available

13

Poulan 534282705

Assist Handle

$

$

Not available

14

Poulan 534828500

Wing Nut

$

$

Not available

15

Poulan 534828200

Lower Tube

$

$

Not available

16

Poulan 534271682

Housing Set

$

$

Not available

17

Poulan 534337100

Insulator Shield

$

$

Not available

18

Poulan 534787500

P.C. Board Ass'y.

$

$

Not available

19

Poulan 534924300

Housing Label (Not a serviceable part)

$

$

Not available

20

Poulan 534924100

Hsg. Front Label (Not a serviceable part)

$

$

Not available

21

Poulan 534790300

Screw

$

$

Not available

22

Poulan 534225020

Motor Ass'y.

$

$

Not available

23

Poulan 534487245

Air Baffle

$

$

Not available

24

Poulan 534907305

Cutting HeadAss'y.

$

$

Not available

25

Poulan 534828700

Washer

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 534826800

Screw

$3.49

$

In Stock, only 2 left!

0

27

Poulan 534379655

Guard & Blade Ass'y.

$

$

Not available

28

Poulan 534900301

Drive Adapter

$

$

Not available

29

Poulan 534400700

Push Nut

$

$

Not available

30

Poulan 534014477

Housing Head

$

$

Not available

31

Poulan 534908500

Spring

$

$

Not available

32

Poulan 534899200

Arm

$

$

Not available

33

Poulan 534908700

Washer

$

$

Not available

34

Poulan 534136401

Screw

$

$

Not available

35

Poulan 534900200

Line Shield

$

$

Not available

36

Poulan 534014475

Cam

$

$

Not available

37

Poulan 952710507

Spool & Line

$

$

Not available

38

Poulan 534036644

Cover

$

$

Not available

39

Poulan 534228700

Screw

$

$

Not available

40

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

41

Poulan 534228800

Washer

$

$

Not available

42

Poulan 534227001

Field Ass'y.

$

$

Not available

43

Poulan 534225120

Armature Ass'y.

$

$

Not available

44

Poulan 534228802

Washer

$

$

Not available

45

Poulan 534238903

Washer

$

$

Not available

46

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

47

Poulan 534226000

Insulator

$

$

Not available

48

Poulan 534227800

Carbon Brush

$

$

Not available

49

Poulan 534228000

Brush Spring

$

$

Not available

50

Poulan 534227700

Brush Holder

$

$

Not available

51

Poulan 534332500

Speed Switch

$

$

Not available

52

Poulan 534450400

Brush Kit (Incl. 48,49,50)

$

$

Not available

Poulan 534886710

Operator Manual

$

$

Not available
