PT 17 - Poulan String Trimmer Engine Parts Diagram

String Trimmer

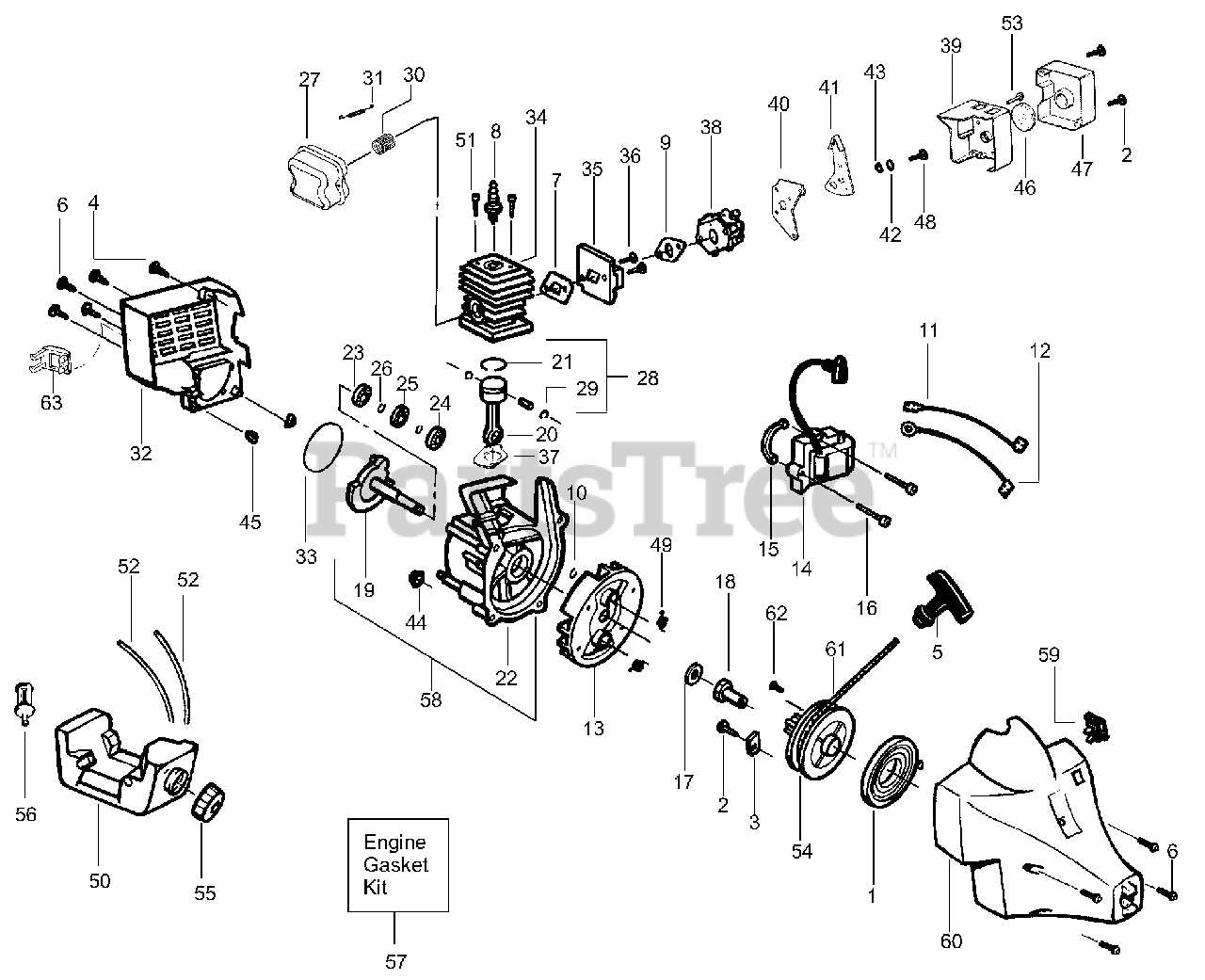

Engine Parts Diagram

  • Title

1

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

2

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530016226

Retainer Can

$

$

Not available

4

Poulan 530015880

Screw-Shrd/Fan Hsg.

$4.99

$

In Stock, Qty 8

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530019243

Gasket-Cylind./Carb.

$6.49

$

In Stock, Qty 6

0

8

Poulan 952030201

Spark Plug (RCJ 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

9

Poulan 530019194

Gasket-Carb.

$6.49

$

In Stock, Qty 5

0

10

Poulan 530015941

Retainer Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530049390

Assy-Lead Wire

$

$

Not available

12

Poulan 530049389

Assy-Ground Wire

$

$

Not available

13

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Poulan 530055160

Module-Ignition

$46.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw-Module

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

18

Poulan 530027953

Coupling-Coupling

$

$

Not available

19

Poulan 530054083

Assy-Crankshaft

$

$

Not available

20

Poulan 530069615

Assy-Connecting Rod

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530053565

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

22

Poulan 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl 23 - 26)

$26.99

$

Usually ships in 3-10 days

0

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530071390

Kit-Muffler

$18.99

$

Usually ships in 3-10 days

0

28

Poulan 530069987

Kit-Piston

Note: (Incl. 21, 29 & Pin)

$27.99

$

Usually ships in 3-10 days

0

29

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530071391

Kit-Spark Arrestor

$

$

Not available

31

Poulan 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530053320

Shroud-Rear

$8.99

$

Usually ships in 3-10 days

0

33

O-Ring/Gasket-C'case

Note: See "PT17 Gas Trimmer Service Reference" in literature; NEW PART NUMBER FOR THIS IPL

$

$

Not available

34

Poulan 530069757

Kit-Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

35

Poulan 530069991

Kit-Carb. Adaptor

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, Qty 6

0

38

Poulan 530069754

Kit-Carburetor Ass'y

Note: (Incls. Limiter Cap)

$

$

Not available

39

Poulan 530054450

Air Box

$

$

Not available

40

Poulan 530047914

Choke Plate Mounting

$

$

Not available

41

Poulan 530047916

Choke Lever

$

$

Not available

42

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

43

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

44

Poulan 530036792

Isolator-C'Case

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

46

Poulan 530047932

Foam-Air Filter

$4.99

$

In Stock, Qty 13

0

47

Poulan 530049095

Cover-Air Filter

$

$

Not available

48

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

49

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

50

Poulan 530049299

Assy-Fuel Tank

Note: (Incl. 55, 56, 70 & 71)

$

$

Not available

51

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

52

Poulan 530069599

Kit-Fuel Line

Note: (Incls. Vent Line)

$7.49

$

In Stock, Qty 20+

0

53

Poulan 530015557

Screw

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 62)

$7.49

$

In Stock, Qty 12

0

55

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

56

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530071253

Kit-Engine Gasket

Note: (Incl. 7, 9, 33, 37)

$

$

Not available

58

Poulan 530014729

Assy-C'case & C'shaft

Note: (Incl. 10, 19, 22 - 26)

$

$

Not available

59

Poulan 530038114

Switch-Momentary
(Superseded to 530071356)

$8.99

$

Usually ships in 3-10 days

0

60

Poulan 530054420

Assy-Fan Housing

$24.99

$

Usually ships in 3-10 days

0

61

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

62

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

63

Poulan 530054536

Guard-Muffler

$

$

Not available
